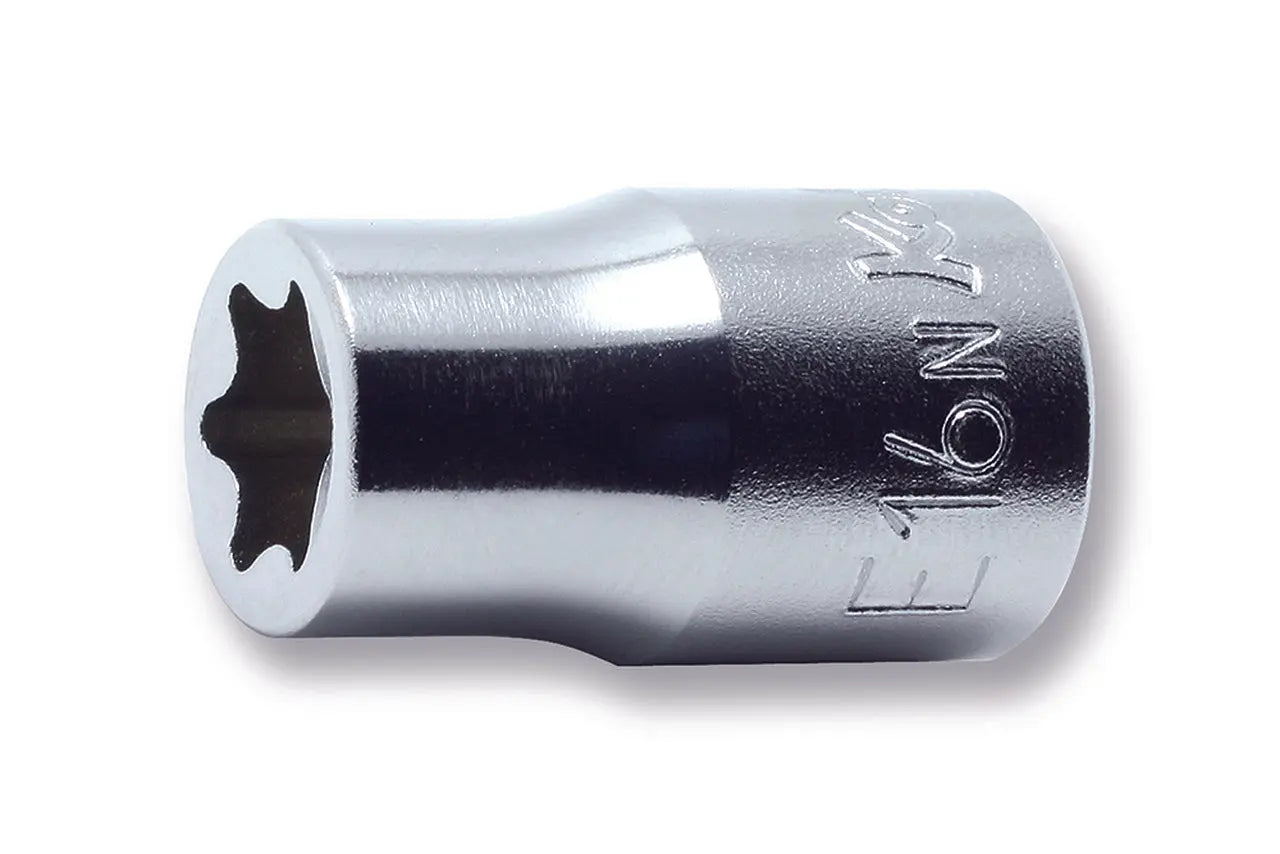

TORX® Socket for Nut and low profile bolt
Shallow Chamfer on Socket Opening
A: Flywheel bolt MR20 NISSAN: 4425-E20N
B: Cam sprocket FA20 for TOYOTA/SUBARU: 4425-E16N
C: Connecting rod bolt FA20 for Toyota/Subaru 4425-E14N
TORX® is recognized as one of the three most efficient fastening systems because of their ability to transfer greater torque, reduce load and virtually eliminate tool slippage.
| Input Drive Size: |
1/2" |
| Drive shape: |
Square |
| Length: |
36mm |
| Type: |
Low Profile TORX® Socket |
| Output Size: |
E10N |
| Output Shape: |
TORX®td>
|

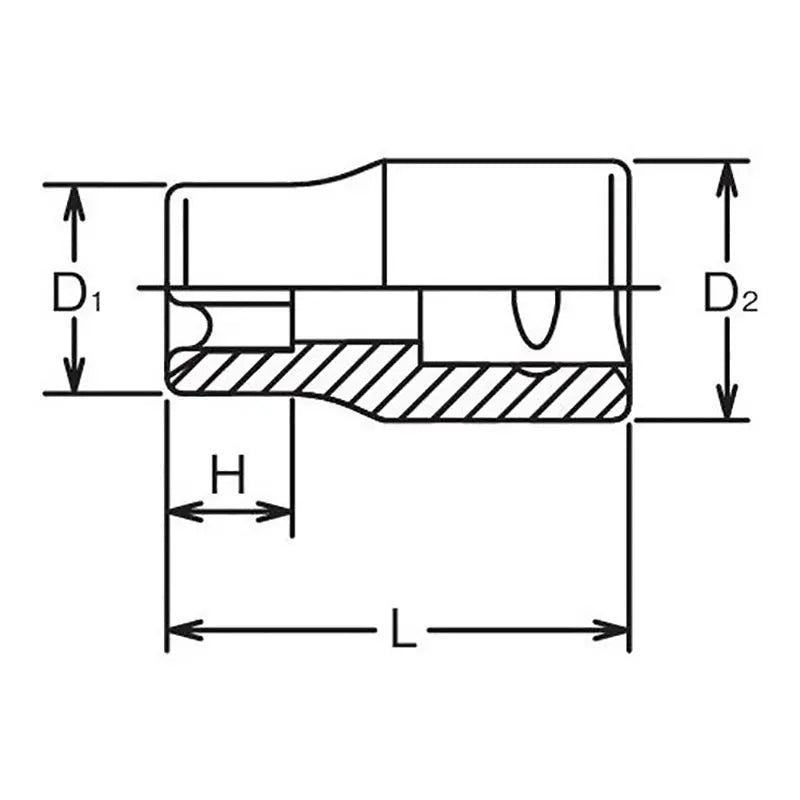

Product Dimension (Refer Line Drawing Image):
| D1 Size: |
13.2mm |
| D2 Size: |
21mm |
| H Size: |
8.2mm |
| L Size: |
36mm |
