24MM HEX DRIVE, STUDSETTER
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: |
24mm |
| Drive Shape: |
Hex |
| Length: |
61mm |
| Type: |
Stud Setter for Construction Site
|
| Output Size: |
M22 x 2.5 |

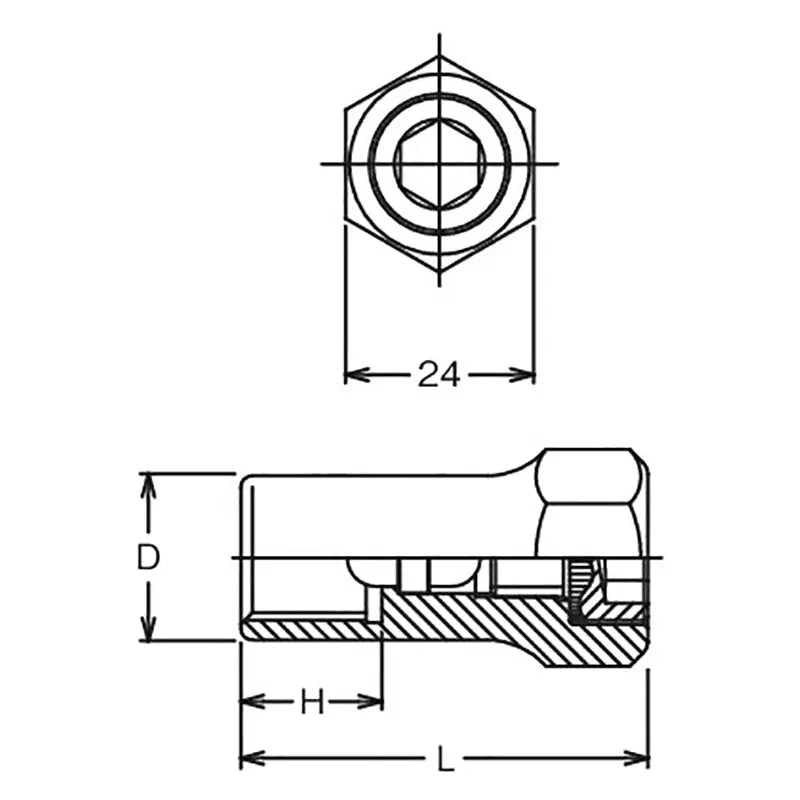

Product Dimension (Refer Line Drawing Image):
| D Size: |
26.5mm |
| H Size: |
27mm |
| L Size: |
61mm |
