NUT GRIP®,1/2 drive, Standard Length, Chrome Hand Sockets. NUT GRIP® is Ko-ken's special design for non-magnetic nuts/bolts to be held firmly in a TORX® socket. The design consists of two balls held in place by a spring steel ring.
Our NUT GRIP® sockets are unique to Ko-ken and truly a revolutionary way of approaching this type of socket. Our fastener holds nuts and bolts in place without the use of magnets. Our system is built with a coil spring and ball bearings on opposing flats. When a nut or bolt is in the socket the ball bearings push out on the springs holding the nut/bolt in place.
TORX®® is recognized as one of the three most efficient fastening systems because of their ability to transfer greater torque, reduce load and virtually eliminate tool slippage.
| Input Drive Size: |
1/2" |
| Drive Shape: |
Square |
| Length: |
140mm |
| Type: |
TORX®® Extra Deep Socket |
| Output Size: |
E8 |
| Opening: |
Nut Grip®
|

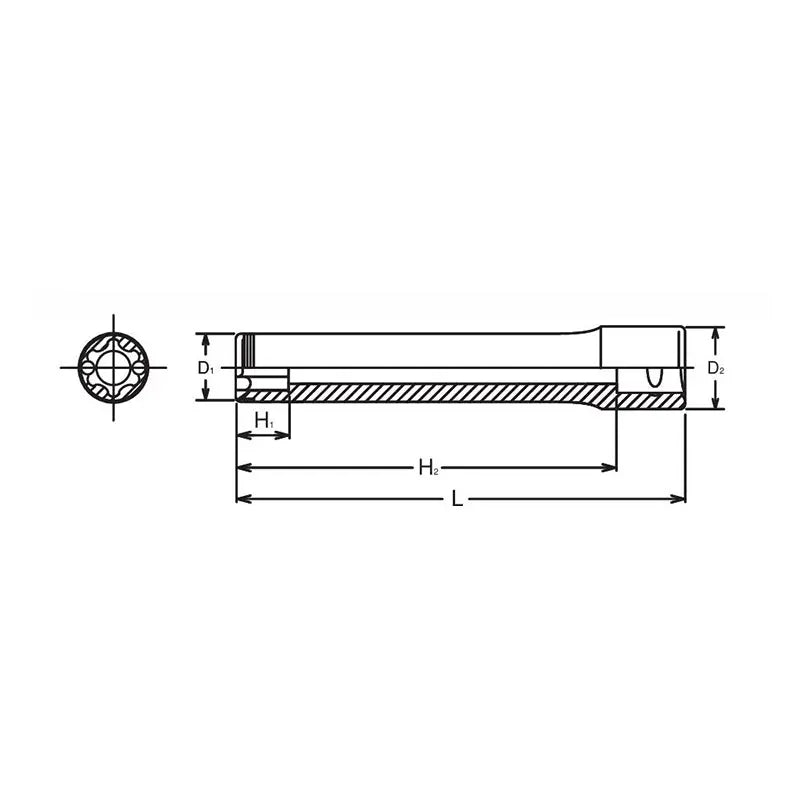

Product Dimension (Refer Line Drawing Image):
| D1 Size: |
10.7mm |
| D2 Size: |
21mm |
| H1 Size: |
7mm |
| H2 Size: |
122mm |
| L Size: |
140mm |
