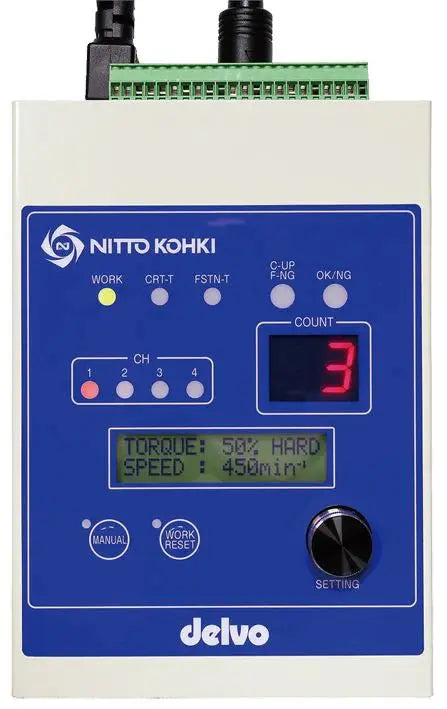

Nitto Kohki Controller DCC0101X-AZN NPN Output - DCC0101X-AZN
Model: DCC0101X-AZN
Input Voltage: 100–240 V AC, 50/60 Hz
Operation Channel Function: Torque and speed setting in 4-channel memory
Can switch to any operation channel
Count Function: Tracks screws fastened
Workpiece detector can be incorporated
External Start-up Control Function: Start-up control can be enabled by external input signal
Input Signal Method: Photocoupler input
(24 V DC drive (5 mA/1 input), respond to PNP output)
Output Signal Method: Photocoupler output
(30 V DC or less, 30 mA/a output or less, output method)
Service Power Source: 24 V DC (Maximum capacity 200 mA)
Power consumption:
• When on standby : 20 W
• During electric screwdriver rotation (rated): 30 W
Mass: 1100 g [2.4 lbs]
Power cord (optional) (*): DLW9220 / DLW9240 / DLW9250
(*): The power cord is sold separately.
Ask us for the required power cord when ordering.
