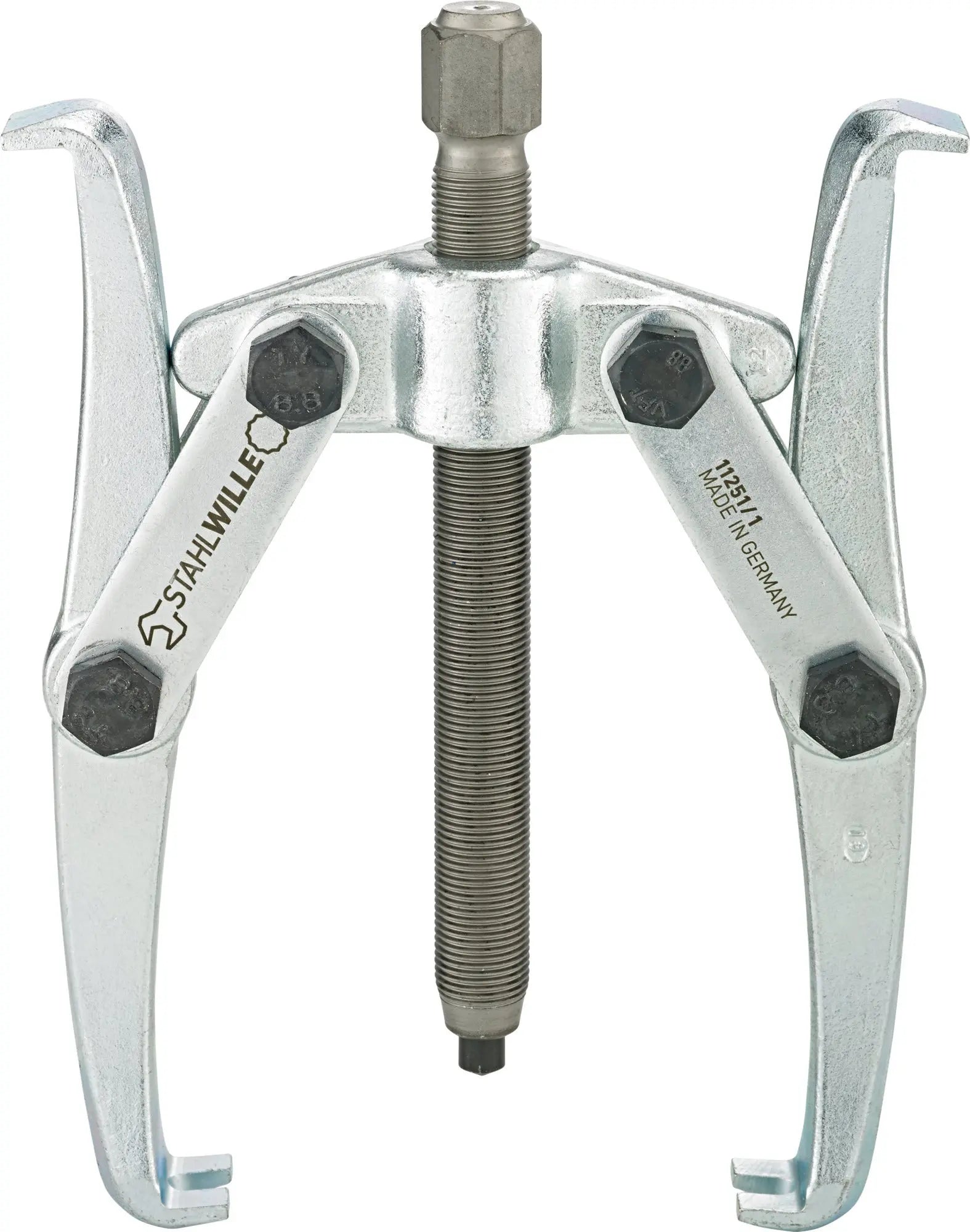

Stahlwille 2-Arm Puller, 2, 19mm - ST 71025102
The 2-Arm Puller is a versatile and reliable tool designed for the efficient removal of gears, pulleys, bearings, and other press-fitted components. Featuring two sturdy arms that provide a firm and secure grip, it ensures even distribution of force to prevent damage to delicate parts. The puller is made from high-quality, durable materials, offering superior strength and longevity. Its adjustable design allows for a wide range of applications in automotive, industrial, and maintenance tasks.
Features:
- Trigger hooks can be used on both sides
- Nitride spindle, no oiling necessary - maintenance-free
- Self-acting pressing of the puller hooks
- Accurate profile ribs and precise guide rails give the crosshead outstanding bending rigidity
- The nitride surface of the pressure spindle provides excellent sliding properties and does not require additional oiling
- Two-armed
- For pulling off gears, pulleys, ball bearings etc
- Nitride spindle, no oiling necessary - maintenance-free
- Pull-off hooks can be used on both sides:
- One end of the hook is narrow (20 mm wide) for tight spaces
- The other end of the hook is wide (24 mm wide) with a slot (8 mm), so that discs or gears can be pulled off with the aid of 8 mm screws
- For increased safety - Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality
- Adapted access geometry - Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes

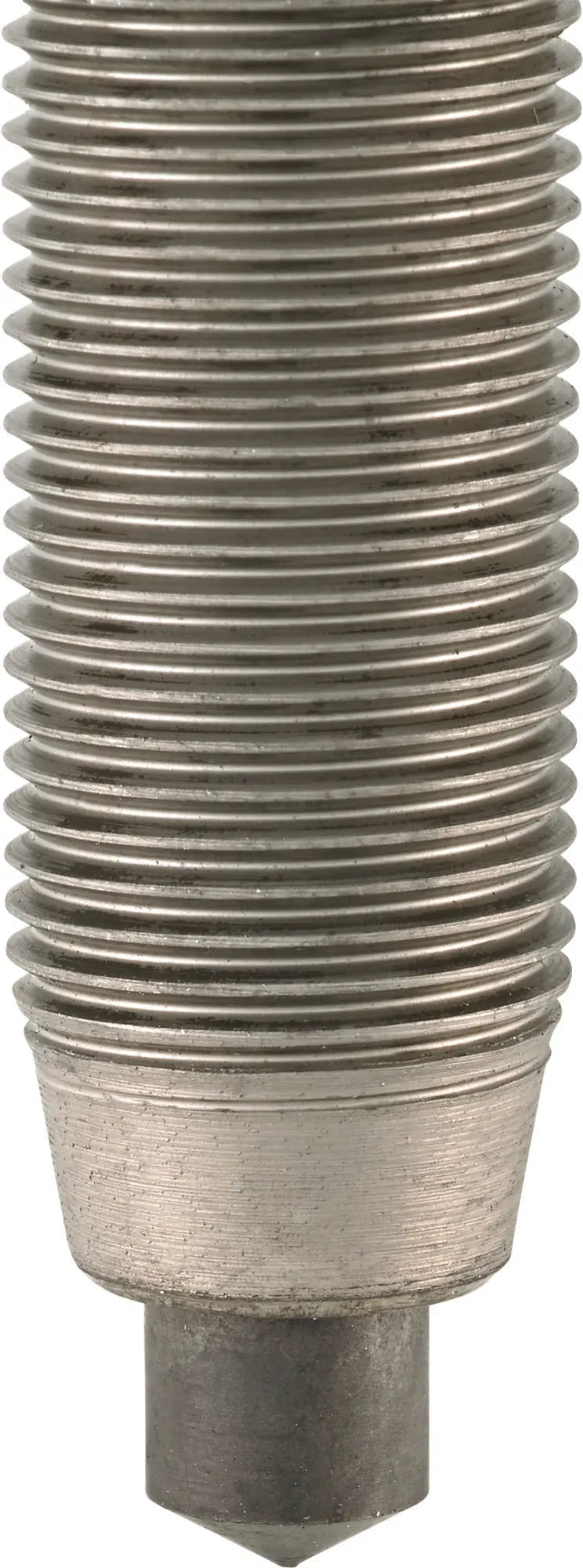

- Reliable sliding properties - The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling
- Protection against damage - The centering tip is freely rotating - to protect the shafts from damage
- Sturdy design - High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways

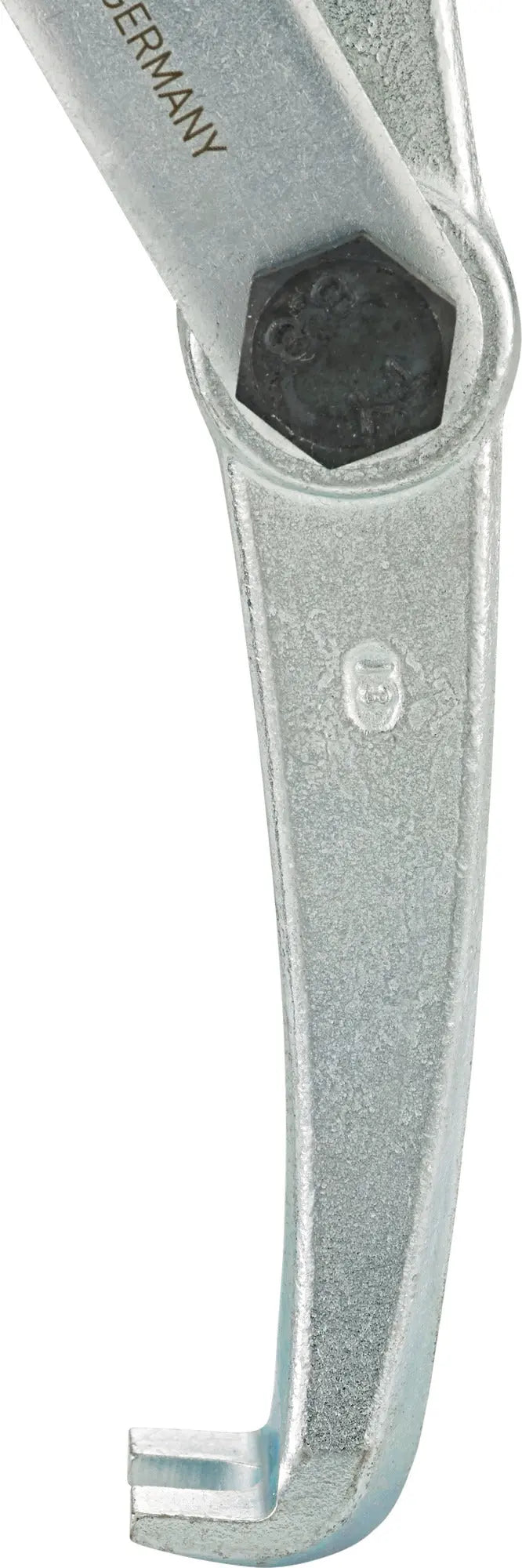

- Flexible puller hooks - The two-sided puller hooks can be used flexibly because they have different designs at both ends. The narrow side (20 mm) is perfect for tight spaces, while the wide side (24 mm) has an 8 mm slot that allows effortless removal of washers or gears with 8 mm bolts
Specifications:
- Clamping Depth: 170mm
- Clamping Width: 220mm
- External Hexagon Drive: 19mm
- Hook Width: 20/24mm
- Number of Hook: 2
- Output Size: 2
- Spindle Thread Size: M18 x 1.5 x 170
- Maximum Load: 5 t
- Overall Weight: 5.07 lbs

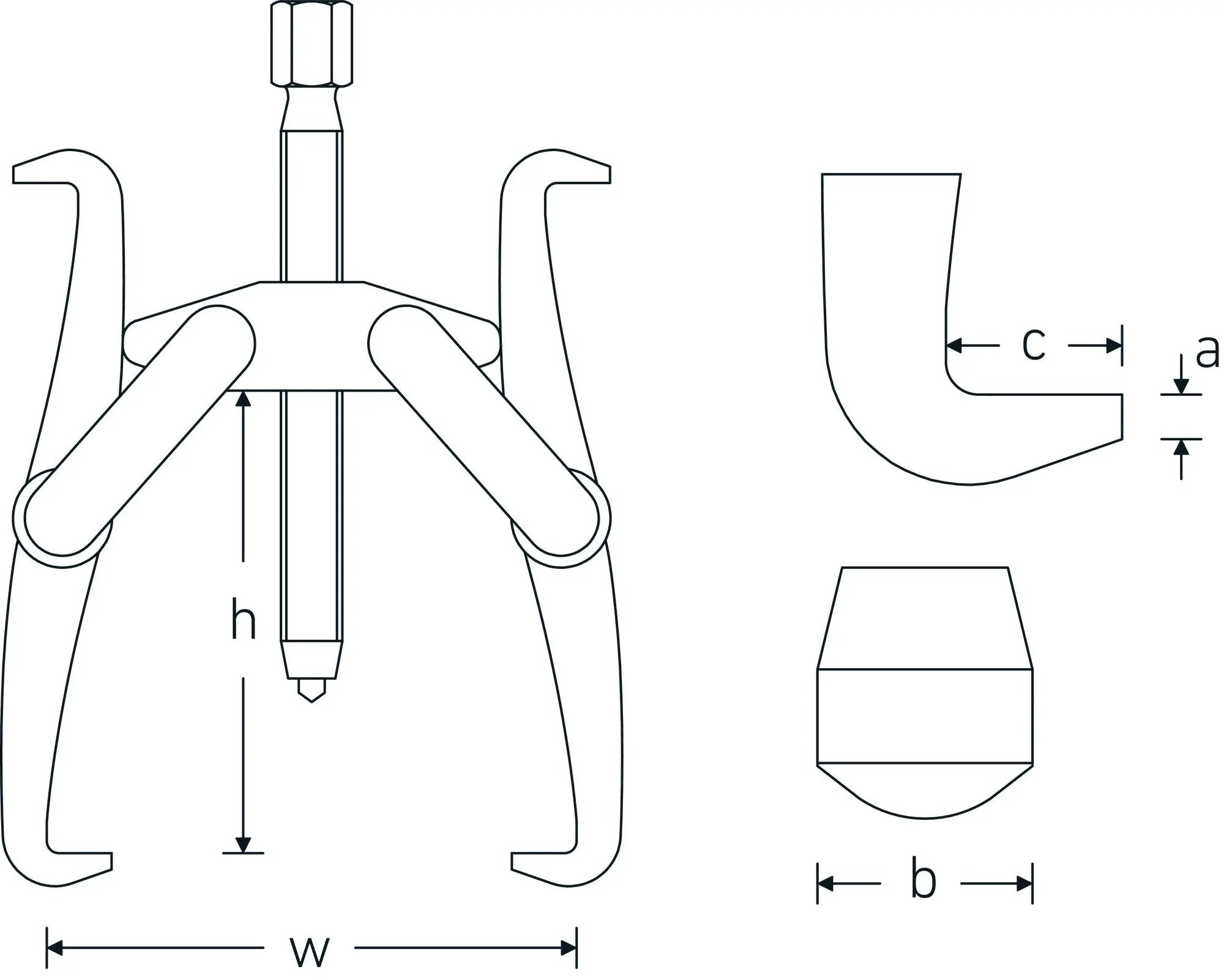

Product Dimension (Refer Image):
- Hook Base Tip Thickness (a): 3mm
- Hook Base Width (b): 24mm
- Hook Base Depth (c): 12mm
