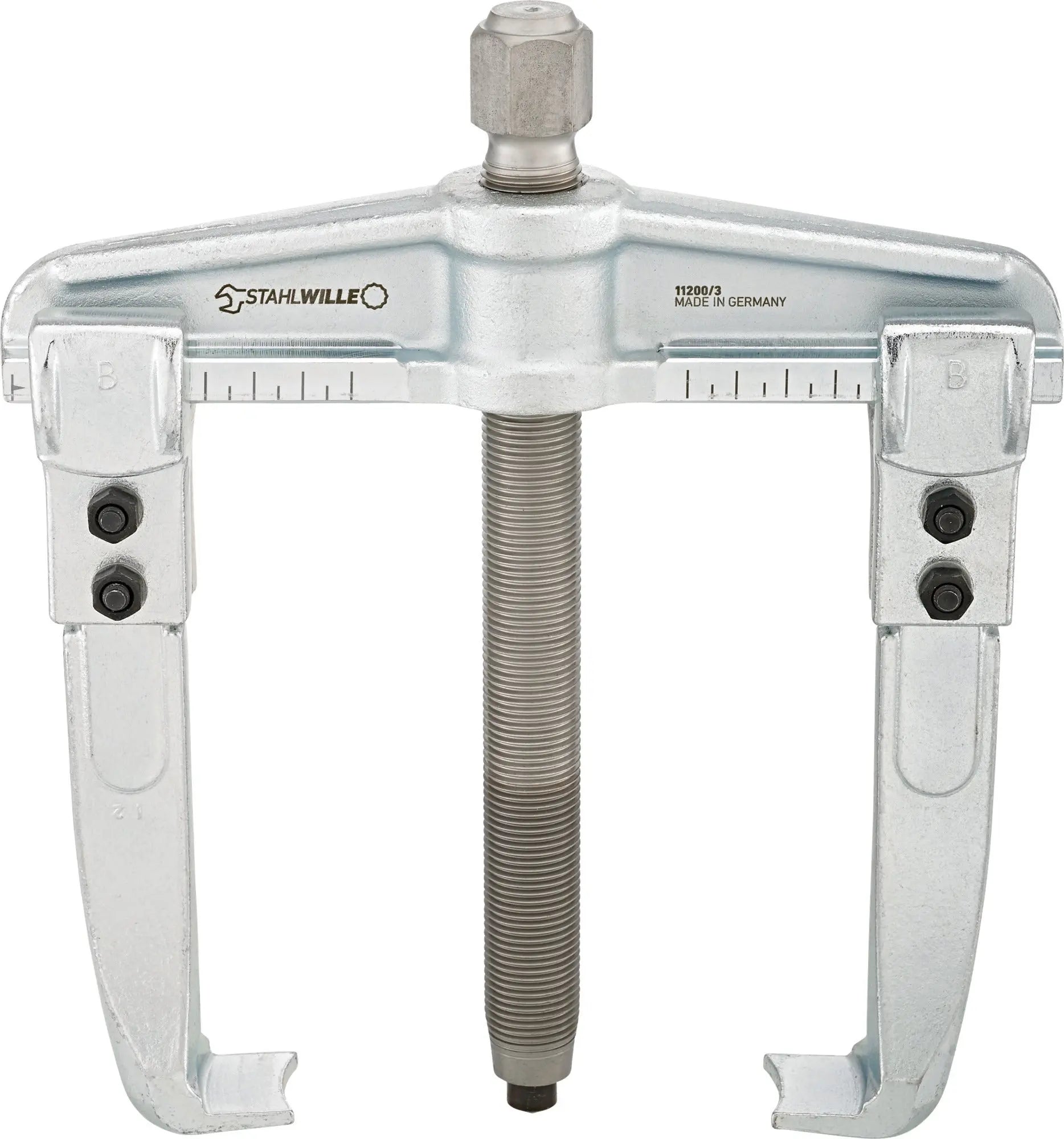

Stahlwille 2-Arm Puller, 3, 22mm - ST 71020003
The 2-Arm Puller is a versatile and reliable tool designed for the efficient removal of gears, pulleys, bearings, and other press-fitted components. Featuring two sturdy arms that provide a firm and secure grip, it ensures even distribution of force to prevent damage to delicate parts. The puller is made from high-quality, durable materials, offering superior strength and longevity. Its adjustable design allows for a wide range of applications in automotive, industrial, and maintenance tasks.
Features:
- The adjustable extractor hooks make universal use as an external or internal extractor possible
- For quick and safe removal of gears, ball bearings, pulleys and for extracting the outer races of ball bearings and bushings from drilled holes
- The adjustment scale on the crosshead enables precise and even adjustment of the pullers
- The nitride surface of the pressure spindle provides excellent sliding properties and does not require additional oiling
- The adjustment scale on the crosshead enables precise and even adjustment of the pullers
- Two-armed
- Sliding, constantly parallel extractor hooks
- For pulling off gears, ball bearings, pulleys and similar parts from a shaft or axle
- For pulling ball bearings, ball bearing outer races and sockets out of drilled holes
- Can be used as an external or internal extracting device by switching the hooks
- Nitride spindle, no oiling required, maintenance-free
- Adjustment scale for uniform adjustment of the extractor hooks
- Sturdy design, galvanized
- Flexible repositioning function - A three-legged puller is generally preferable to a two-legged one provided there is sufficient space because it distributes the pulling forces more evenly
- Reliable sliding properties - The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling

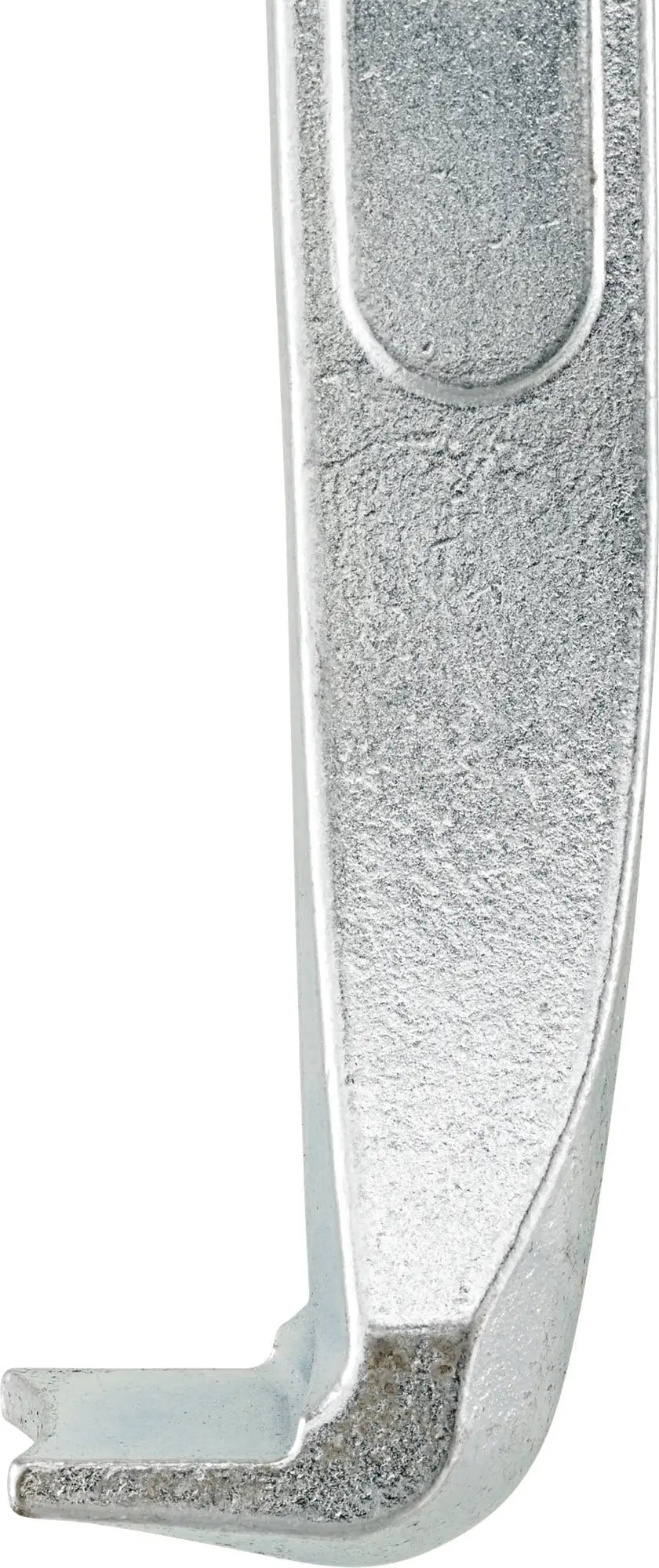

- Adapted access geometry - Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes
- Sturdy design - High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways

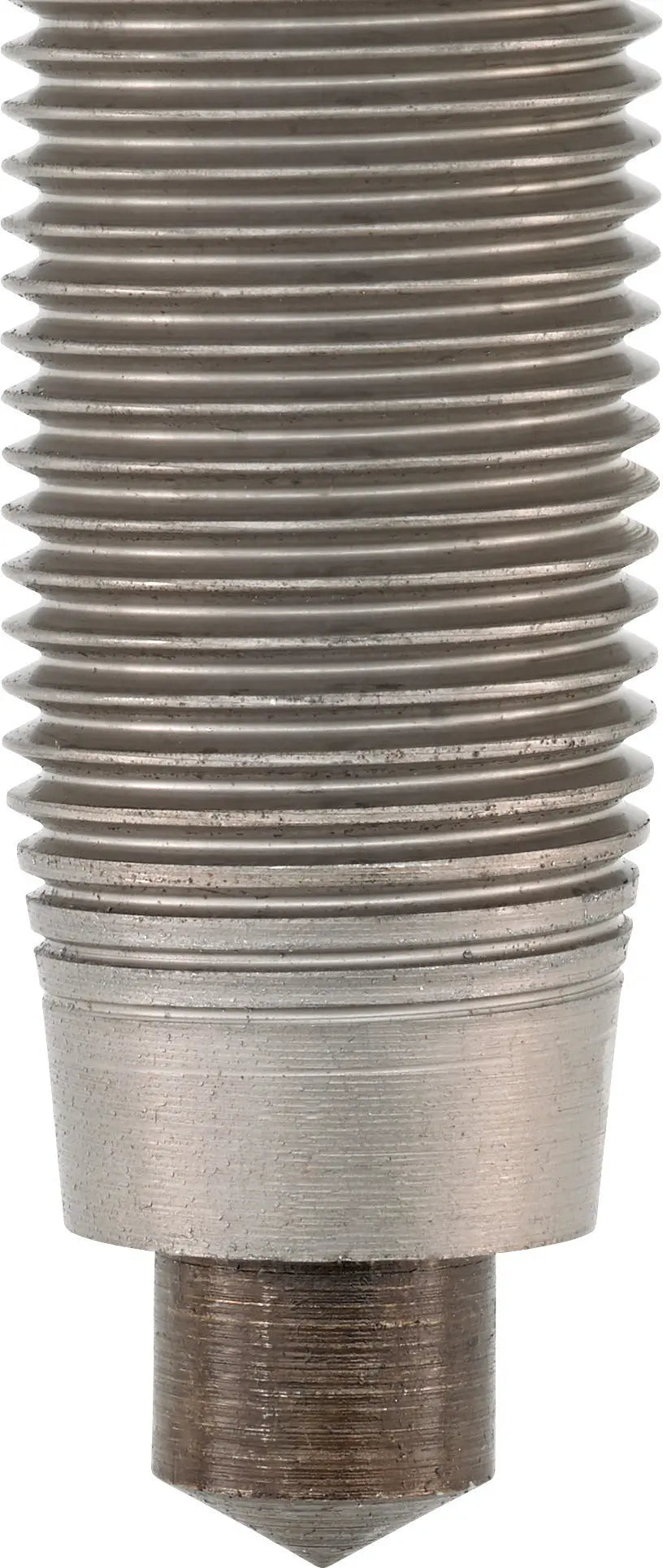

- Protection against damage - The centering tip is freely rotating - to protect the shafts from damage
- For increased safety - Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality
Specifications:
- Clamping Depth: 150mm
- Maximum External Clamping Width: 160mm
- External Hexagon Drive: 22mm
- Maximum Internal Span: 220mm
- Minimum Internal Span: 80mm
- Number of Hook: 2
- Output Size: 3
- Spindle Thread Size: G 1/2 x 210
- Maximum Load: 5 t
- Overall Weight: 6.46 lbs

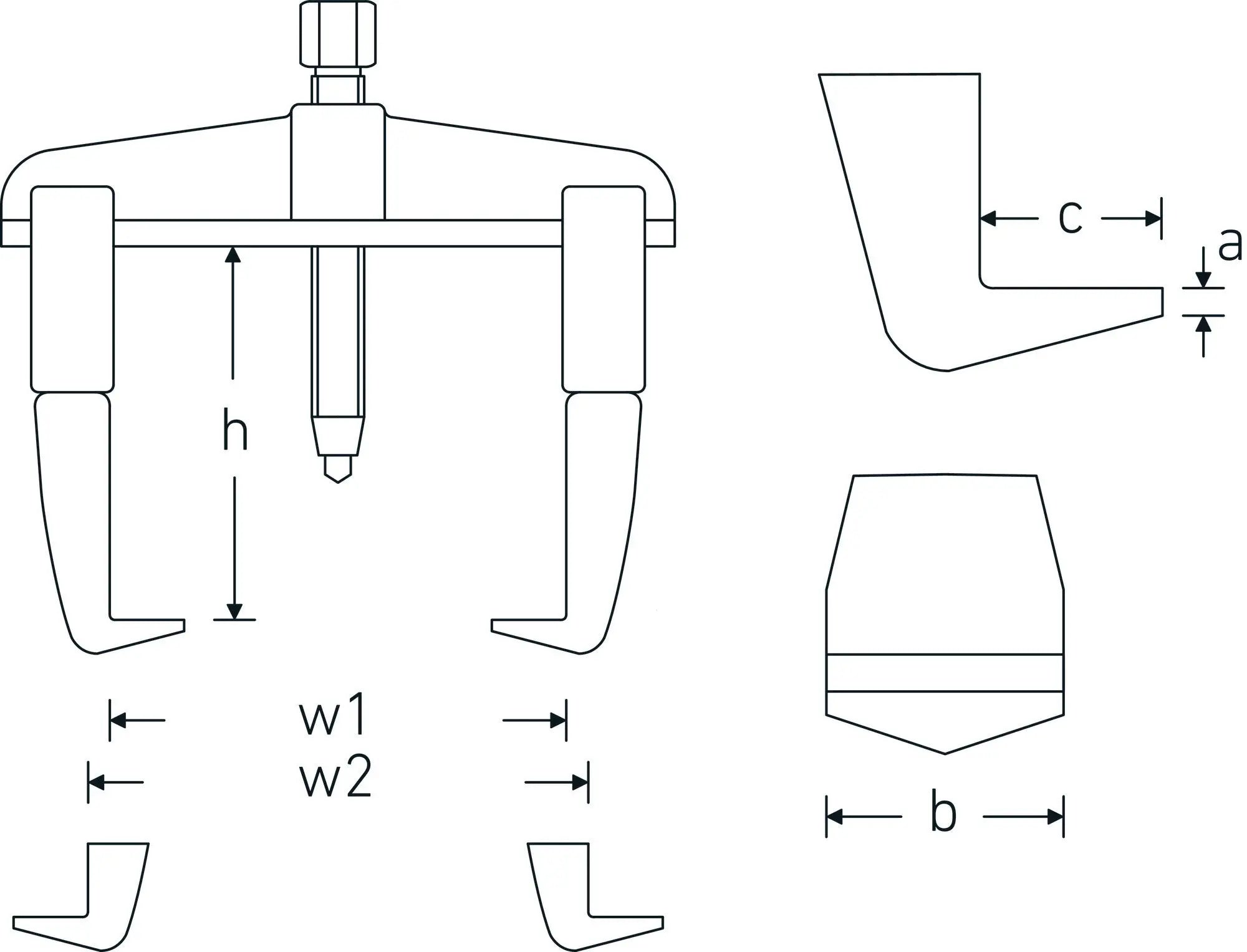

Product Dimension (Refer Image):
- Hook Base Tip Thickness (a): 4mm
- Hook Base Width (b): 30mm
- Hook Base Depth (c): 18mm
