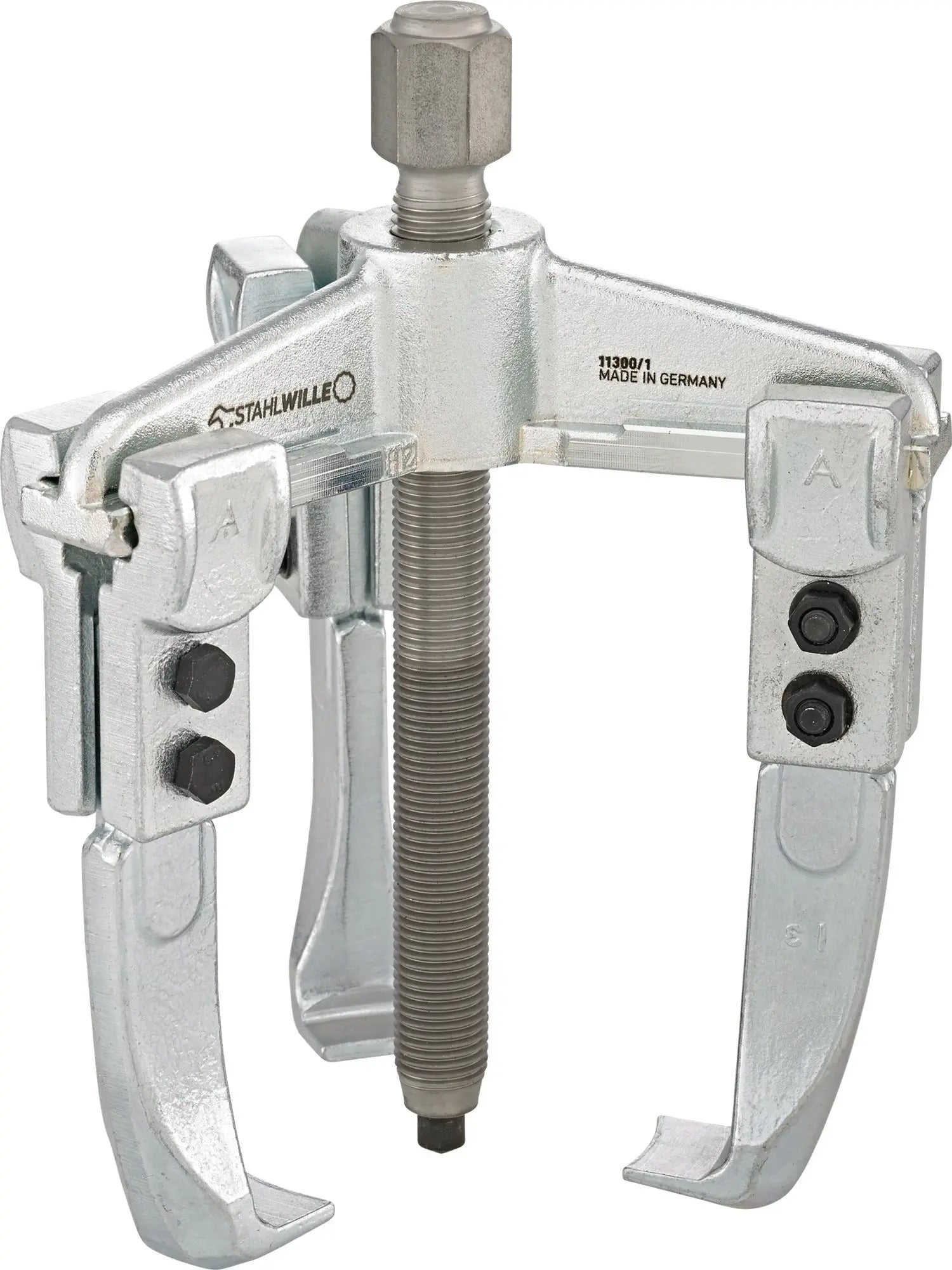

Stahlwille 3-Arm Puller, 1, 17mm - ST 71030001

The 3-Arm Puller is a robust and efficient tool designed for the safe and precise removal of gears, bearings, pulleys, and other press-fitted components. Featuring three evenly spaced arms, it provides superior stability and a secure grip, ensuring balanced force distribution to prevent damage to components. Constructed from high-quality, durable materials, this puller offers exceptional strength and longevity for heavy-duty applications. Its adjustable design accommodates various sizes, making it a versatile choice for automotive, industrial, and maintenance tasks.

Features:

• For quick and reliable removal of gears, ball bearings, fan belts and for extracting the outer rings of ball bearings and bushings from drilled holes
• Even load distribution over 3 extractor hooks provides a secure hold and centered extraction
• The adjustable extractor hooks make for universal use as both an external or internal extractor possible
• Accurate profile ribs and precise guide rails give the crosshead outstanding bending rigidity
• The nitride surface of the pressure spindle provides excellent sliding properties and requires no additional oiling
• Three-armed
• Reversible hooks for use as external and internal pullers
• For removing gears, ball bearings, pulleys and similar parts from a shaft or axle
• For removing ball bearings, ball bearing outer rings and bushes from bores
• Nitride spindle, no oiling necessary, maintenance-free
• Sturdy design, galvanized
• Flexible repositioning function - A three-legged puller is generally preferable to a two-legged one provided there is sufficient space because it distributes the pulling forces more evenly

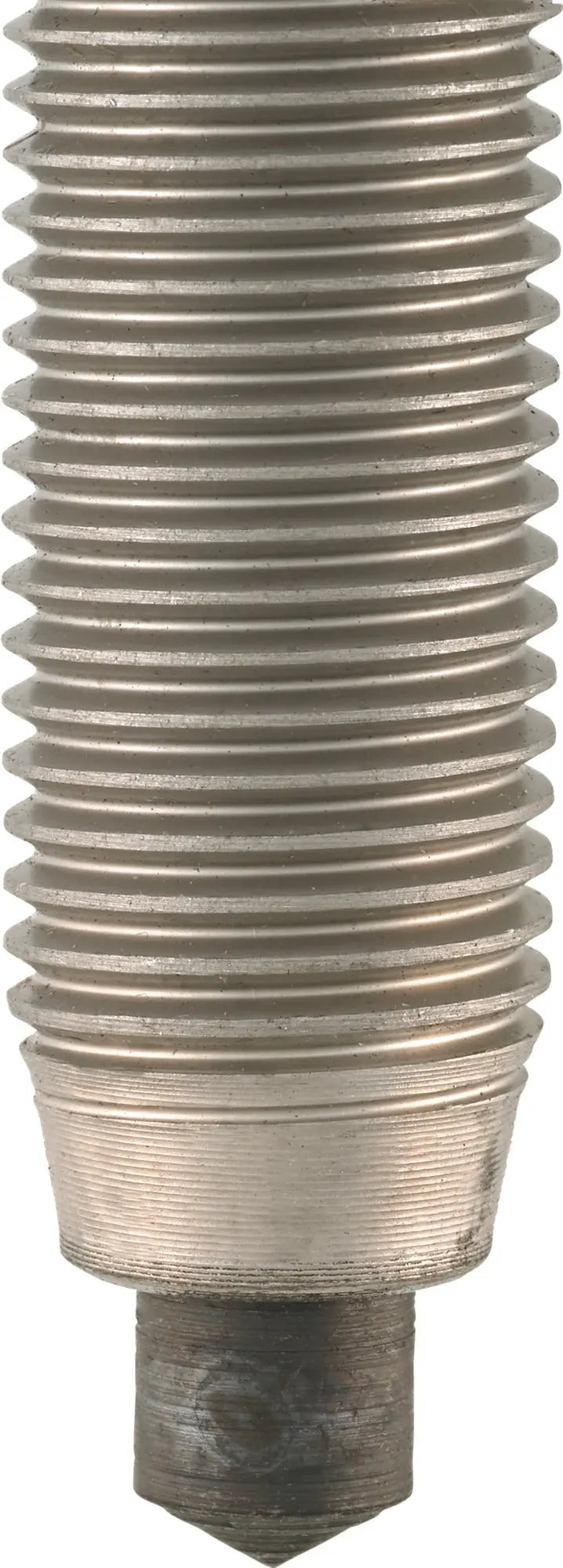

• Reliable sliding properties - The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling

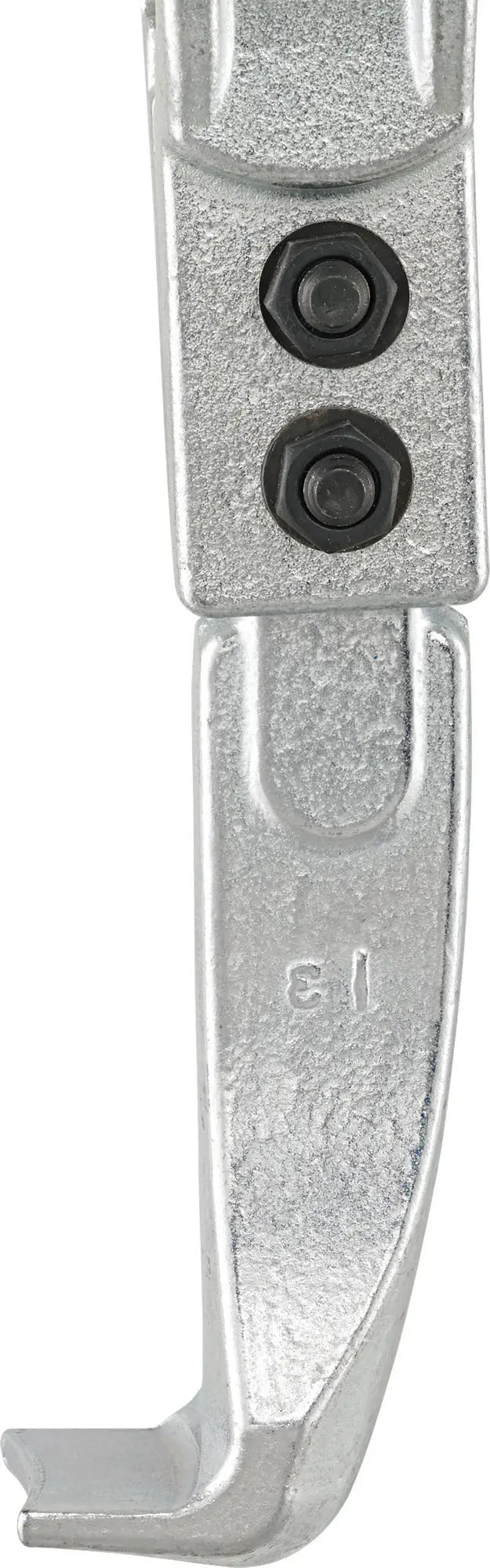

• Adapted access geometry - Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes
• Sturdy design - High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways
• Protection against damage - The centering tip is freely rotating - to protect the shafts from damage
• For increased safety - Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality

Specifications:

• Clamping Depth: 100mm
• Maximum External Clamping Width: 90mm
• External Hexagon Drive: 17mm
• Maximum Internal Span: 140mm
• Minimum Internal Span: 70mm
• Number of Hook: 3
• Output Size: 1
• Spindle Thread Size: M14 x 1.5 x 140
• Maximum Load: 3 t
• Overall Weight: 3.09 lbs

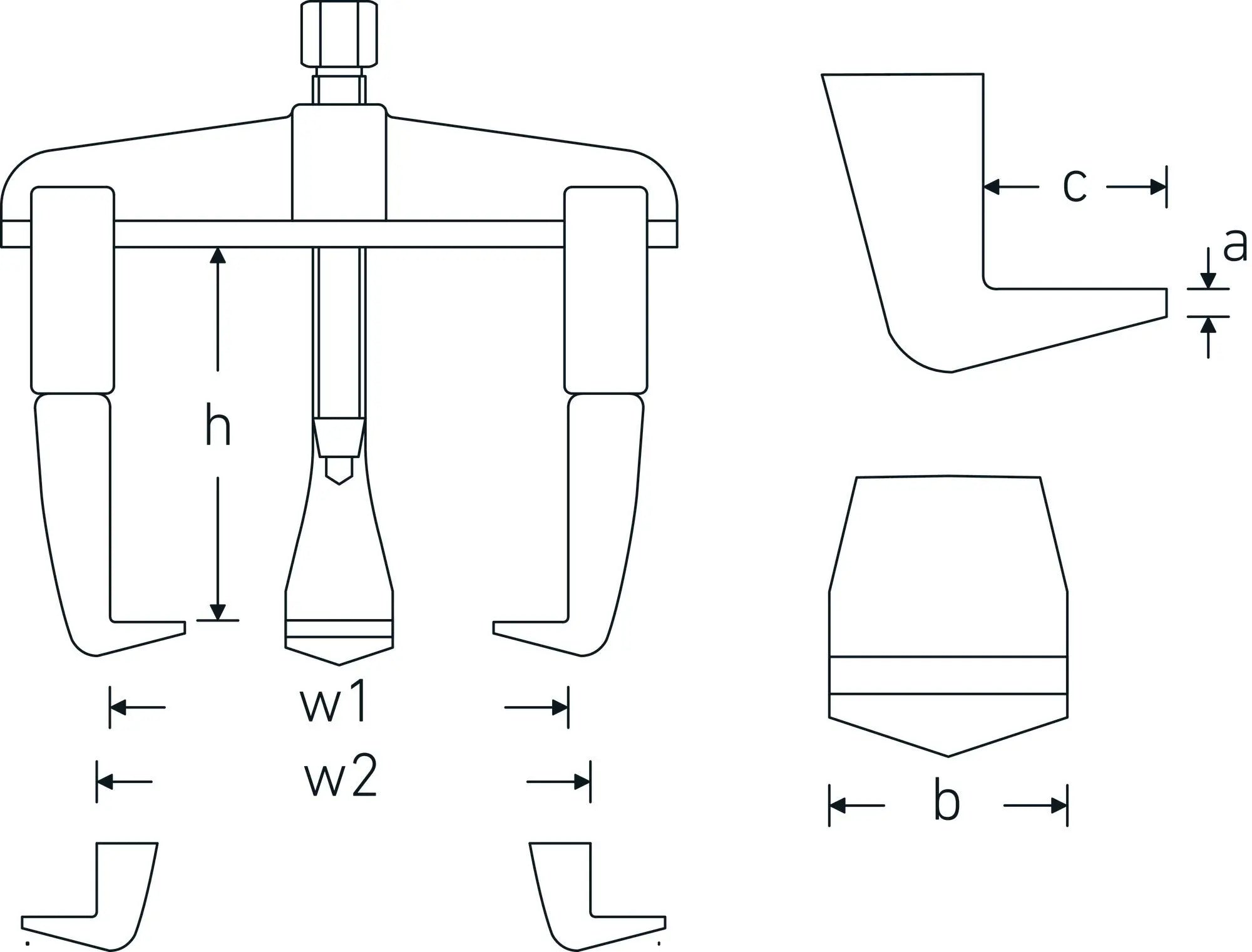

Product Dimension (Refer Image):

• Hook Base Tip Thickness (a): 3mm
• Hook Base Width (b): 22mm
• Hook Base Depth (c): 12mm
