Stahlwille Blank End Welding Insert Tool, 22 x 28mm - ST 58270100
A Welding Insert Tool is a specialized tool used in welding operations to handle, position, and secure welding inserts into fixtures or workpieces. Welding inserts are typically used in welding fixtures or jigs to hold parts in place during the welding process, ensuring that the workpieces are precisely aligned and remain stationary while the weld is being applied. The welding insert tool is designed to make the installation and removal of these inserts quick, accurate, and efficient.
Features:
- Gunmetal finish
- Burnished
- To prevent damage from excessive temperatures, the locking pin, spring and washer are not fitted until the welding work has been completed
- Instructions are supplied
- Material: 1.2208 - 31CRV3
Specifications:
- Overall Length: 24mm
- Tool Holder Size (Internal Square Drive): 22 x 28mm
- Overall Weight: 1.06 lbs
- Welding Dimension (h x w): 15 x 50mm

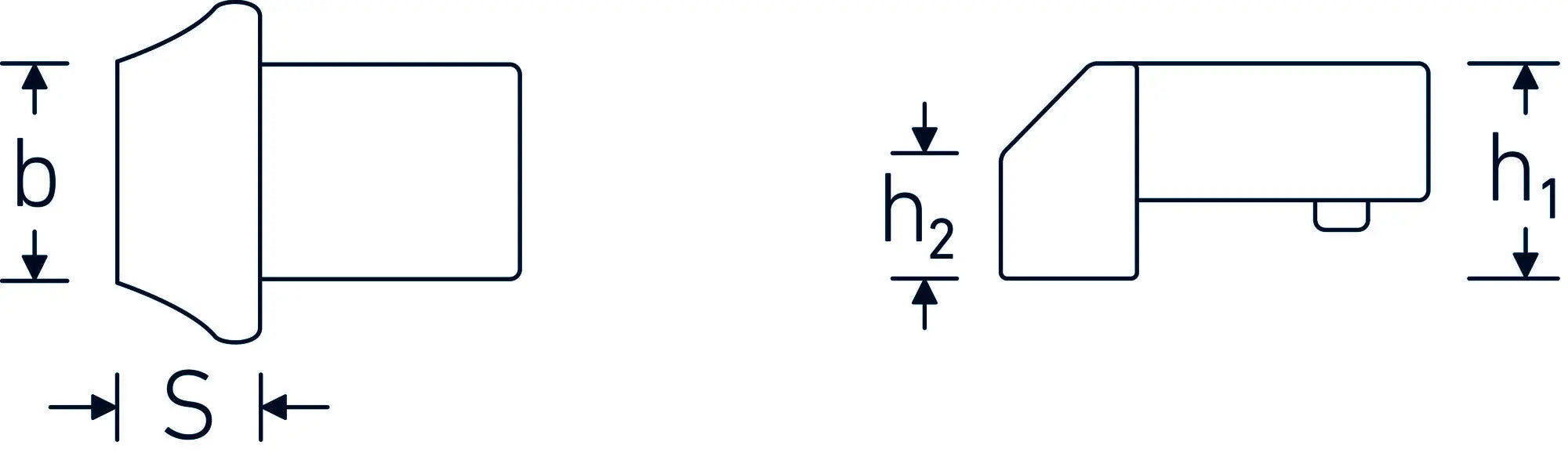

Product Dimension (Refer Image):
- Height h1 Size: 32mm
- Height h2 Size: 15mm
