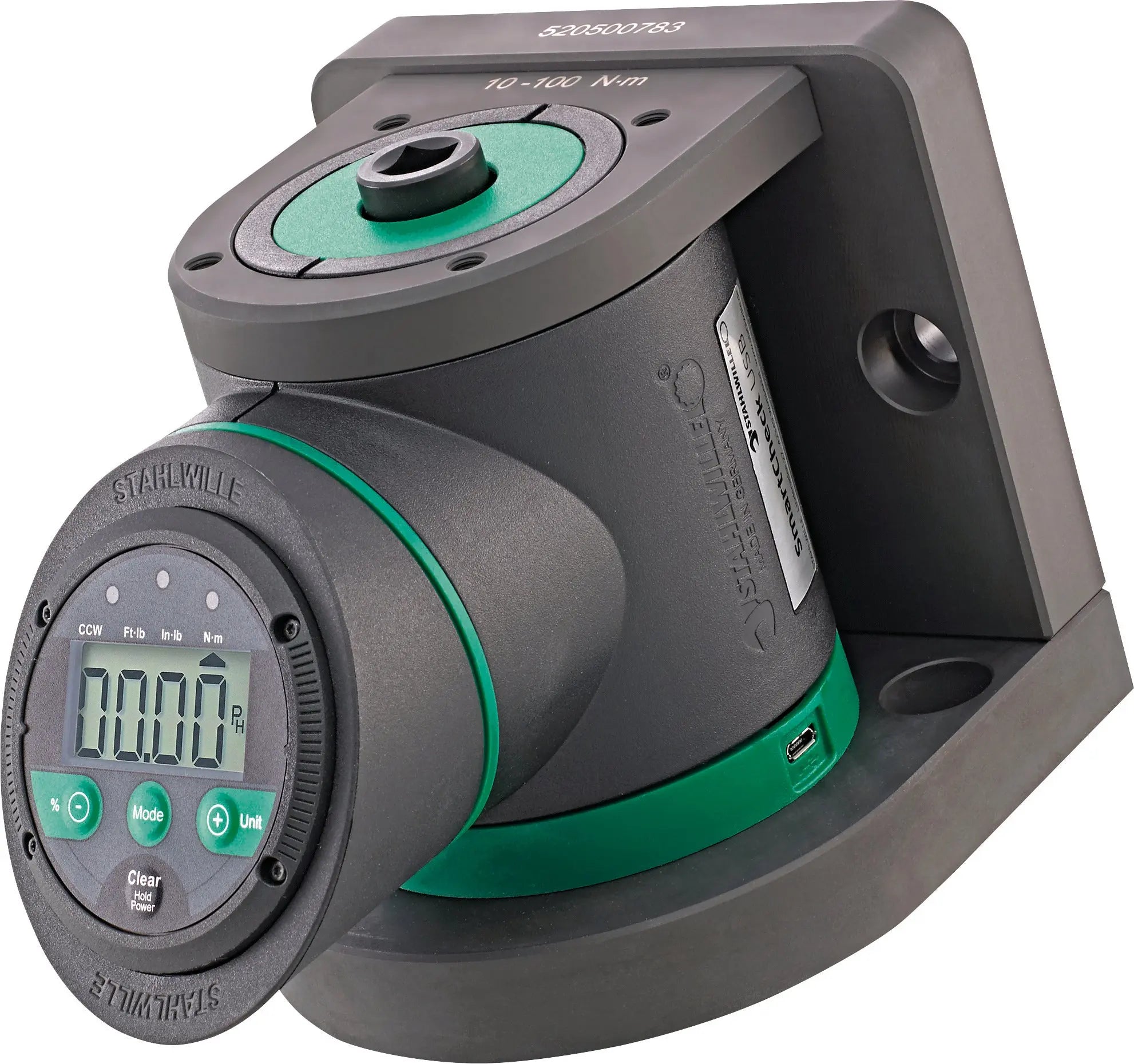

Stahlwille Torque Screwdriver Tester - ST 96521206

The Torque Screwdriver Tester is an essential tool for ensuring precision and reliability in your torque applications. With its easy-to-read digital display and adjustable torque settings, this tester allows you to calibrate your screwdrivers accurately, guaranteeing optimal performance and reducing the risk of over-tightening or damage to sensitive components.

Features:

• Electronic testing device for checking and adjusting indicating and triggering torque screwdrivers
• Simple, quick and reliable testing of torque screwdrivers to ensure quality in production
• Simple documentation of the measured values on the PC via USB interface
• For maximum user-friendliness, the device can be mounted in a horizontal or vertical test position
• The large LCD can be rotated 180 deg and is easy to read from any position

Properties:

• For testing indicating and triggering torque wrenches
• With interchangeable square drive adapters for square drives (from 3/8" to 1/4" with SmartCheck 100 USB, from 3/4" to 1/2" for SmartCheck 400 USB)
• Large LCD for optimum readability
• The display, the display holder, and the base can be rotated 180 deg
• Compact design
• Waterproof display and foil keyboard, case made of impact-resistant plastic
• Simple installation thanks to pre-drilled holes in the mounting bracket
• Horizontal or vertical installations
• For controlled right and left-hand torque testing
• 3 Operating modes - running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
• Customized input of target torques and tolerances for evaluating the measured value possible
• With integrated visual and acoustic overload protection
• 3 Measuring units (N.m, ft.lb, in.lb)
• Micro USB interface for data export and for optional power supply
• Data storage for up to 200 data records, including date and time stamp
• Operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9V block, including adapter)
• With factory calibration certificate

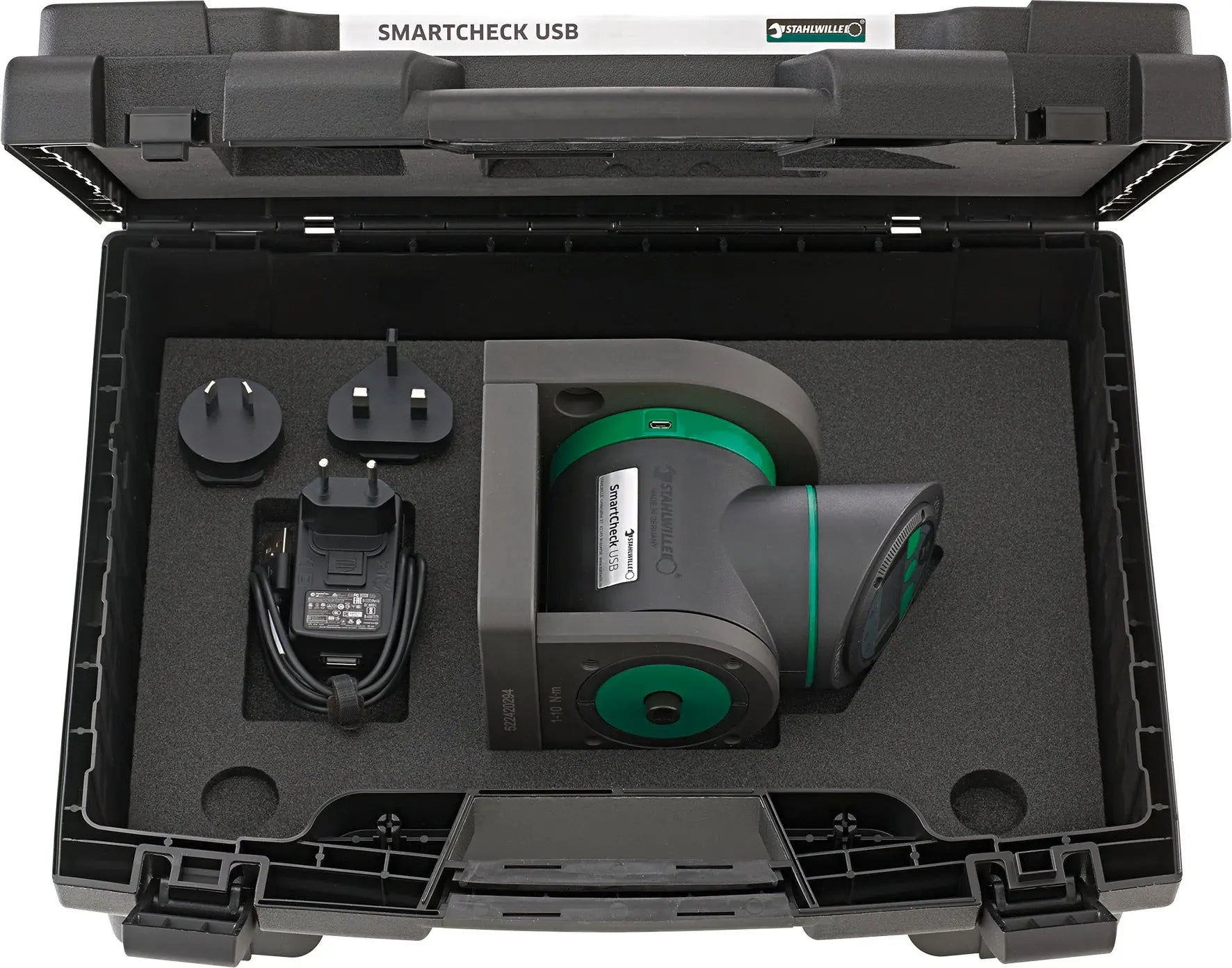

• Delivered in a sturdy plastic box
• Display deviation +/- 1%

Technologies and Features:

• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools

Product Highlights:

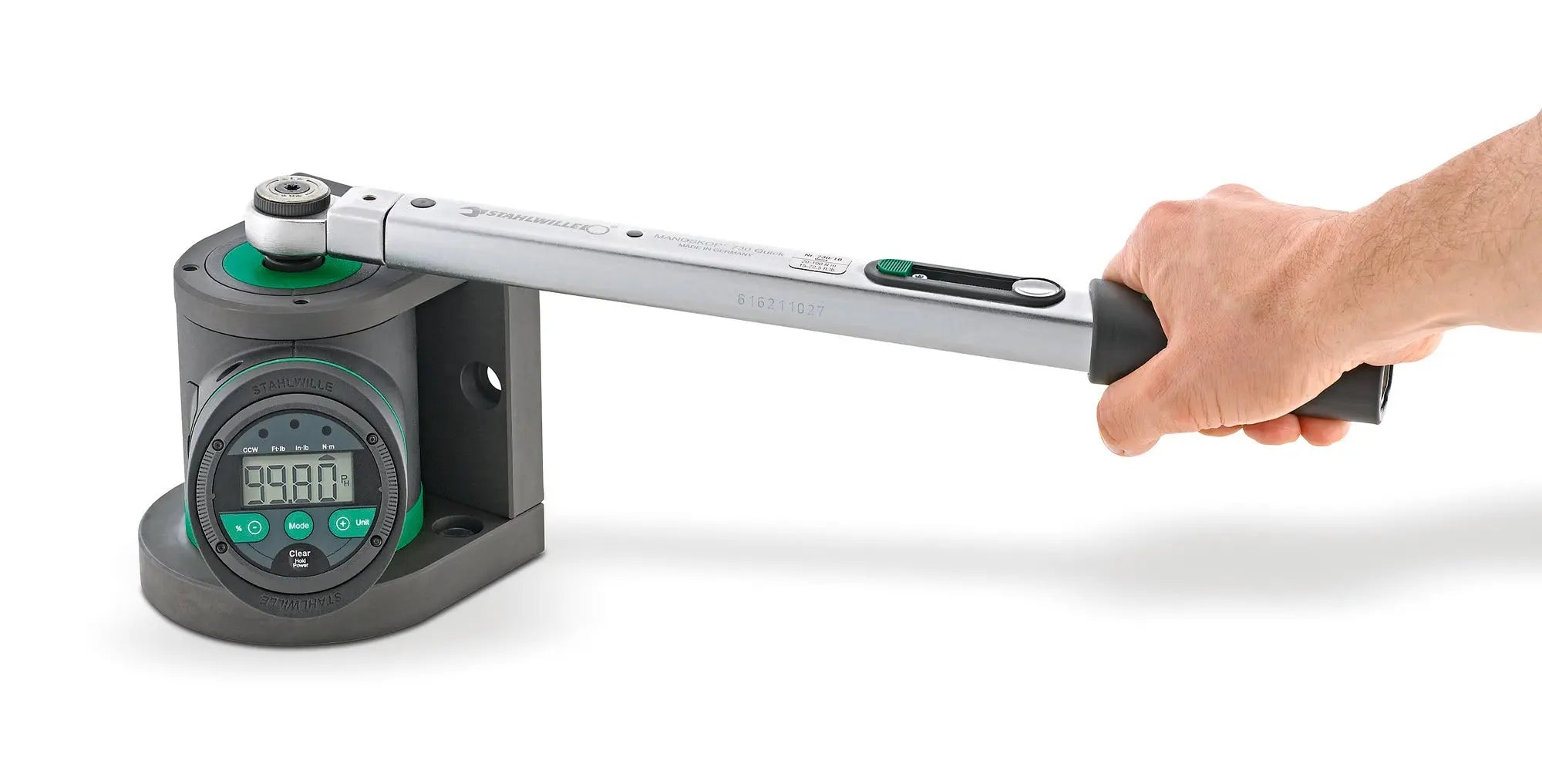

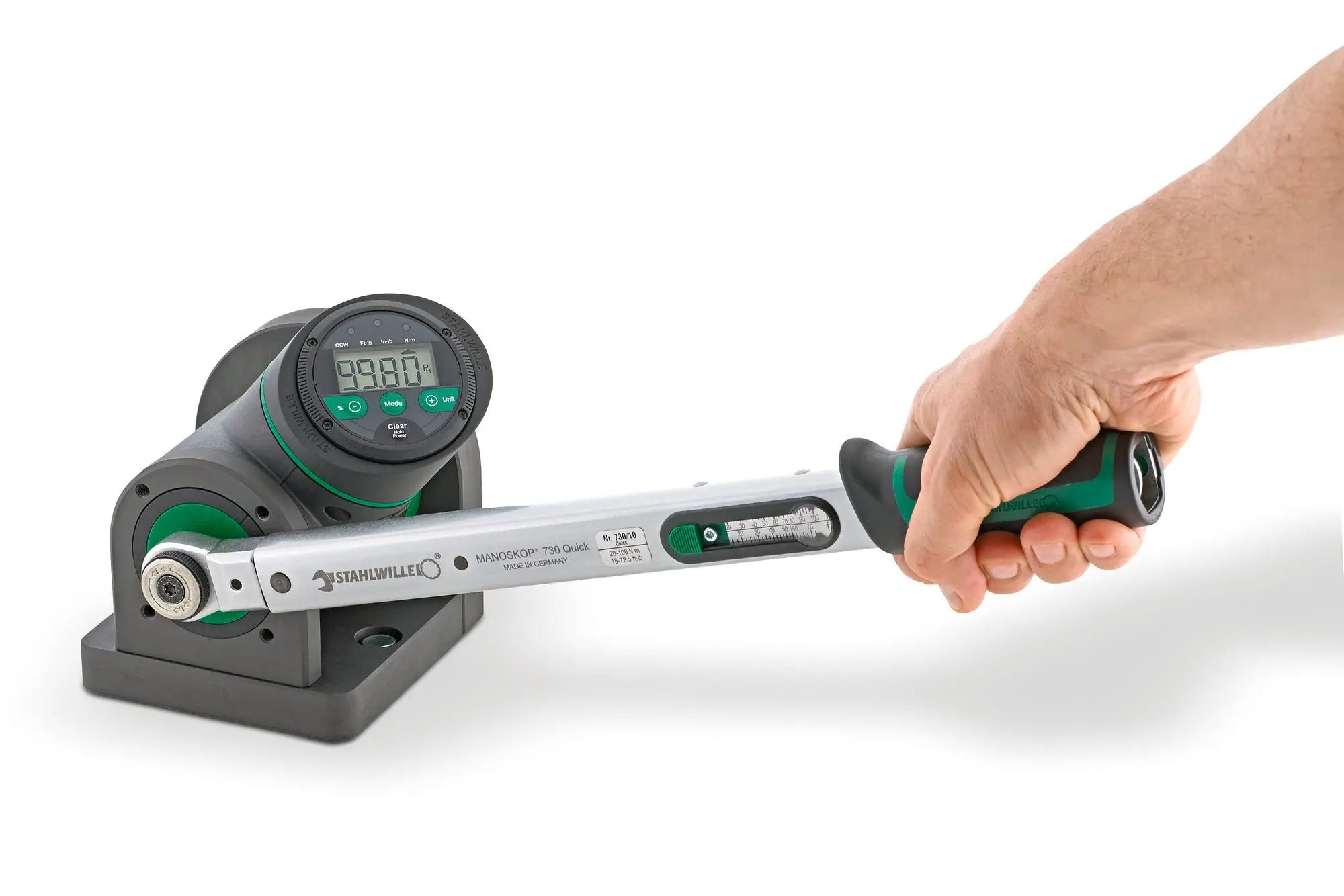

• Flexible mounting
  • Whether mounted horizontally or vertically, the well-designed mounting points, compact design and rotatable display allow flexible positioning anywhere in the workshop
• Optimum viewing angle
  • The compact testing device can be adjusted to the optimum individual viewing angle. The display can be viewed from practically anywhere, as not only the large LCD, but also the display holder and the base body can be rotated by 180 deg

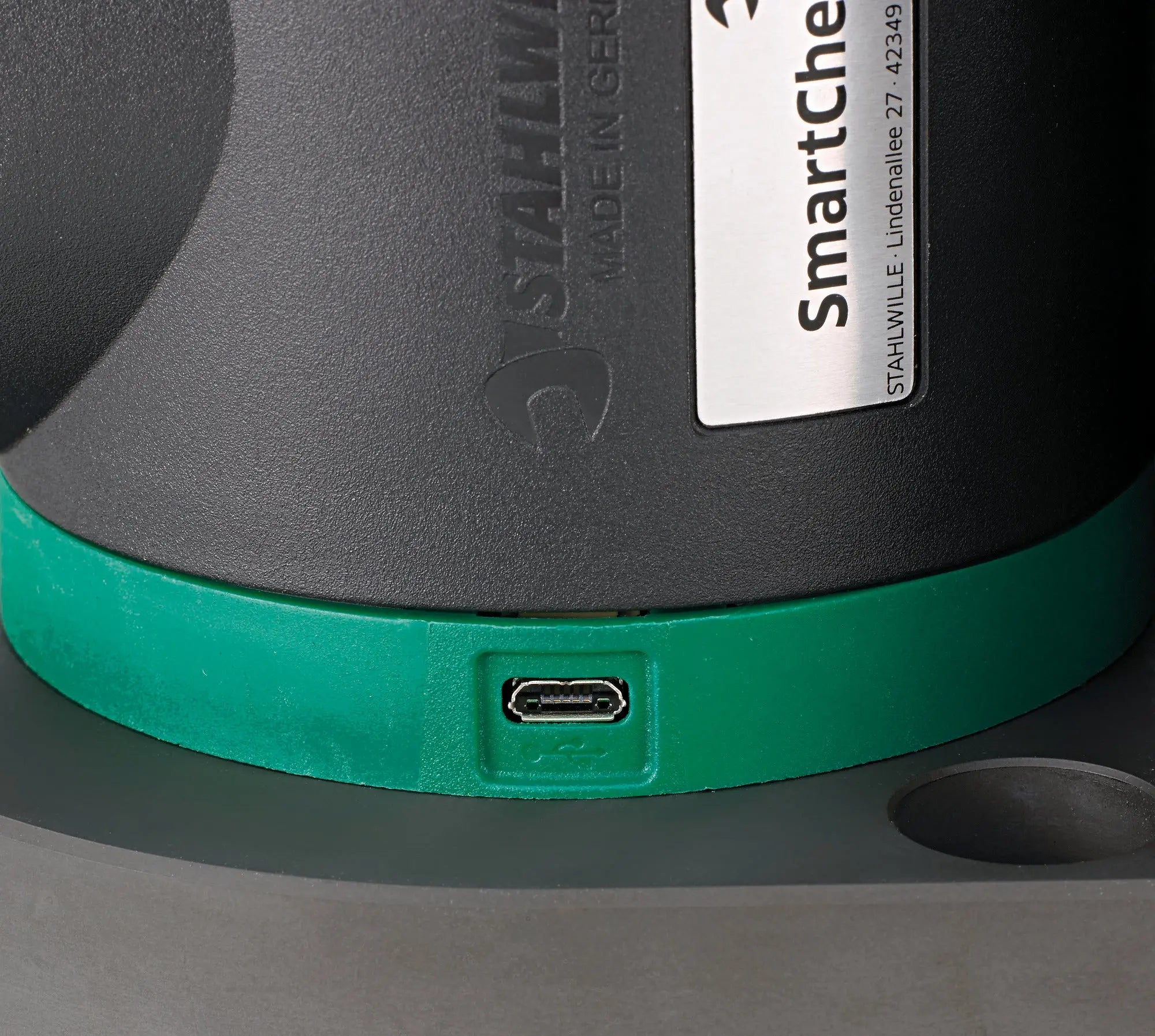

• Communication and power supply via USB
  • SmartCheck is equipped with a convenient micro-USB interface that allows stored test values to be read out and simplifies their transfer to external systems. The USB port also serves as an optional power supply for the device
• Comprehensive documentation
  • The SmartCheck testing device can be easily configured with CheckMaster software, allowing direct evaluation of measurement results. This means that all data can be read out and saved on the PC for better monitoring and optimization of the work processes
• Plug and Work
  • Our SmartCheck is intuitive and ready to use right away. It is space-saving and can be mounted flexibly with its versatile mounting options. The device is powered by either a mains power supply or batteries and can therefore be easily positioned at any workstation, even if no power outlet is available

Specifications:

• Height (h): 124mm
• Internal Square: 1/4 in
• Measuring Range: 1 - 10 N.m, 0.74 - 7.4 ft.lb, 8.9 - 88.5 in.lb
• Number of Digits: 4
• Weight: 5210 g

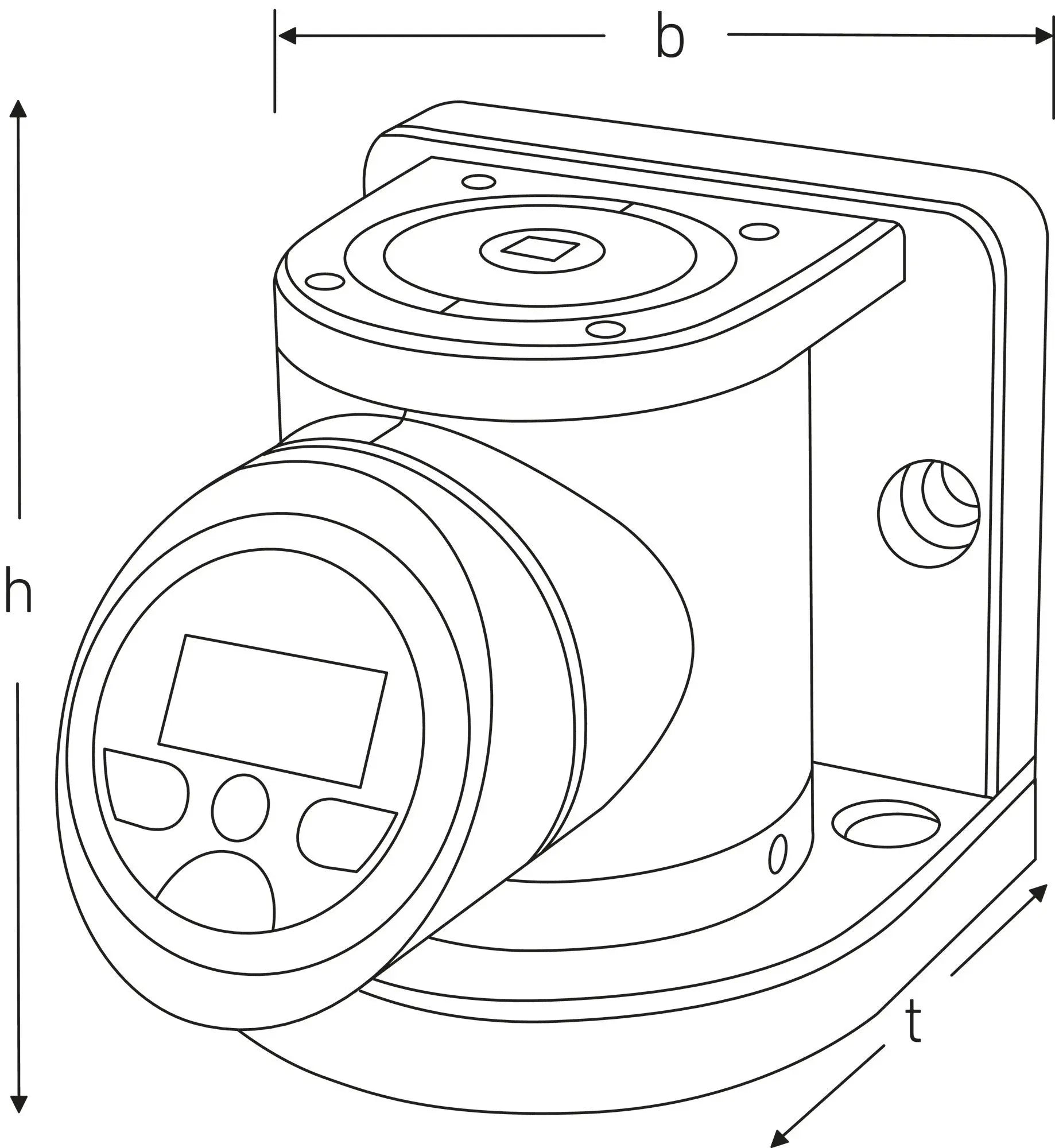

Refer Line Drawing Image:

• Width (b): 120mm
• t Size: 167mm
