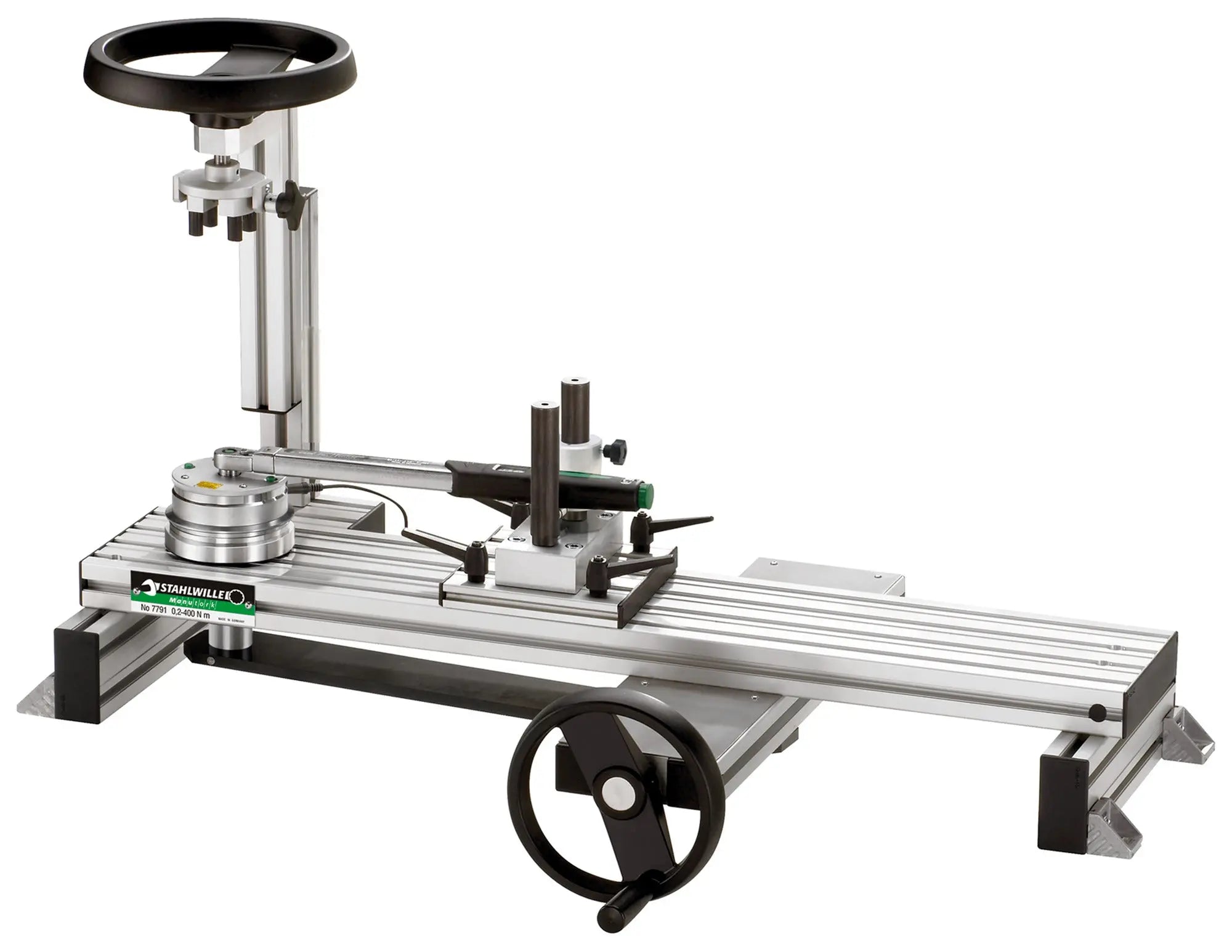

Stahlwille Complete Calibration System, 1 - 10 Nm - ST 96521068

A Complete Calibration System is an integrated solution used to ensure the accuracy, reliability, and precision of measurement instruments and devices. It consists of all the necessary tools, equipment, and software to perform calibration tasks, adjusting instruments to meet established standards and ensuring they operate within the required tolerances. Such systems are commonly used in industries where precise measurements are critical, including manufacturing, healthcare, aerospace, automotive, and scientific research.

Set Includes:

• Transducer
• Square adaptor
• USB adaptor and cable for transferring measurement data to a personal computer
• Administration software for calibration certificates

Features:

• Measurement without displacement of the force application point
• Due to a special force transmission system, the mechanical calibration device no. 7791 avoids a displacement of the point of application of force during the calibration process
• Driven by the handwheel, the lever mounted below the test rail is moved linearly by a spindle
• The linear movement is converted into a rotary movement which acts on the transducer
• The torque spanner to be calibrated remains constant in its position during the entire calibration process
• In this way, measurement errors resulting from a shift of the point of application of the force are avoided
• The torque spanner is automatically aligned horizontally by a low-friction ball bushing
• Another ball bushing ensures friction-free support of the torque wrench
• The resulting reduction of the transverse forces on the transducer and the friction on the torque wrench support leads to a reduction of the measuring errors
• Patents pending

Specifications:

• Overall Length: 605mm
• Range: 1 - 10 Nm
• Overall Weight: 31.75 lbs

Product Dimension (Refer Image):

• Height h Size: 535mm
• Width b Size: 323mm
