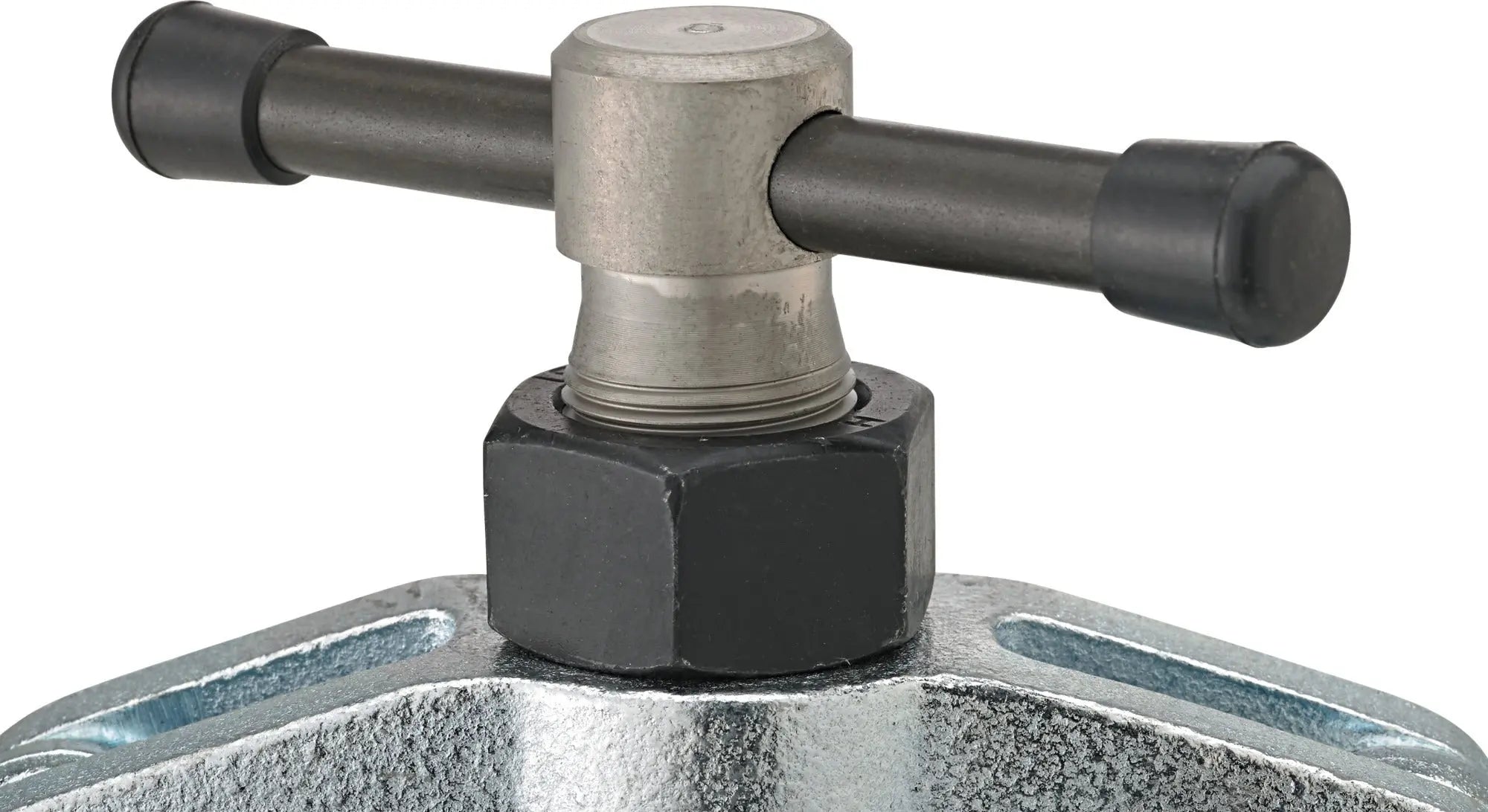

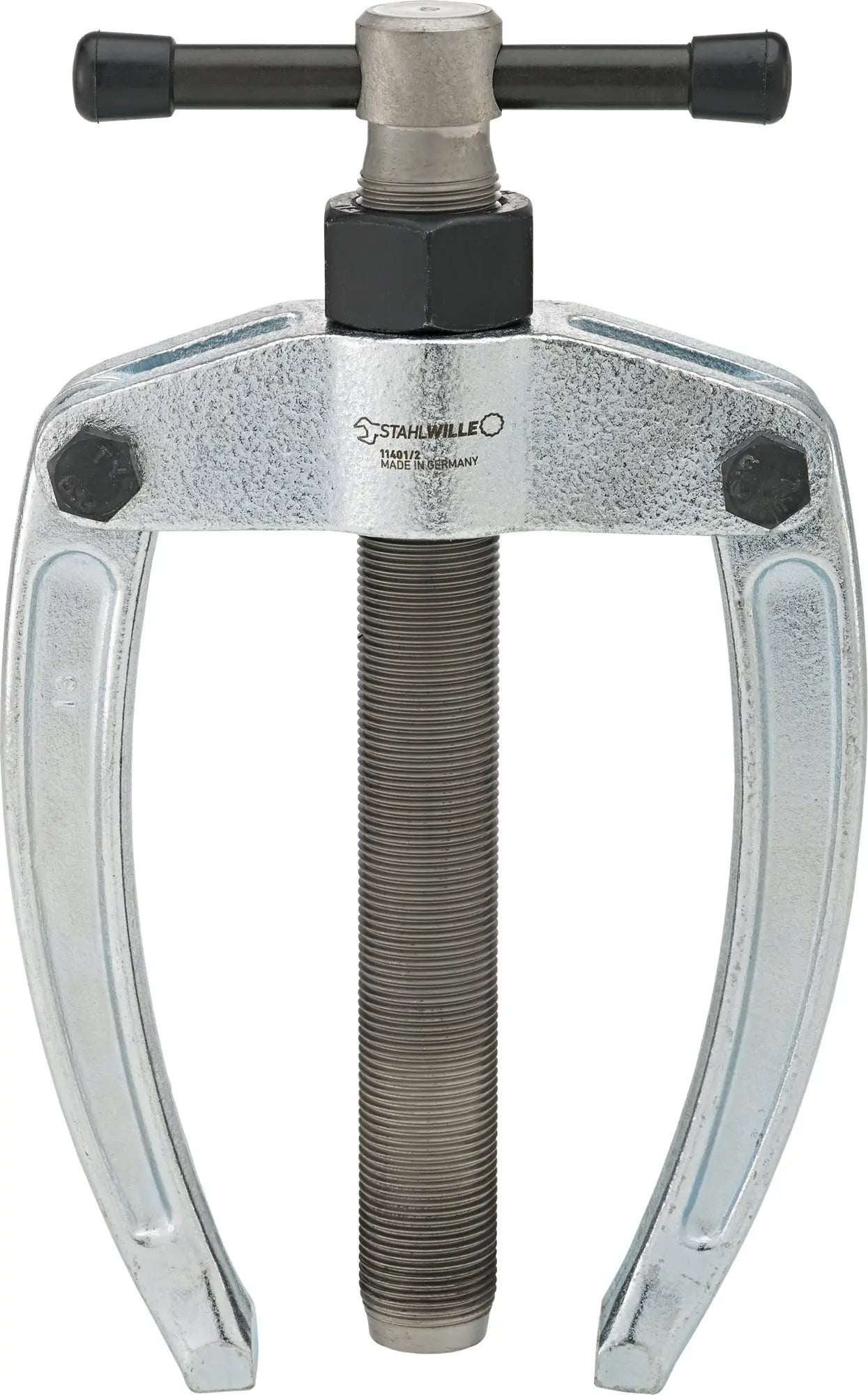

Stahlwille Counter Stay, Size 3 - ST 71040103
A Counter Stay is a mechanical support component used in various applications, particularly in construction, architecture, and engineering. It is typically employed to provide additional support and stability to structures, counteracting forces such as tension or compression that could cause movement or deformation. Counter stays are often used in systems that require reinforcement or stabilization, including bridges, gates, or scaffolding.
Features:
- For internal extractor 11400/1-5
- Screw the spindle of the counter support to the connection thread of the internal extractor
- Insert the internal extractor and spread it
- Pull out the workpiece
- For increased safety - Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality
- Reliable grip - The combination of a robust spindle, fixed clamping nut and a strong toggle handle ensures a secure grip and precise, centered pulling
- Adapted access geometry - The self-centering puller arms automatically adjust to the shape of the part to be removed. This facilitates handling and ensures an even distribution of the pull-off force
- A counter support, work can be done with more force and more precisely than with the slide hammer
- Supports reliable and fast extraction of tight fitting ball bearings, bushings, oil seals etc

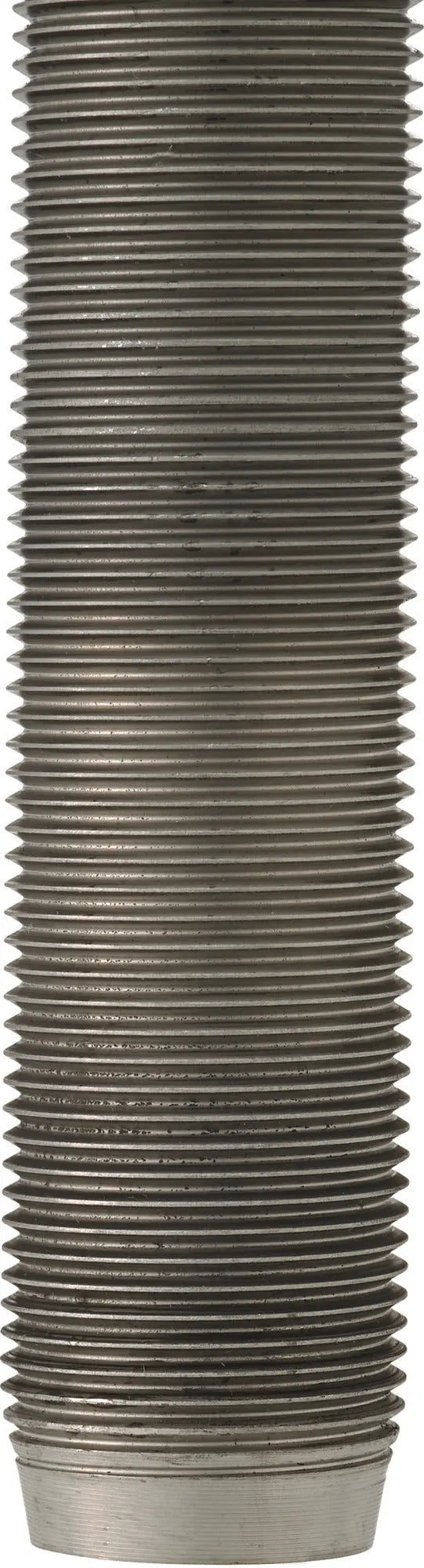

- Powerful spindle with fine thread provides reliable performance, even for demanding tasks
- To use, place the counter stay onto the housing, screw the spindle to the connection thread of the internal extractor and pull out the component
- Made from robust steel for a long service life, even with heavy use
Specifications:
- External Hexagon Drive: 32mm
- Size: 3
- Overall Weight: 6.61 lbs
- Suitable for: 11400/8, /9
- Thread Size: M14 x 1.5
