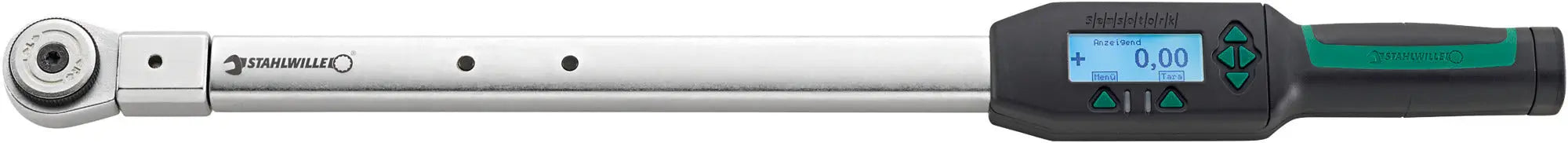

Stahlwille Sensotork Electronic Angle and Torque Wrench, Size 20 - ST 96501620

The Sensotork Electronic Angle and Torque Wrench combines precision engineering with user-friendly technology, ensuring accurate torque application and angle measurement in one sleek tool. Designed for professionals and DIY enthusiasts alike, this versatile wrench features an easy-to-read digital display and customizable settings, making it perfect for a variety of applications, from automotive repair to construction projects.

Properties:

• Simple and flexible operation thanks to menu guidance on the large display
• Particularly broad measurement range (5-100 % of the nominal value)
• Includes reversible ratchet No. 735
• With QuickRelease safety lock
• For clockwise and counter-clockwise tightening
• Measurement independent of the point of force application
• Convenient angle of rotation measurement with an extremely wide angle of rotation range
• Units of measurement - N.m, ft.lb, in.lb
• Prewarning threshold for visual, tactile and acoustic signals can be set

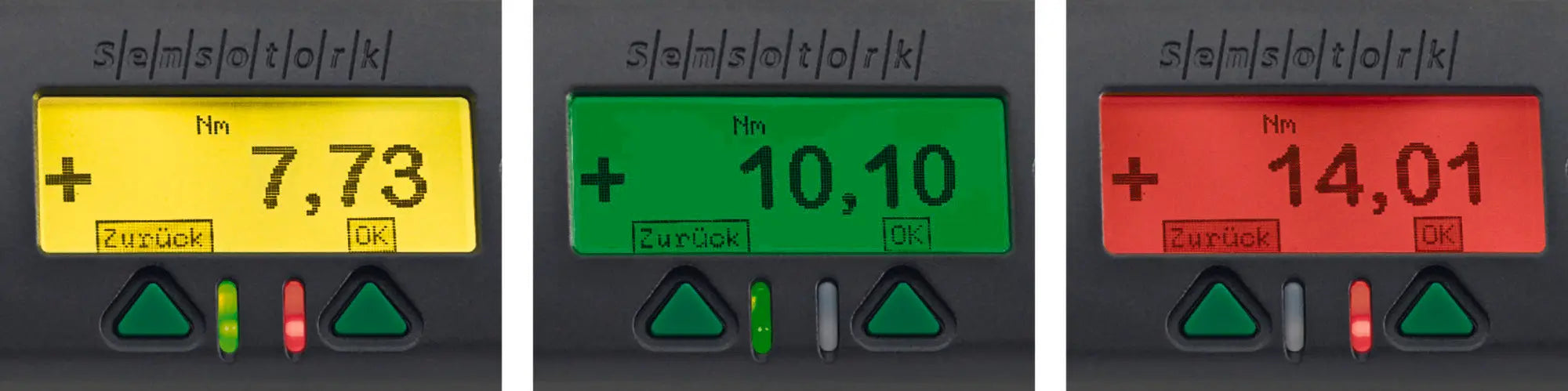

• Multicolored backlit LED display gives visual cue about the status of the process (traffic light principle)
• Extension length compensation function - automatic compensation of the tightening torque when a deviating extension length is entered
• Easy to maintain thanks to simple adjustment and automatic notification of the next calibration date
• Multiple bolted joints can be combined into a menu-guided sequence
• Tightening operations are saved with a date and time stamp
• Individual identification designation possible
• Password protection against unintentional adjustment and unauthorized access
• Compliant with DKD-R 3-7, class 2
• With 2 calibration certificates (torque in accordance with DIN EN ISO 6789-2:2017/angle of rotation based on VDI/VDE 2648-2)
• In sturdy plastic box (size 40 in sturdy steel box)
• Supplied with 2 x 1.5 V AA batteries. NiMH batteries AA/LR6, 1.2 V can also be used.
• Fully automatic calibration (torque) with the perfectControl calibration system No. 7794-2
• Readjustment does not require disassembly
• Torque and angle of rotation are visible at the same time
• Angle of rotation accuracy +/- 1 deg, +/- 1 digit to 100 deg, >100 deg at least 1%, +/- 1 digit
• Torque accuracy +/- 1 %, +/- 1 digit

Technologies and Features:

• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools
• QuickRelease
  • The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers - The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons

Product Highlights:

• Precision measurement
  • Accuracy counts - uncertainty is reduced to a minimum to guarantee accurate readings
• Multisensory
  • The torque achieved is indicated by visual, audible and tactile signals - with a multicolored backlit LCD display, acoustic signal and vibration

Specifications:

• Size: 20
• Battery Type: Mignon (AA) 1.5V
• External Square Drive: 1/2 in
• Height (h): 26mm
• Length (L): 608mm
• Measuring Range: 10 - 200 N.m, 7 - 148 ft.lb
• Number of Teeth: 60
• Internal Square Tool Holder Size: 14 x 18mm
• Weight: 1552 g

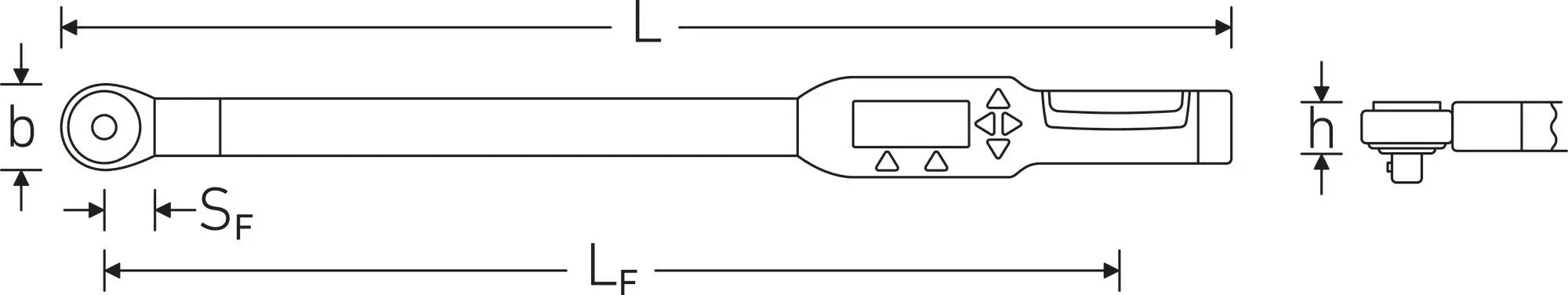

Refer Line Drawing Image:

• LF: 524mm
• SF Size: 25mm
• Width (b): 43mm
