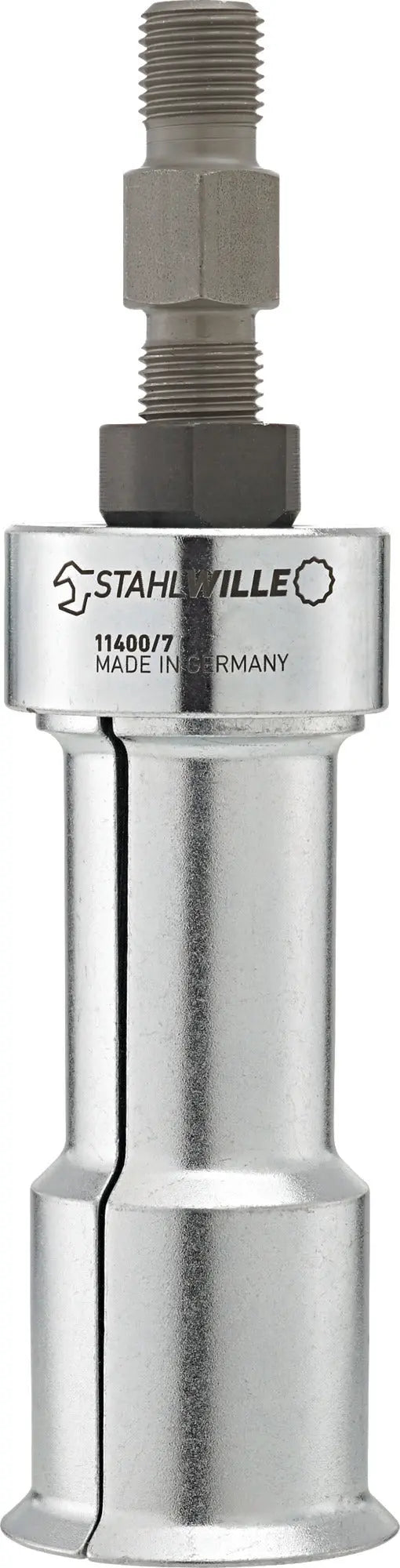

Stahlwille Internal Puller, Size 1 - ST 71040001

The Internal Puller, Size 1, is designed for professionals who demand precision and reliability in their work. Crafted with high-quality materials, this tool ensures durability and long-lasting performance, making it an essential addition to your toolkit. Its ergonomic design allows for comfortable handling, while the compact size enables access to tight spaces where traditional pullers may not fit. Whether you're working on automotive repairs, machinery maintenance, or any other intricate tasks, this internal puller provides the strength and accuracy you need to get the job done efficiently. With its easy-to-use mechanism, you can quickly and safely remove internal components without damaging surrounding parts. Upgrade your toolkit today with the Internal Puller, Size 1, and experience the difference in your work quality and efficiency.

Features:

• Durable tool for extracting ball bearings, bushings, oil seals or similar
• Easy on the workpiece thanks to even force distribution

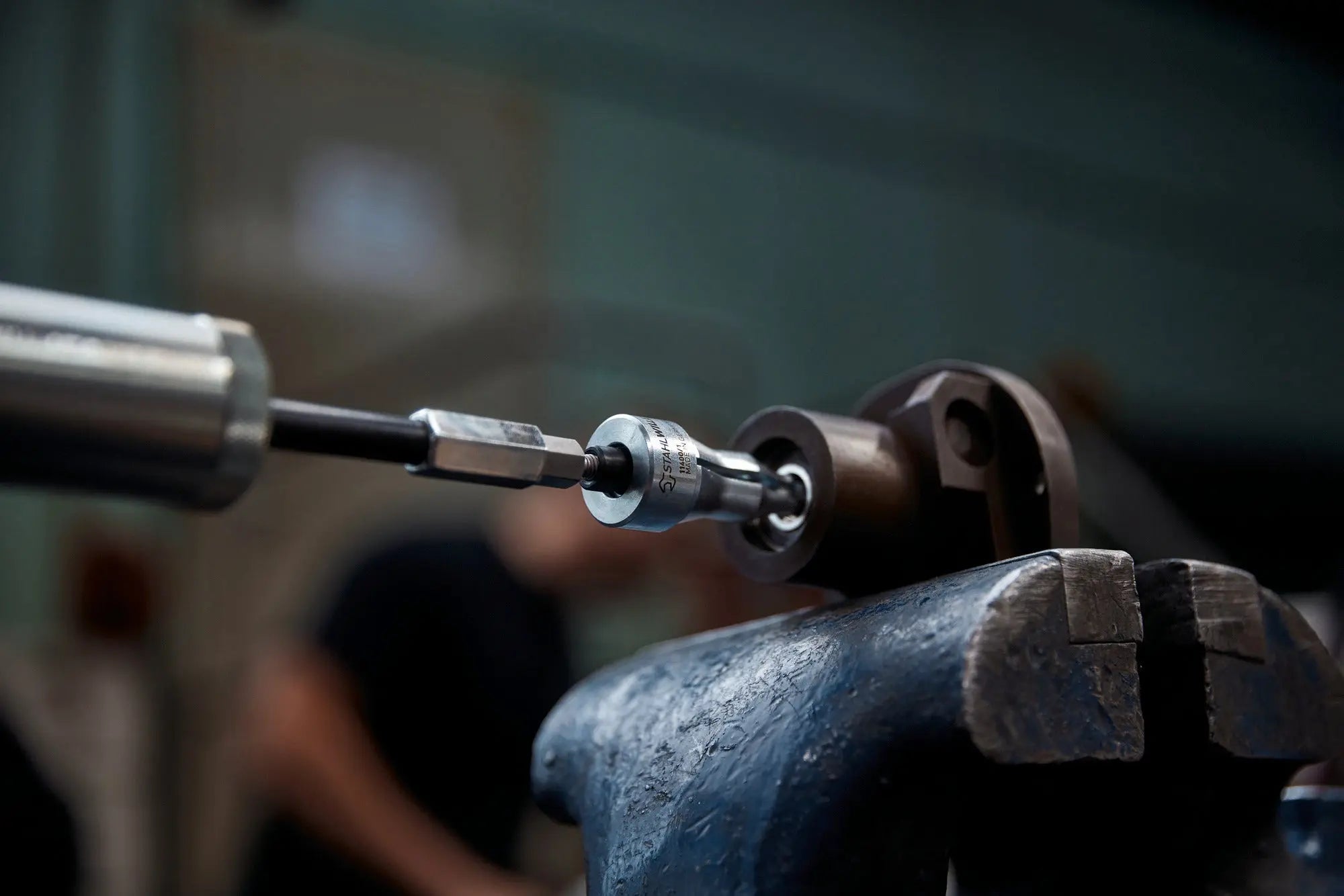

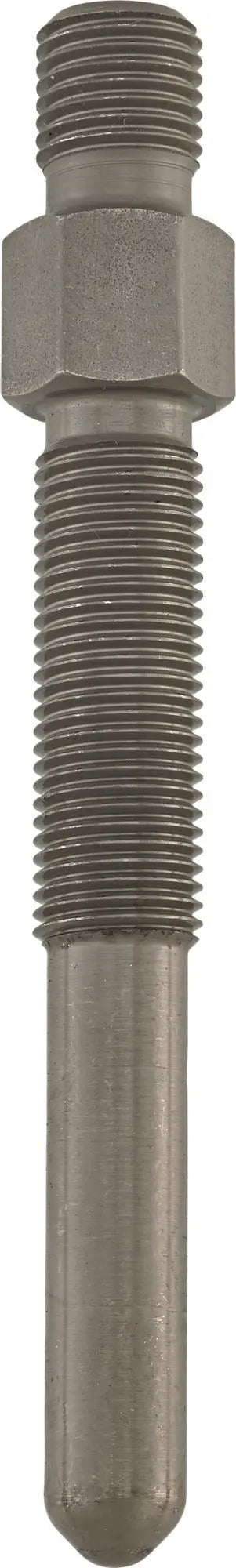

• Simple removal is carried out by inserting the internal puller into the bearing and screwing in the spindle
• The sharp edges of the shells securely grip and pull out even bearings that sit close to the back panel
• Can be combined with slide hammers and counter stays for quick removal of components

Properties:

• For very tight ball bearings, ball bearing outer races and bushings that are not freely accessible from the outside

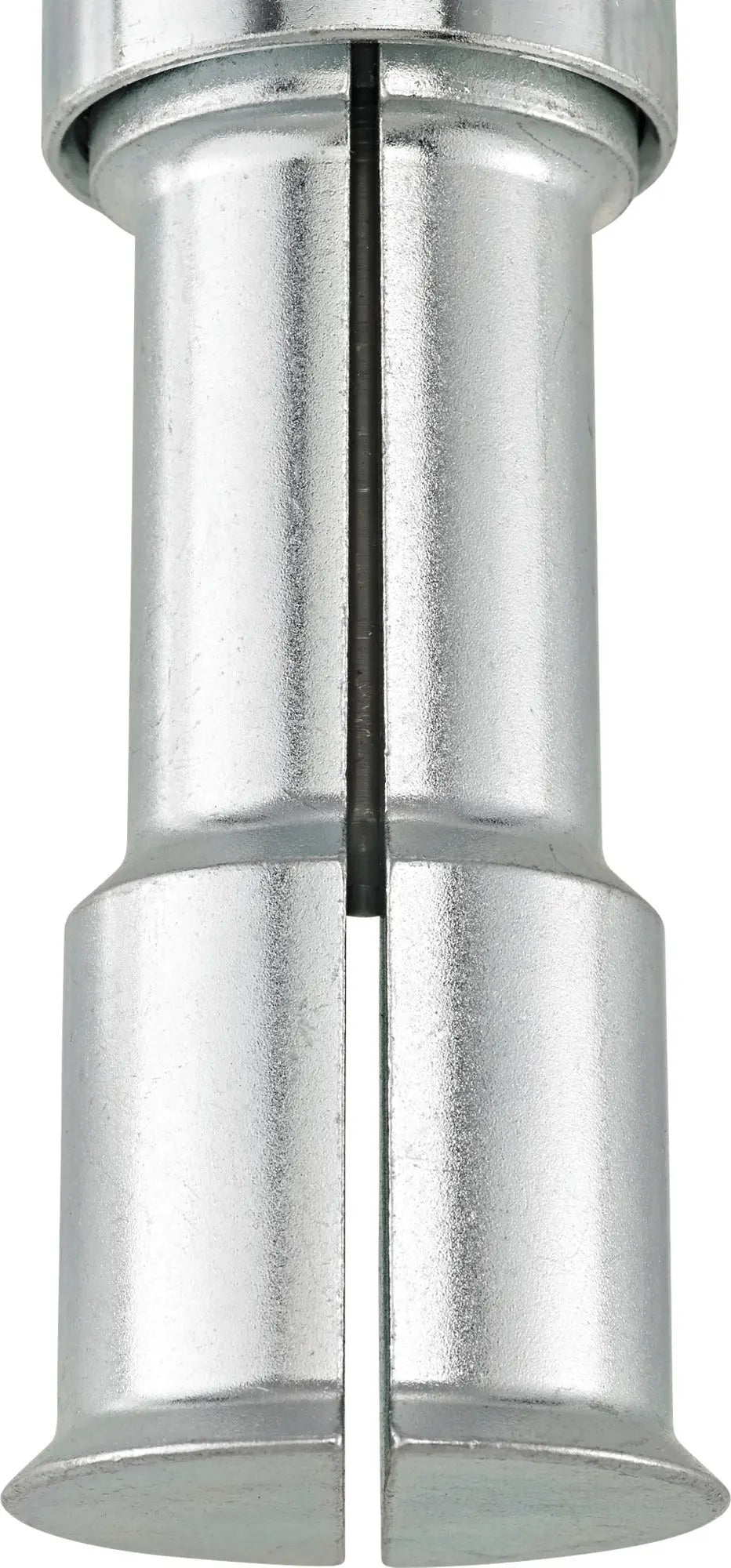

• The expanding jaws spread and the lugs locate under the bearing
• Can be used with slide hammers 11402/1-2 or counter stays 11401/1-3

Specifications:

• External Hexagon Drive: 10mm
• Height: 26mm
• Length (L): 105mm
• Size: 1
• Weight: 114 g

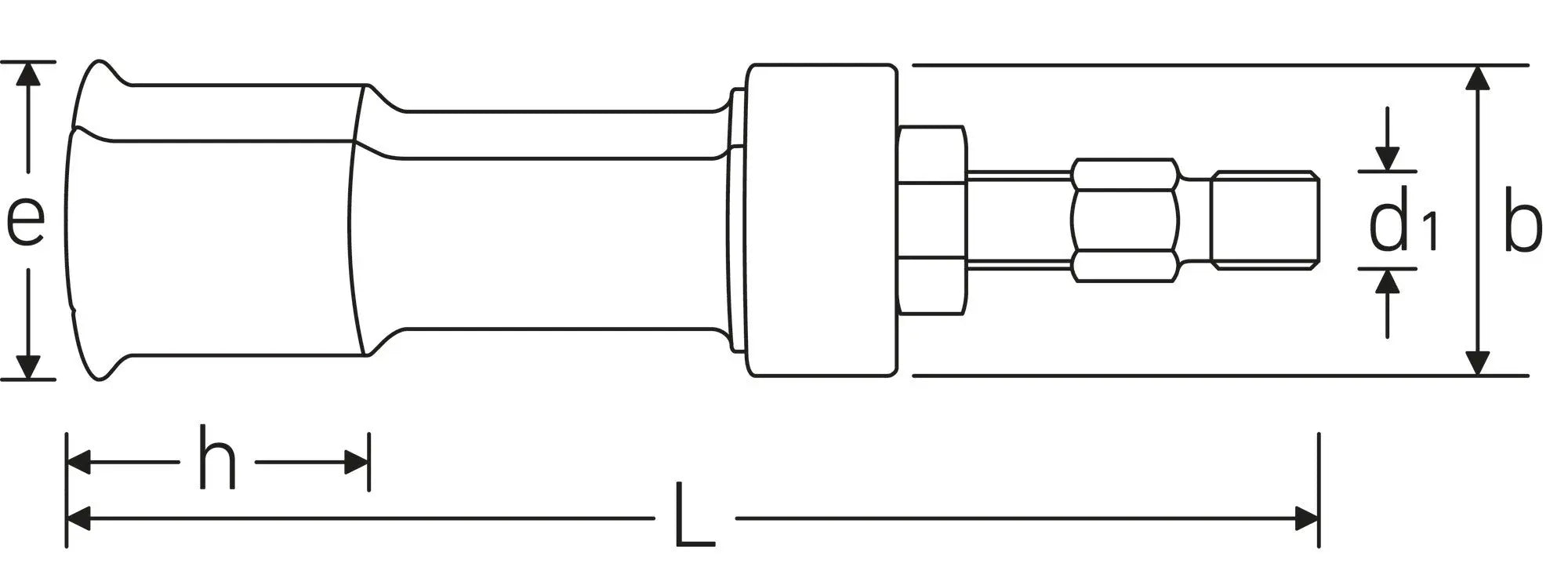

Refer Line Drawing Image:

• Spreading Range (e) (min. - max.): 8 - 12mm
• Width (b): 26mm
