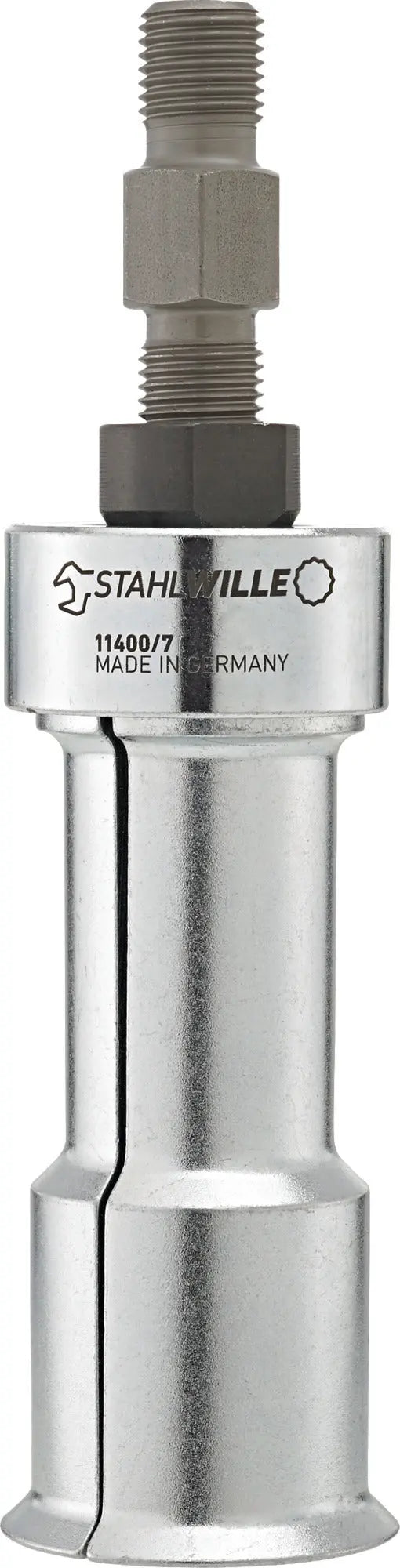

Stahlwille Internal Puller, Size 3 - ST 71040003

The Internal Puller, Size 3, is designed for maximum efficiency and ease of use in various applications. Whether you’re a professional mechanic or a DIY enthusiast, this tool is essential for removing bearings, gears, and other internal components with precision. Crafted from high-quality materials, it ensures durability and longevity, making it a reliable addition to your toolkit. Its ergonomic design provides a comfortable grip, allowing for greater control during operation. With a size that fits most standard applications, this internal puller is versatile enough to tackle a wide range of tasks. Experience the convenience and effectiveness of the Internal Puller, Size 3, and elevate your work to the next level.

Features:

• Durable tool for extracting ball bearings, bushings, oil seals or similar
• Easy on the workpiece thanks to even force distribution
• Simple removal is carried out by inserting the internal puller into the bearing and screwing in the spindle
• The sharp edges of the shells securely grip and pull out even bearings that sit close to the back panel
• Can be combined with slide hammers and counter stays for quick removal of components

Properties:

• For very tight ball bearings, ball bearing outer races and bushings that are not freely accessible from the outside
• The expanding jaws spread and the lugs locate under the bearing
• Can be used with slide hammers 11402/1-2 or counter stays 11401/1-3

Specifications:

• External Hexagon Drive: 13mm
• Height: 28mm
• Length (L): 120mm
• Size: 3
• Weight: 149 g

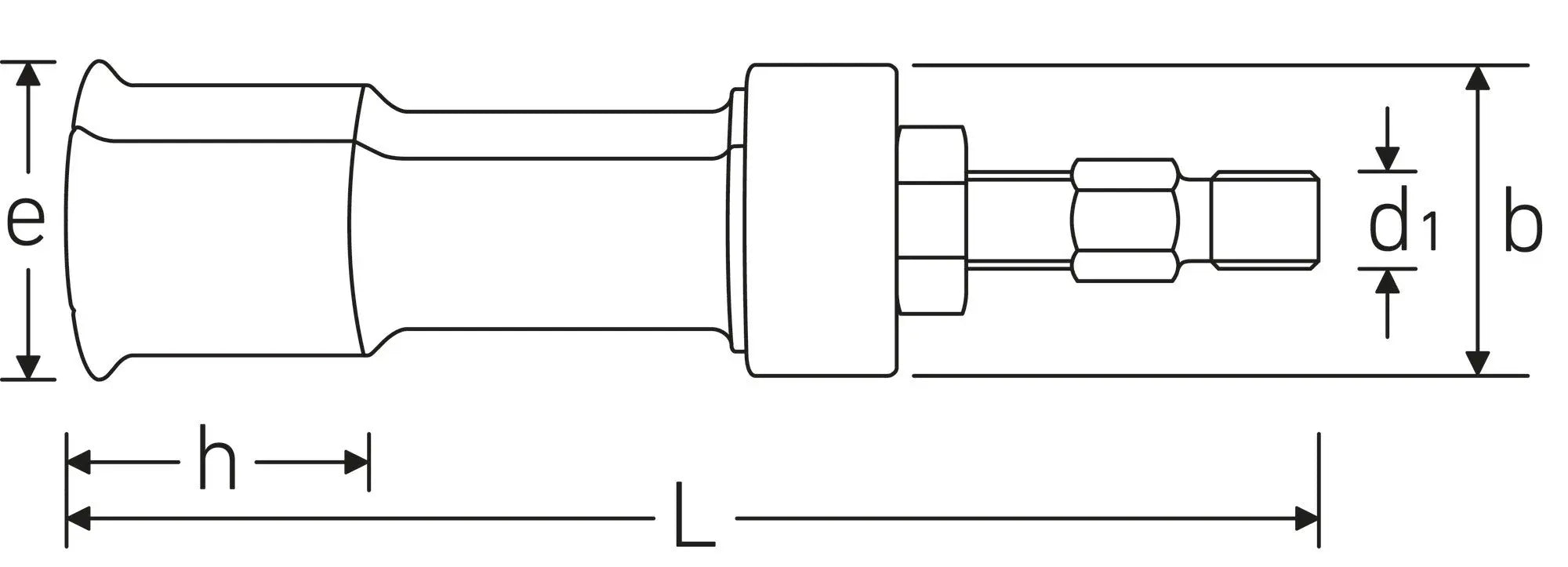

Refer Line Drawing Image:

• Spreading Range (e) (min. - max.): 15 - 19mm
• Width (b): 28mm
