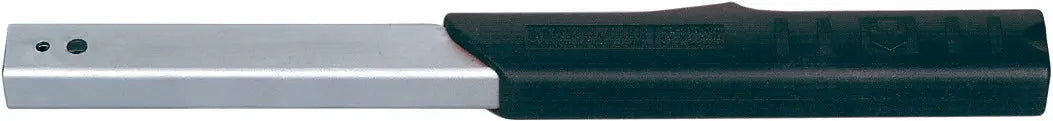

Stahlwille MANOSKOP Series Torque Wrench with Holder for Insert Tools, 30 - ST 50010030

The Series Torque Wrench is a high-precision tool designed for accurately applying and measuring torque to fasteners. With a durable and ergonomic design, this wrench ensures consistent and reliable performance in a variety of applications, including automotive, industrial, and maintenance tasks. The series includes multiple models, each offering a range of torque settings to suit different needs, from light-duty to heavy-duty tasks.

Features:

• For work on conveyor belts or in serial production. No adjustment scale, therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the calibration systems No. 7794, No. 7706
• Triggering
• Mount for interchangeable insert tools (755/4-30)
• Dual stop signal
• Particularly lightweight and easy to handle
• Handle and shaft made of square steel pipe
• Further loading after triggering or loads in the opposite direction of operation (max. up to the measurement range limit of the torque wrench) do not affect the trigger mechanism, which protects it from damage
• Counter-clockwise tightening with plug-in insert tools
• On request with pre-set trigger value (price surcharge 10%)
• Adjustment with torque wrench test device
• Display deviation +/- 4 %

Specifications:

• Overall Height: 24mm
• Overall Length: 609mm
• Measuring Range: 60 - 300 Nm
• Size: 30
• Size of Tool Holder Internal Square: 14 x 18mm
• Overall Weight: 2.67 lbs

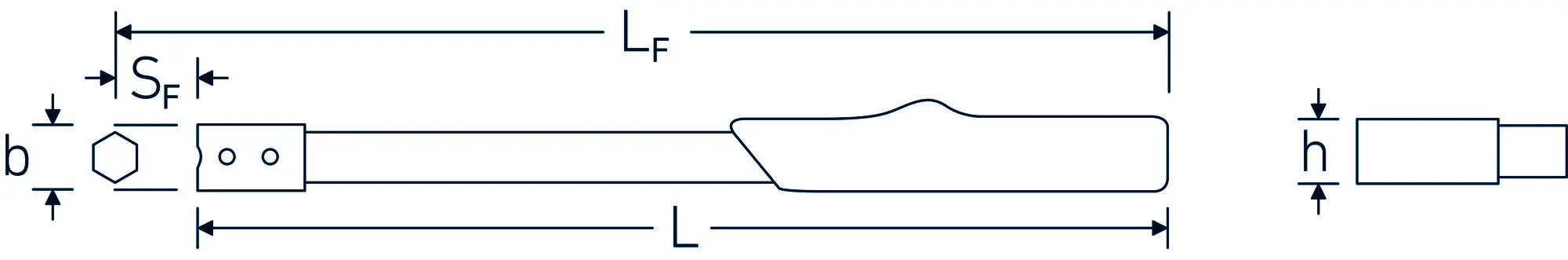

Product Dimension (Refer Image):

• Width b Size: 28mm
• SF: 25mm
• LF: 587mm
