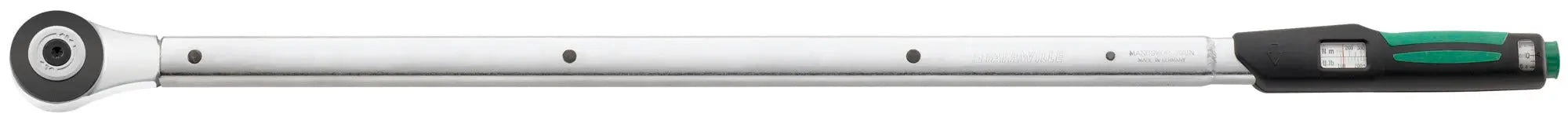

Stahlwille MANOSKOP Service Torque Wrench with Fine-Tooth Ratchet, 65 FK-HD - ST 96502265

The Service Torque Wrench is a versatile and reliable tool designed for precise torque applications in servicing and maintenance tasks. It is ideal for applications where accurate fastening or loosening of fasteners is required, ensuring optimal performance and safety. Made from high-quality materials, the Service Torque Wrench offers durability and longevity, making it suitable for both professional and DIY use.

Features:

• Includes sturdy plastic box (size 65 in steel box)
• Deviation of indication +/- 4%
• Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
• Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use
• The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change
• 2-Component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation
• Adjustment does not require disassembly, Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum and minimum values
• Clear fine adjustment - The easy-to-use and easy-to-read double scale in Nm/ft.lb allows precise and easy target torque adjustment for reliable and accurate application
• Triggering dual stop signal, When the target torque is reached, MANOSKOP 730N provides a noticeable tactile dual stop signal

Specifications:

• External Square Drive: 3/4 in
• Fine Scale Division: 2.5 Nm
• Overall Height: 70mm
• Overall Length: 944mm
• Measuring Range: 130 - 650 Nm
• Size: 65 FK-HD
• Overall Weight: 8.15 lbs

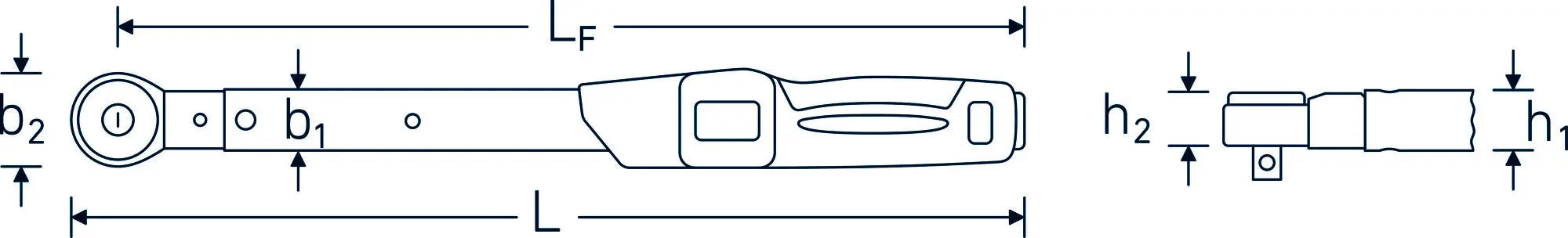

Product Dimension (Refer Image):

• Width b Size: 85mm
• b1 Size: 30.6mm
• b2 Size: 58mm
• H1 Size: 25.6mm
• H2 Size: 36mm
• LF: 848mm
