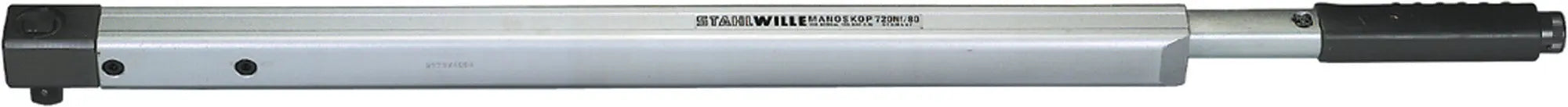

Stahlwille MANOSKOP Torque Wrench with Fixed Square Drive, 160 - 800 Nm - ST 50190081
A Torque Wrench is a precision tool designed to apply a specific amount of torque to fasteners such as bolts and nuts. It ensures that fasteners are tightened to the manufacturer's recommended specifications, helping prevent over-tightening or under-tightening that could cause damage or failure. Torque wrenches are commonly used in automotive, construction, and industrial applications. They are available in various types, including click-type, dial-type, and electronic torque wrenches, to suit different tasks and preferences.
Features:
- 3/4" External square drive
- Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
- Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use
- Adjustment does not require disassembly - Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum and minimum values
Specifications:
- External Square Drive: 3/4 in
- Overall Height: 42mm
- Overall Length: 1034mm
- Measuring Range: 160 - 800 Nm
- Overall Weight: 12.46 lbs

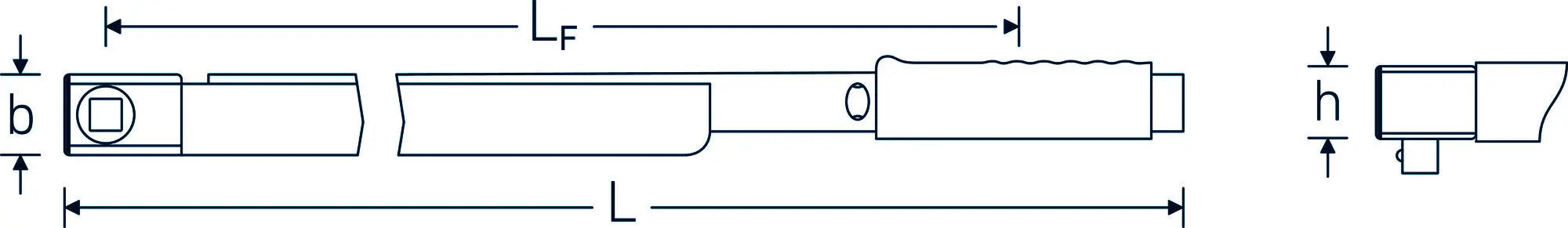

Product Dimension (Refer Image):
- Width b Size: 45mm
- LF: 938mm
