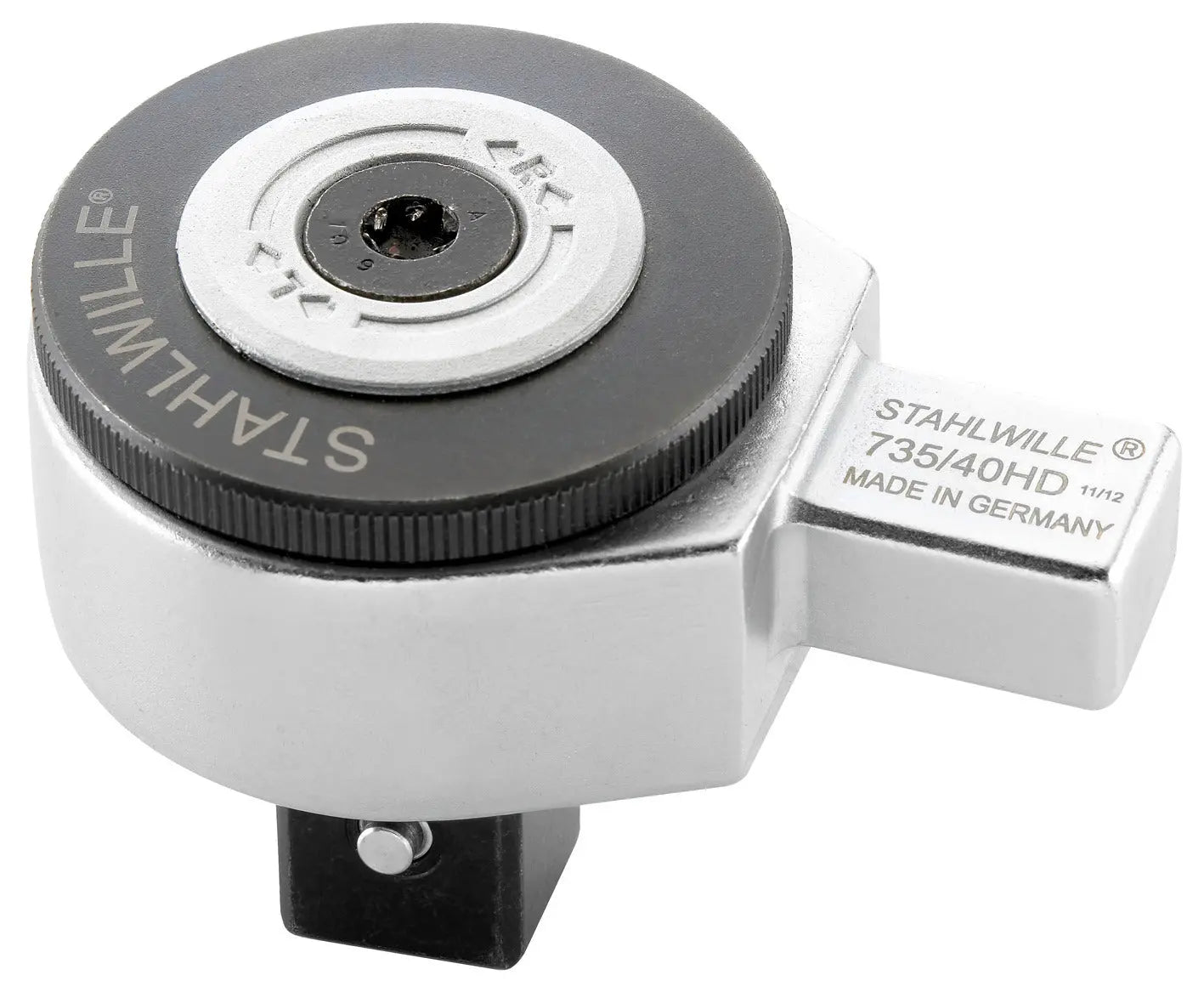

Stahlwille Fine-Tooth Ratchet Insert Adapter, Size 40HD - ST 58250065

Experience precision and power with our Fine-Tooth Ratchet Insert Adapter, designed for seamless engagement in tight spaces. With its smooth 72-tooth mechanism, you'll enjoy quick, efficient adjustments and enhanced torque control, making every project simpler and more effective.

Features:

• Robust and smooth-running ratchet insert adapter for torque wrenches with a square drive
• 60 teeth enable a working angle of only 6 deg - for efficient working in confined spaces, e.g. in the engine compartment
• The reversible mechanism allows quick direction changes without having to change the plug - optimal for frequently changing screw directions
• The integrated ball lock ensures that the socket wrench remains in place even at high torques
• Made from durable Chrome Alloy Steel and additionally chrome-plated for maximum durability and wear protection

Properties:

• For torque wrenches with interchangeable insert system
• Reversible (also available as a clockwise-only ratchet on request)
• Caution! Adjust the setting on the torque wrench for size 40HD

Product Highlights:

• Quick change of direction
  • Our ratchet insert adaptor is equipped with a finely tuned switch plate for lightning-fast direction change. Unlike conventional lever mechanisms, the rotating wheel prevents accidental adjustment - even in confined spaces or when working with gloves
• Full precision in a minimum of space
  • The high-quality fine toothing with 60 teeth allows a working angle of only 6 deg. This allows you to work in a controlled and efficient manner - even where there is hardly any space for tool movement. Ideal for precise bolted joints in tight installation conditions
• High work safety
  • The square drive allows the ratchet to be quickly and easily adapted to different applications and situations. The integrated ball lock ensures that the socket wrench remains securely in place even at high torques
• High quality

Specifications:

• Size: 40HD
• External Square Drive: 3/4 in
• Height (h): 36mm
• Number of Teeth: 60
• Internal Square Tool Holder Size: 14 x 18mm
• Working Angle: 6 deg
• Maximum Torque: 650 N.m
• Weight: 725 g

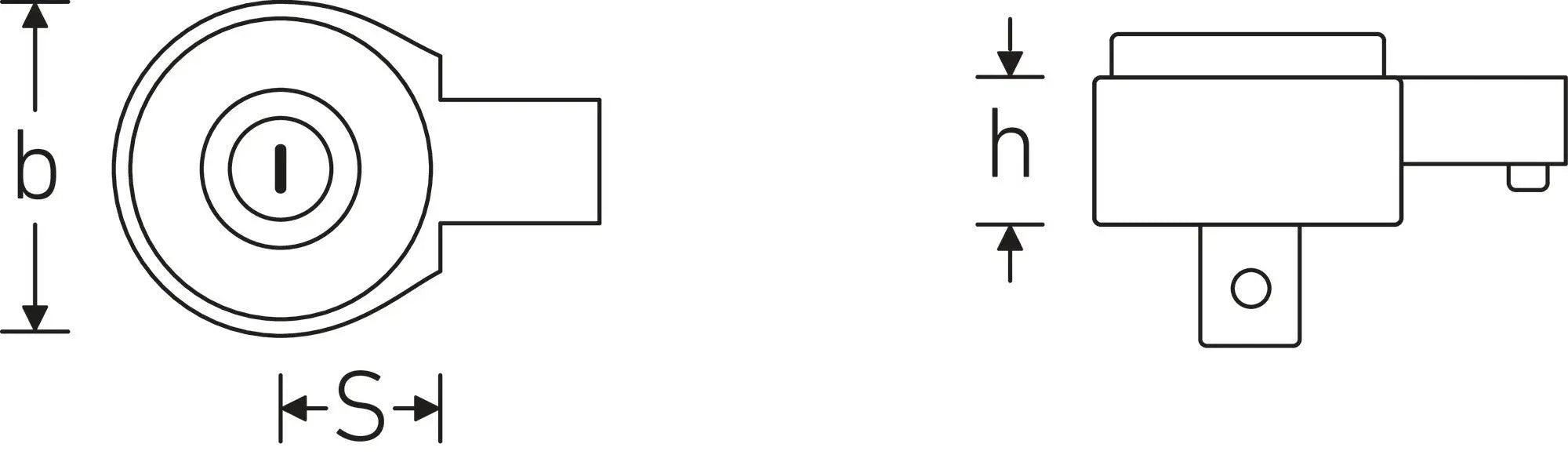

Refer Line Drawing Image:

• S Size: 30mm
• Width (b): 58mm
