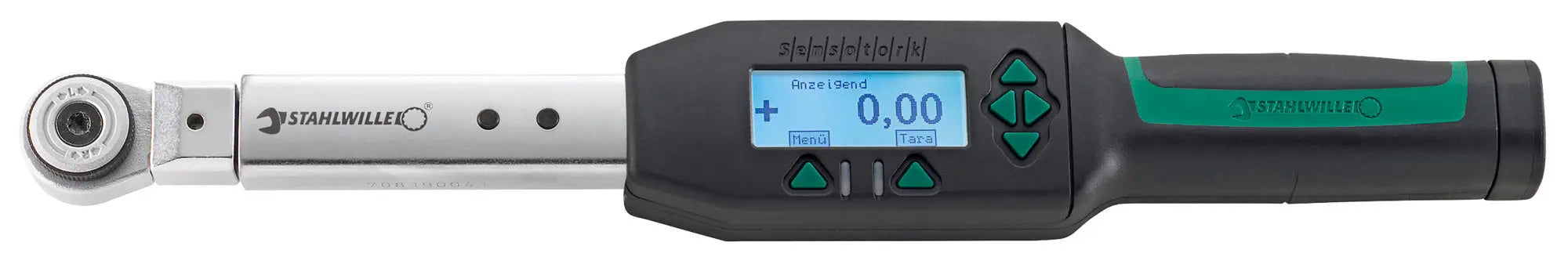

Stahlwille SENSOTORK Electronic Angle Torque Wrench with Reversible Ratchet and Plastic Case - ST 96501606

The Angle Torque Wrench is a specialized tool designed for precise fastening of fasteners at a specific angle, ensuring accurate and consistent torque control. It is commonly used in applications where exact angular rotation is required, such as in automotive, aerospace, and heavy machinery industries. This wrench features a clear, easy-to-read scale or digital display to provide accurate measurements, reducing the risk of over-tightening or under-tightening bolts.

Features:

• Torque and angle are simultaneously visible
• Convenient angle measurement across a very wide angle range
• Display deviation value, angle +/-1 deg +/-1 digit up to 100 deg, >100 deg at least 1% +/- 1 digit
• Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
• The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change
• Accuracy counts - uncertainty is reduced to a minimum to guarantee accurate readings

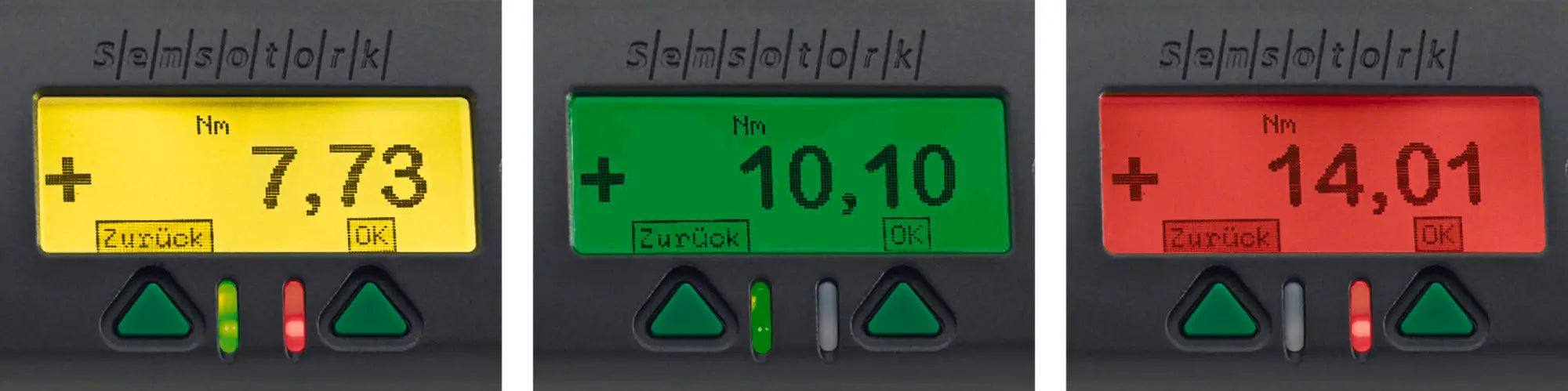

• Multisensory - The torque achieved is indicated by visual, audible and tactile signals - with a multicolored backlit LED display, acoustic signal and vibration

Specifications:

• Battery Type: Mignon (AA) 1.5V
• External Square Drive: 3/8 in
• Overall Height: 24mm
• Overall Length: 378mm
• Measuring Range: 3 - 60 Nm
• Size: 6
• Size of Tool Holder Internal Square: 9 x 12mm
• Overall Weight: 1.89 lbs

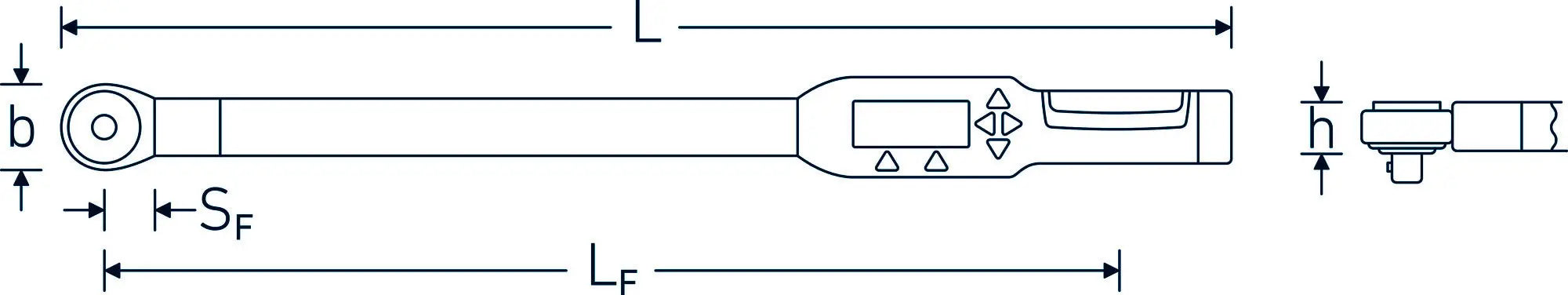

Product Dimension (Refer Image):

• Width b Size: 33mm
• SF: 17.5mm
• LF: 299mm
