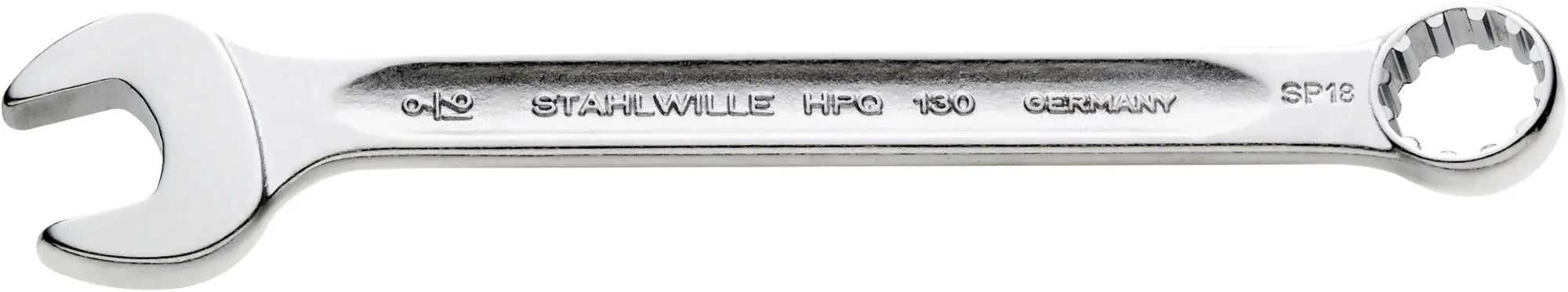

Stahlwille Combination Wrench, 5/16 in x 5/16 in - ST 40582020

Unlock versatility and efficiency in your toolkit with a combination wrench. Designed with an open-end and a box-end, these wrenches provide superior grip and leverage for a variety of fasteners. Crafted from durable materials, they offer long-lasting performance and easy maneuverability in tight spaces.

Features:

• Made in Germany
• Special manufacturing process makes thin-walled rings possible - perfect for working in places that are difficult to access
• The AS-Drive profile prevents damage to the fastener caused by force being applied to the edges of the nut or bolt
• The double-T profile gives the wrench outstanding flexural strength
• The distinctive STAHLWILLE rounded finish ensures the wrench is comfortable to hold and is easy to grip, ensuring safe working, even with oily hands

Properties:

• Imperial, identical end sizes
• Jaw angled 15 deg
• With Spline-Drive profile
• Ring-end cranked 15 deg
• Durable, slim and lightweight design
• High flexural strength due to double-T profile
• STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
• Drop-forged, hardened, and cooled in an oil bath
• HPQ high performance steel, chrome-plated
• Fed. Spec. GGG-W-636 E / MS-33787 / MIL-W-8982

Technologies and Features:

• High Performance Quality (HPQ)
  • Our HPQ tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines
• Double-T profile
  • Our ring, open-ended and combination wrenches have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight
• Thin-walled rings
  • The thin-walled diameter of our rings makes it easier to work in confined spaces. The ring wall is deeper than standard nuts, which prevents jamming
• Offset Shaft Design
  • Our wrenches are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation

Product Highlights:

• A solution for every situation
  • Our combination wrenches are available in different versions (metric, imperial, long, with Spline-Drive profile) and as sets in textile bags, roll-up tool bags or TCS inlays

Specifications:

• Drive Profile: Spline-Drive
• Length (L): 115mm
• Size 1: 5/16 in
• Size 2: 5/16 in
• Size Drive Profile: 10
• Weight: 21 g

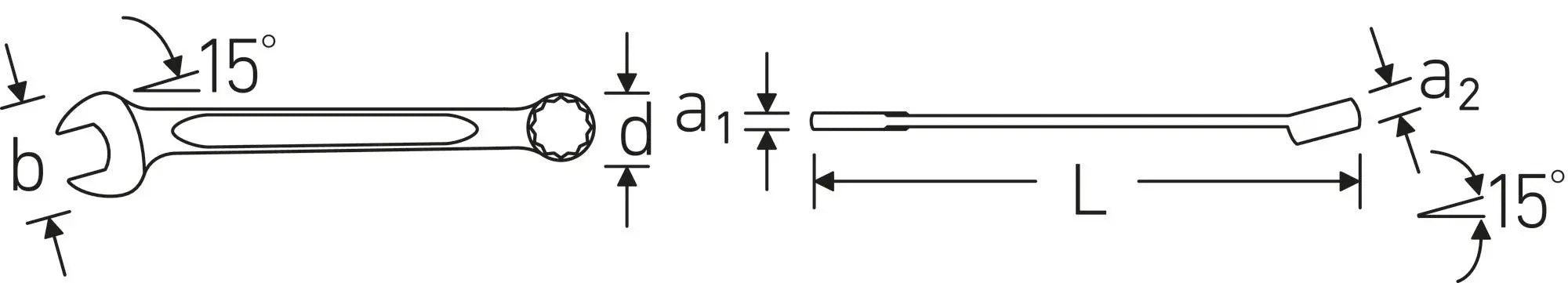

Refer Line Drawing Image:

• Width (b): 17mm
• a1 Size: 4.5mm
• a2 Size: 6.4mm
• d Size: 12.2mm
