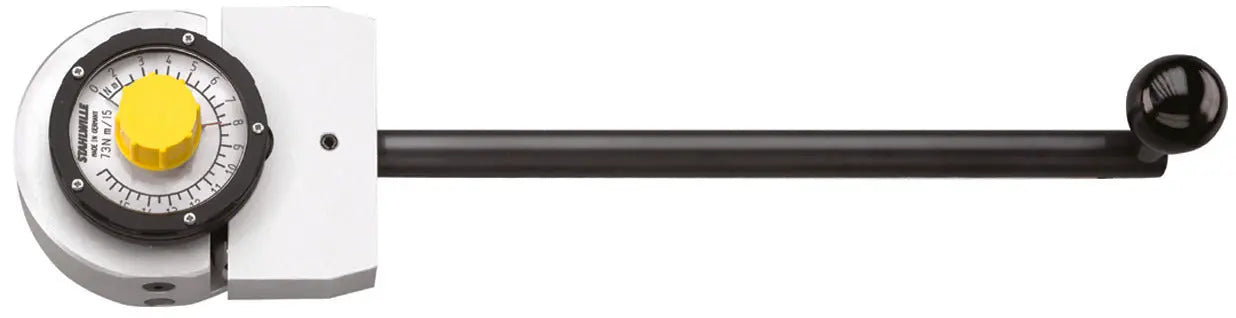

Stahlwille Torque Wrench Friction Meter - ST 50240015
A Torque Wrench Friction Meter is a specialized tool used to measure the frictional losses in torque wrenches. By assessing the frictional force, it ensures that torque readings are accurate and reliable. This meter is essential for calibrating and maintaining torque wrenches, particularly in precision applications such as automotive repair, aerospace, and manufacturing.
Features:
- Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
- Indicating type
- Permanently installed square drive for clockwise use
- Trailing pointer dial
- No "needle wobble" during measurements
- Lighter construction due to use of aluminum
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Display deviation value +/- 4%
-
Specifications:
- External Square Drive: 1/2 in
- Overall Height: 50mm
- Overall Length: 298.5mm
- Measuring Range: 2 - 15 Nm
- Overall Weight: 1.49 lbs

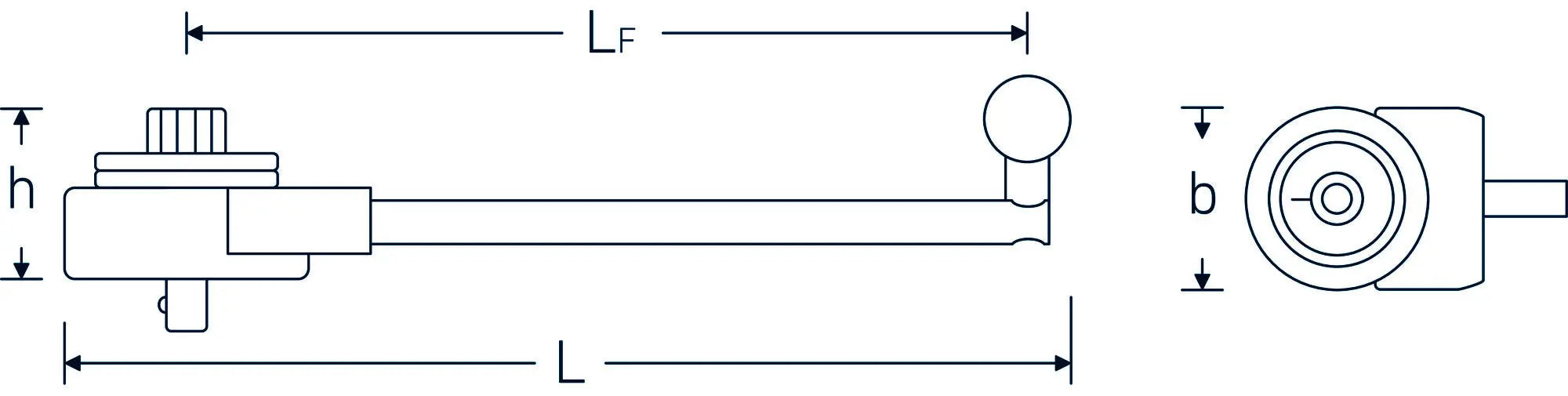

Product Dimension (Refer Image):
- Width b Size: 72mm
- LF: 250mm
