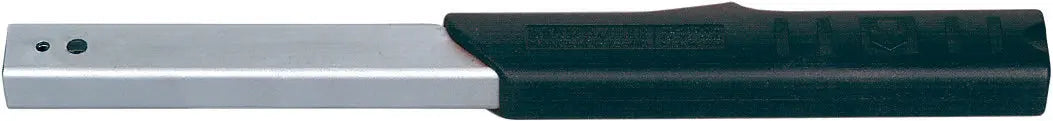

Stahlwille MANOSKOP Series Torque Wrench with Holder for Insert Tools, Size 4 - ST 50010004
The Series Torque Wrench delivers precision and reliability, ensuring accurate torque settings for any project. With its durable construction, easy-to-read scale, and ergonomic grip, this essential tool guarantees professional results every time, whether you're a DIY enthusiast or a seasoned mechanic.
Properties:
- Clicking type with dual stop signal
- For work on assembly lines or for repetitive production tasks
- No adjustment scale, therefore adjustment with test equipment is required, e.g. With the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl calibration system No. 7794, Or calibration systems No. 7706. 7791)
- With holder for interchangeable insert tools
- Particularly slim design
- Handle and shaft made of square steel pipe
- Further loading after clicking or loads in the opposite direction of operation (up to the max. Measurement range of the torque wrench) do not affect the trigger mechanism, which protects it from damage
- Counter-clockwise tightening by turning the insert tool over
- Can be supplied pre-set at defined torque value and with certification (additional charge applies)
- Accuracy +/- 4%
Specifications:
- Size: 4
- Height (h): 18mm
- Length (L): 201mm
- MA: 4 N.m
- Measuring Range: 4 - 40 N.m, 3 - 30 ft.lb
- Nominal Value: 40 N.m
- Internal Square Tool Holder Size: 9 x 12mm
- Weight: 500 g

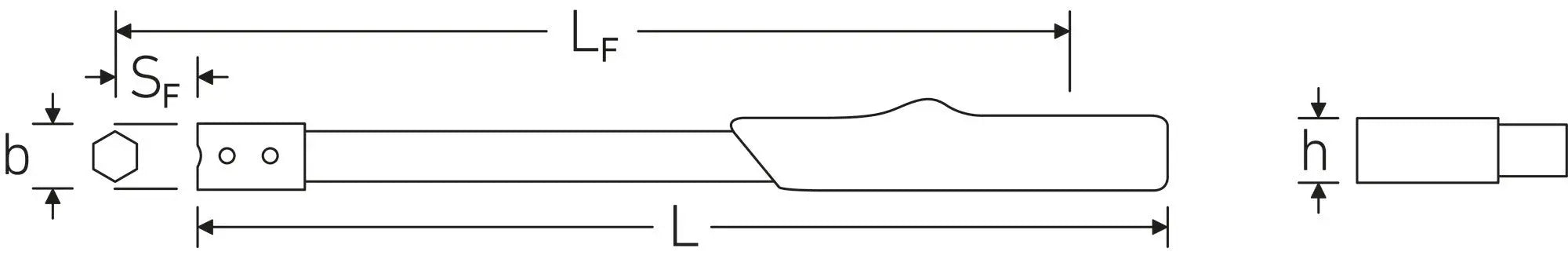

Refer Line Drawing Image:
- LF: 172mm
- SF Size: 17.5mm
- Width (b): 22mm
