Stahlwille MANOSKOP Series Torque Wrench with Fixed Ratchet, 1.5 N.m - ST 50100001
Our Series Torque Wrench offers precision and reliability for all your fastening needs. Designed with an easy-to-read scale and a comfortable grip, this tool ensures accurate torque settings, reducing the risk of over-tightening and enhancing safety in every project.
Properties:
- Clicking type with dual stop signal
- For work on assembly lines or for repetitive production tasks
- No adjustment scale, therefore adjustment with test equipment is required, e.g. With the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl calibration system No. 7794, Or calibration systems No. 7706. 7791)
- Measurements are independent of the point of application of force
- For controlled clockwise tightening
- With permanently installed ratchet
- Particularly slim design
- Handle and shaft made of square steel pipe
- Clicking mechanism insensitive to continuous loads and counter-loads (up to the max. Measurement range of the torque wrench)
- Can be supplied pre-set at defined torque value and with certification (additional charge applies)
- Accuracy +/- 4%
Specifications:
- External Square Drive: 1/4 in
- Height (h): 18mm
- Length (L): 173.5mm
- MA: 1.5 N.m
- Measuring Range: 1.5 - 12.5 N.m, 1.0 - 9.0 ft.lb
- Nominal Value: 12.5 N.m
- Number of Teeth: 22
- Weight: 335 g

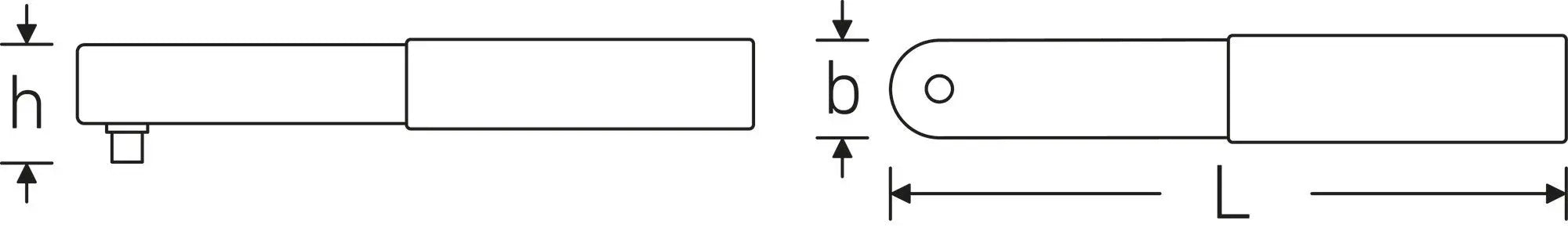

Refer Line Drawing Image:
