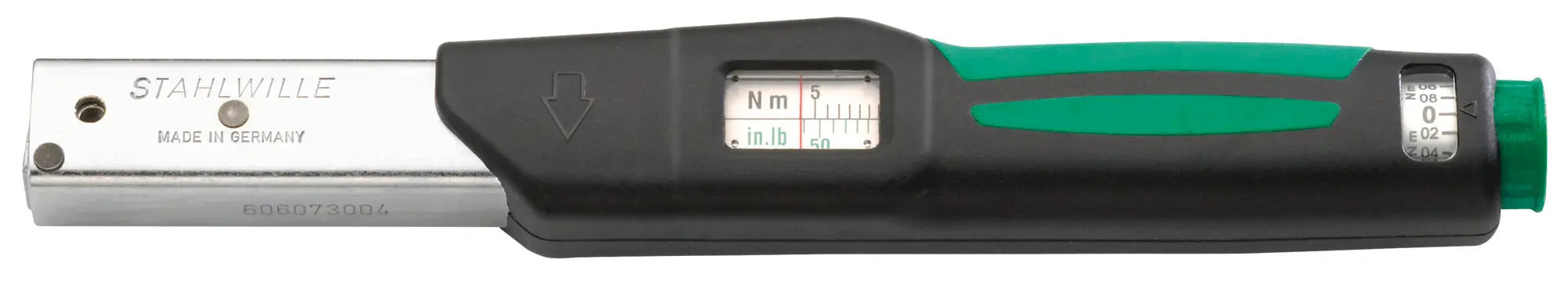

Stahlwille MANOSKOP Service Torque Wrench with Holder for Insert Tools, Size 2 - ST 50181102

Achieve precise torque settings with our Service Torque Wrench, designed for durability and accuracy. Featuring a user-friendly scale and robust construction, this essential tool ensures optimal performance and safety for every application, whether at home or in the workshop.

Properties:

• Clicking type with dual stop signal
• No reset to '0' required
• The measuring element is only under load when a force is applied
• Fast, precise adjustment with QuickSelect quick adjustment
• Dual scale N.m/in.lb
• Mount for interchangeable bits/sockets
• With QuickRelease safety lock
• Clicking mechanism insensitive to continuous loads and counter-loads (up to the max. Measurement range of the torque wrench)
• Counter-clockwise tightening by turning the insert tools over
• Optimal calibration with perfectControl calibration systems No. 7794 Or calibration systems No. 7706, 7791
• Easy adjustment without disassembly via 2 external adjustment screws
• Supplied in a textile bag (from size 65)
• With 2-component handle
• Calibration certificate in accordance with DIN EN ISO 6789-2:2017
• Accuracy +/- 3% (size 2, a/2 +/- 4%)

Technologies and Features:

• QuickRelease
  • The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers - The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons
• QuickSelect
  • Lightning-fast target value setting - Unlock the adjustment knob, set the value, and lock the knob again
• Low-wear bending beam system
  • Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to '0' after use
• 2-Component handle
  • Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation
• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools

Product Highlights:

• Adjustment does not require disassembly
  • Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum and minimum values
• Clicking dual stop signal
  • When the target torque is reached, MANOSKOP 730N provides a noticeable tactile dual stop signal
• Clear fine adjustment
  • The easy-to-use and easy-to-read double scale in N.m/ft.lb allows precise and easy target torque adjustment for reliable and accurate application

Specifications:

• Size: 2
• Fine Scale Division: 0.2 N.m
• Height (h): 23mm
• Length (L): 275mm
• MA: 4 N.m
• Measuring Range: 4 - 20 N.m, 40-180 in.lb
• Nominal Value: 20 N.m
• Scale Division: 1 N.m, 10 in.lb
• Internal Square Tool Holder Size: 9 x 12mm
• Weight: 737 g

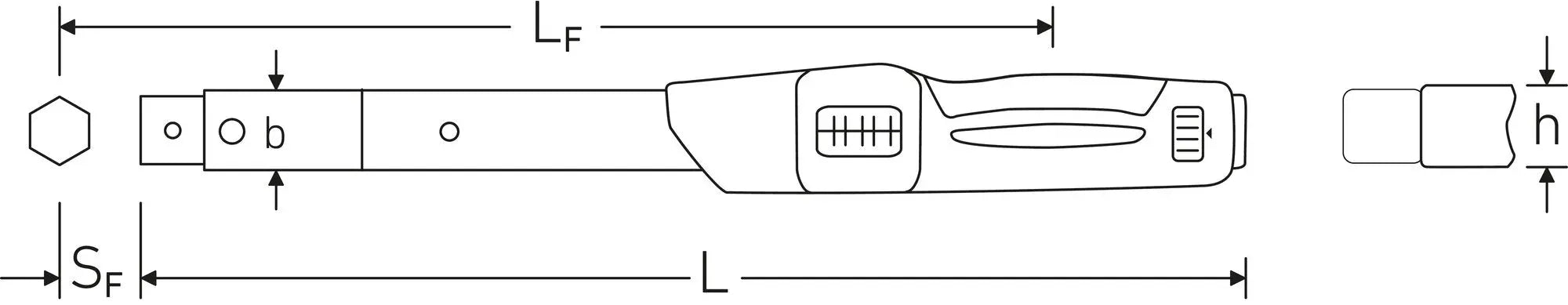

Refer Line Drawing Image:

• LF: 226mm
• SF Size: 17.5mm
• Width (b): 28mm
