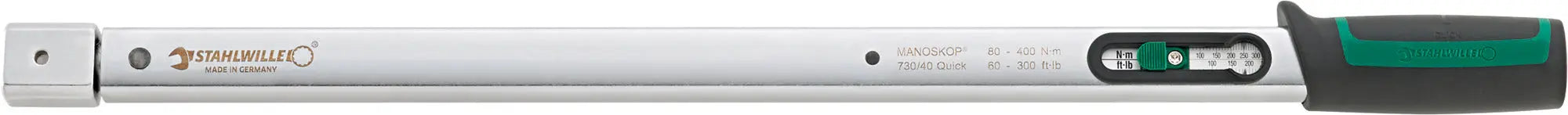

Stahlwille MANOSKOP Service Torque Wrench with Holder for Insert Tools, Size 40 - ST 50184040

Achieve precise torque settings with our Service Torque Wrench, designed for durability and accuracy. Featuring a user-friendly scale and robust construction, this essential tool ensures optimal performance and safety for every application, whether at home or in the workshop.

Features:

• Robust, low-maintenance mechanical torque wrench for controlled screw tightening
• Clicking occurs with a clear haptic and acoustic click signal
• Quick torque setting via the easy-to-operate clamping lever in the handle
• Durable, low-wear flexible rod clicking system eliminates the need to reset to '0'
• Quick adjustment from the outside possible without disassembly

Properties:

• Clicking type with dual stop signal
• No reset to '0' required
• The measuring element is only under load when a force is applied
• With holder for interchangeable insert tools
• With QuickRelease safety lock

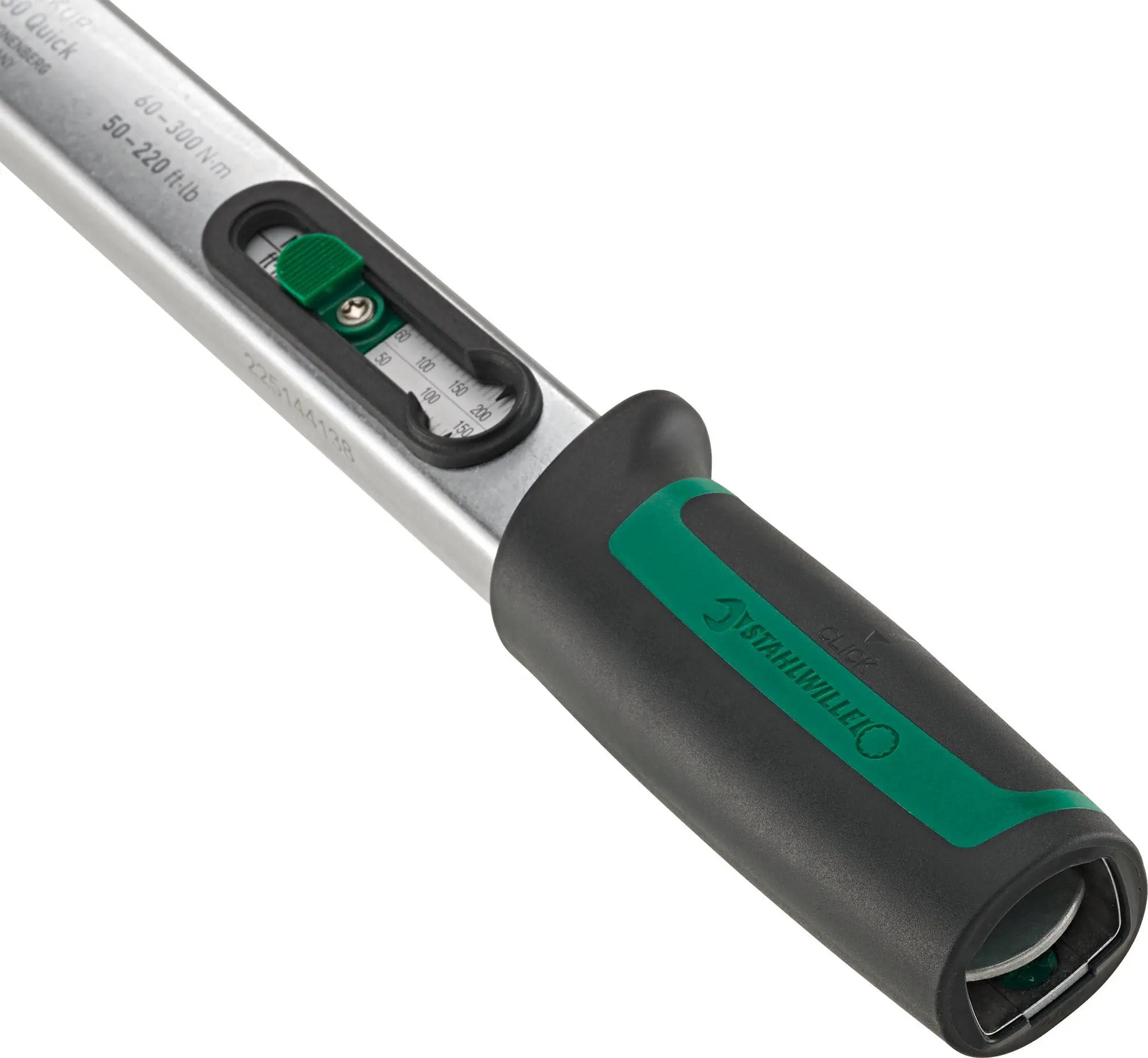

• Non-slip adjuster with thumb recess for quick torque adjustment
• Fine, tapered pointers

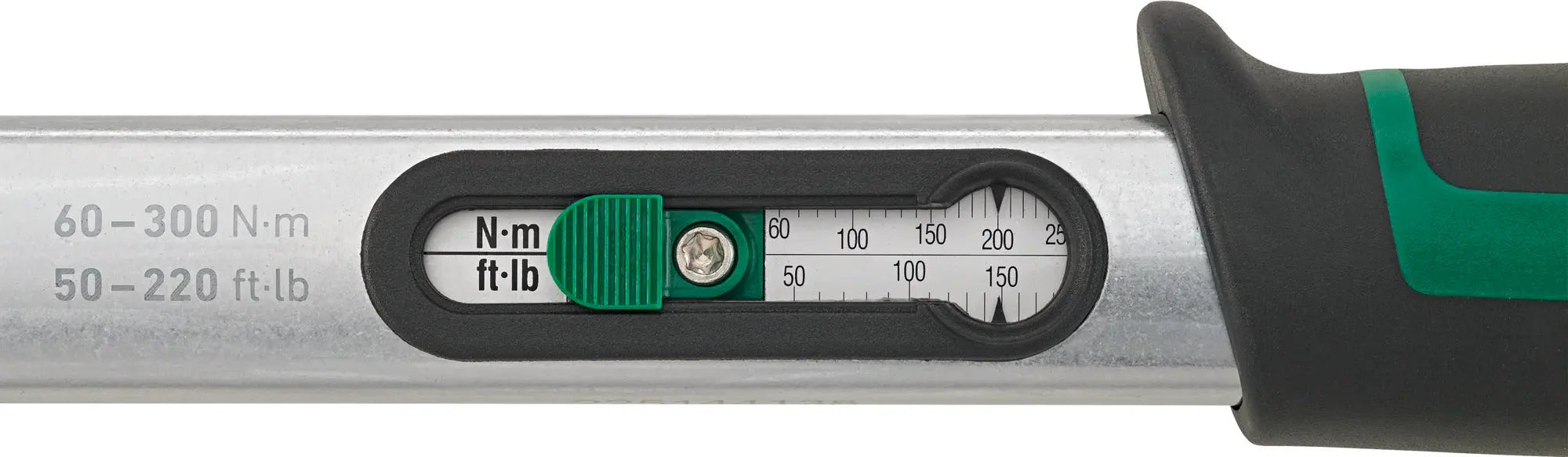

• Dual scale N.m/ft.lb
• Also available on request as a N.m only version without dual scale
• Counter-clockwise tightening by turning the insert tool over
• Clicking mechanism insensitive to continuous loads and counter-loads (up to the max. Measurement range of the torque wrench)
• Optimal calibration with perfectControl calibration systems No. 7794 Or calibration systems No. 7706, 7791
• Easy adjustment without disassembly via 2 external adjustment screws
• With 2-component handle
• Calibration certificate in accordance with DIN EN ISO 6789-2:2017
• Accuracy +/-4 %

Technologies and Features:

• QuickRelease
  • The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers - The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons
• QuickSelect
  • Lightning-fast target value setting - Unlock the adjustment knob, set the value, and lock the knob again
• Low-wear bending beam system
  • Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to '0' after use
• 2-Component handle
  • Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation
• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools

Product Highlights:

• Rapid adjustment
  • Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess

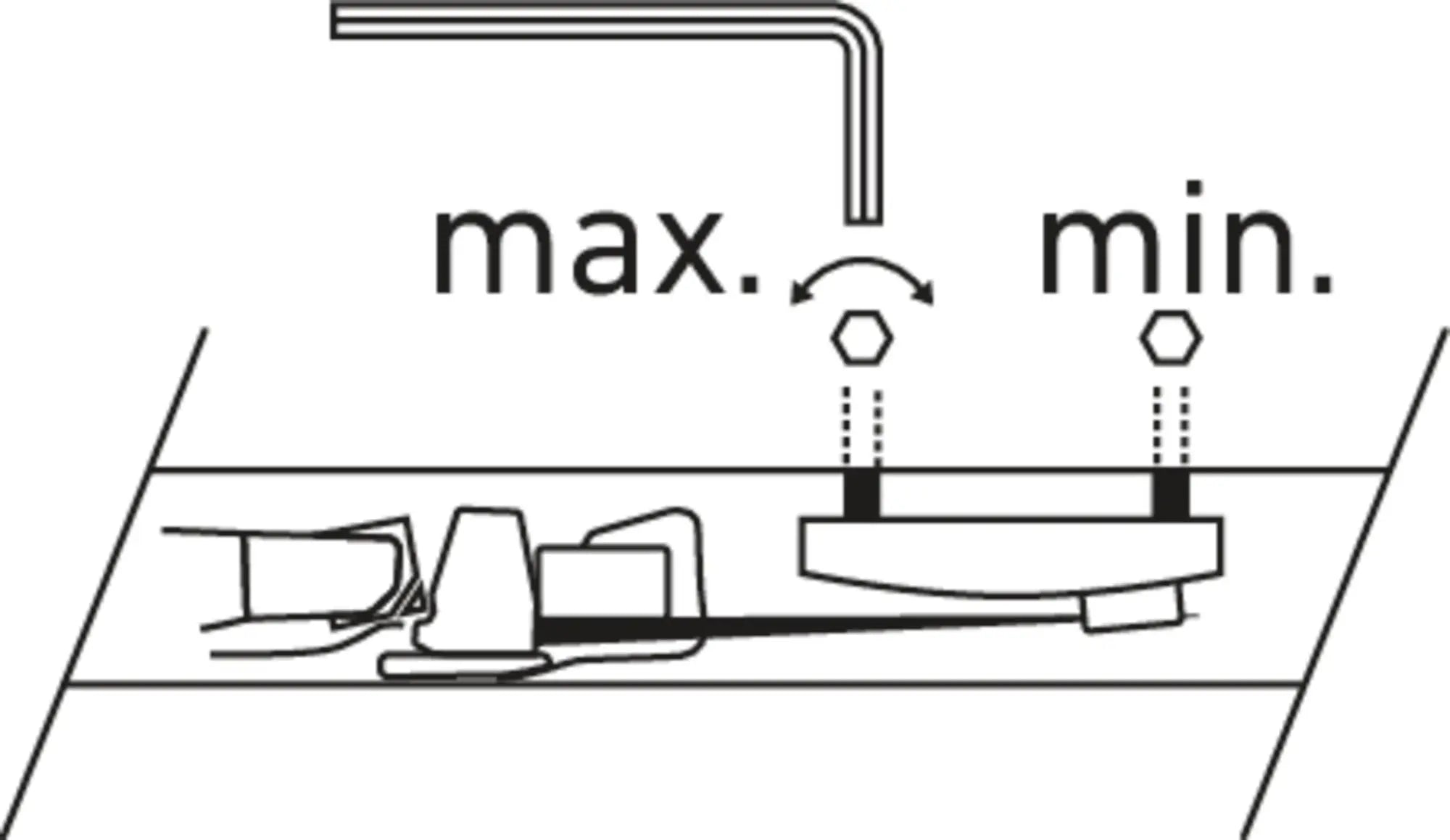

• Adjustment does not require disassembly
  • Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum and minimum values

Specifications:

• Size: 40
• Height (h): 23mm
• Length (L): 590mm
• Measuring Range: 80 - 400 N.m, 60 - 300 ft.lb
• Scale Division: 10 N.m, 10 ft.lb
• Internal Square Tool Holder Size: 14 x 18mm
• Weight: 1540 g

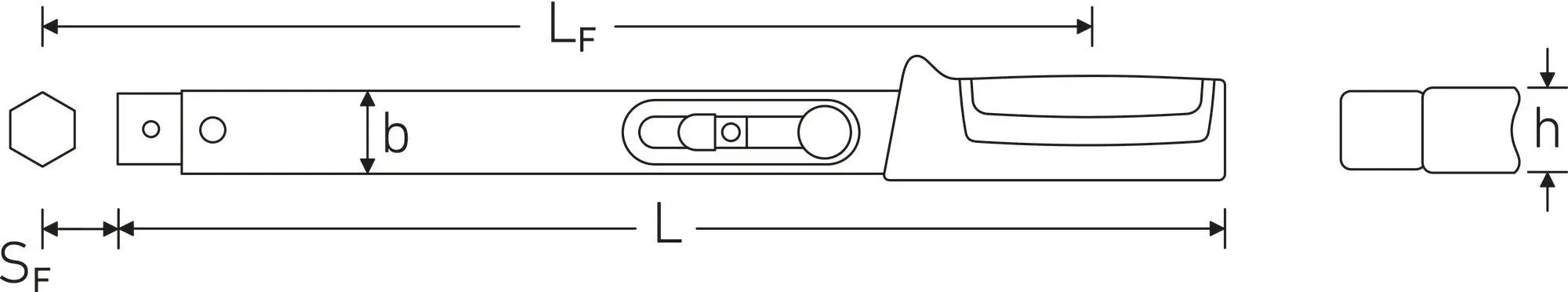

Refer Line Drawing Image:

• LF: 570mm
• SF Size: 25mm
• Width (b): 28mm
