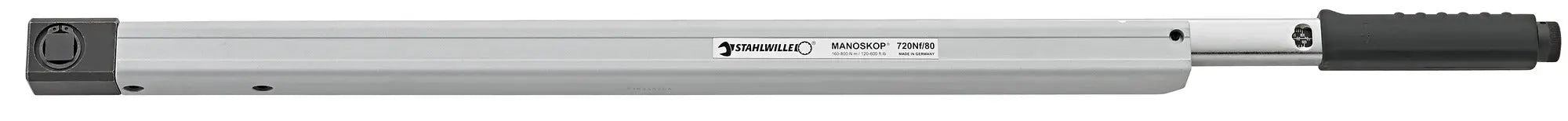

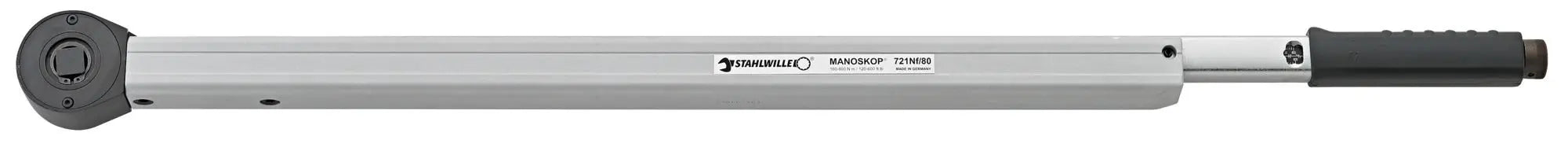

Stahlwille MANOSKOP Standard Torque Wrench with Fixed Ratchet, Size 80 - ST 50200081

Achieve precise torque specifications with our Standard Torque Wrench, designed for accuracy and ease of use. Featuring a durable construction and a clear measurement scale, this essential tool ensures your fasteners are tightened to perfection, enhancing safety and performance in every project.

Properties:

• Clicking type with dual stop signal
• Quick adjustment thanks to easy-to-operate locking lever in handle
• With permanently installed ratchet
• Dual scale N.m/ft.lb
• Anti-clockwise tightening through a reversible square
• All sensitive parts are protected by the robust tubular steel housing in alu-U-profile
• Optimal calibration with perfectControl calibration systems No. 7794 Or calibration systems No. 7706, 7791
• Easy adjustment without disassembly via 2 external adjustment screws
• Delivered in a textile bag
• Calibration certificate in accordance with DIN EN ISO 6789-2:2017
• Accuracy +/- 4%

Technologies and Features:

• Low-wear bending beam system
  • Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to '0' after use
• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools

Product Highlights:

• Adjustment does not require disassembly

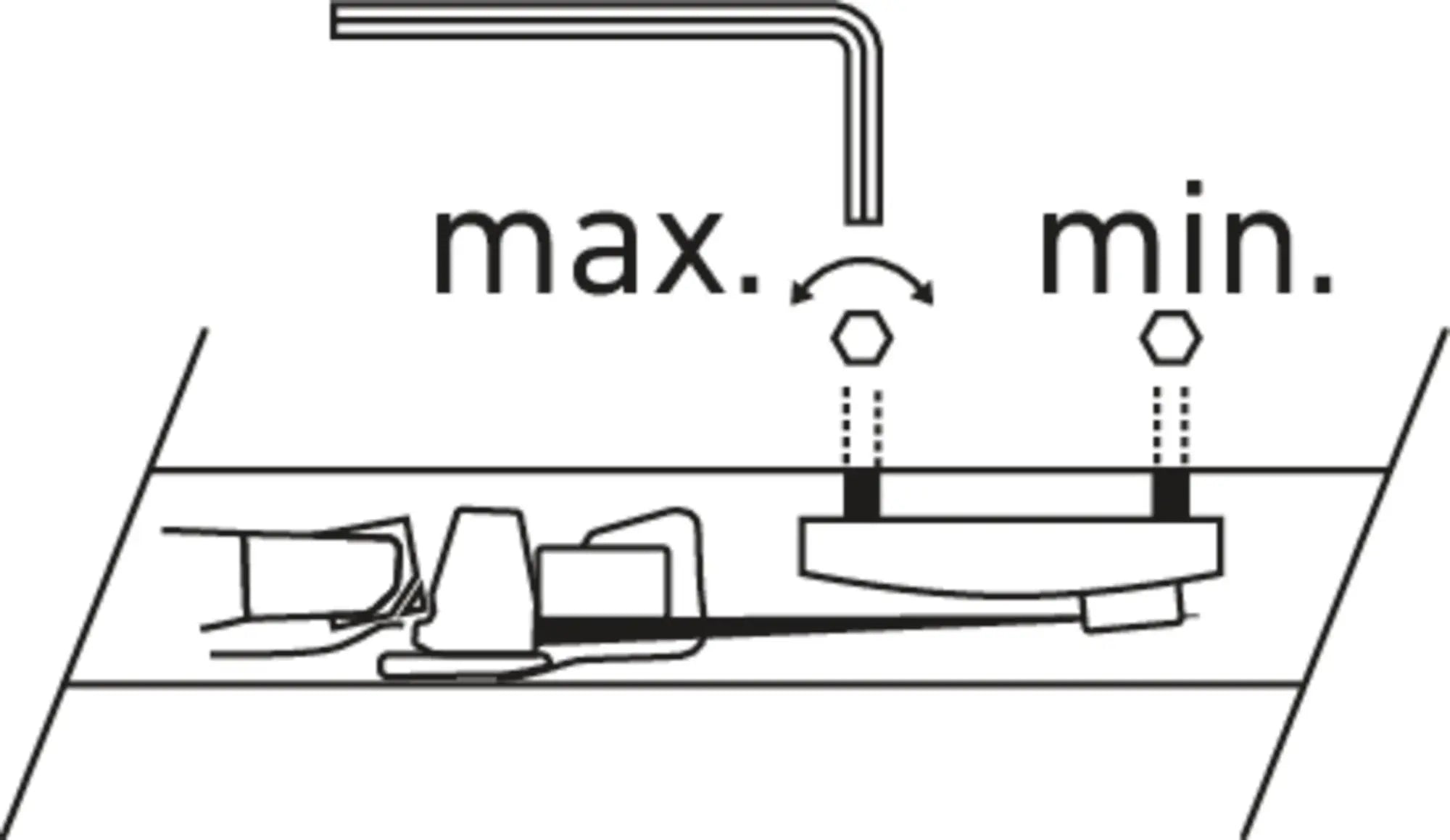

  • Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values

Specifications:

• Size: 80
• External Square Drive: 3/4 in
• Height (h): 42mm
• Length (L): 1050.5mm
• MA: 160 N.m
• Measuring Range: 160 - 800 N.m, 120 - 600 ft.lb
• Nominal Value: 800 N.m
• Number of Teeth: 30
• Scale Division: 20 N.m, 20 ft.lb
• Weight: 6380 g

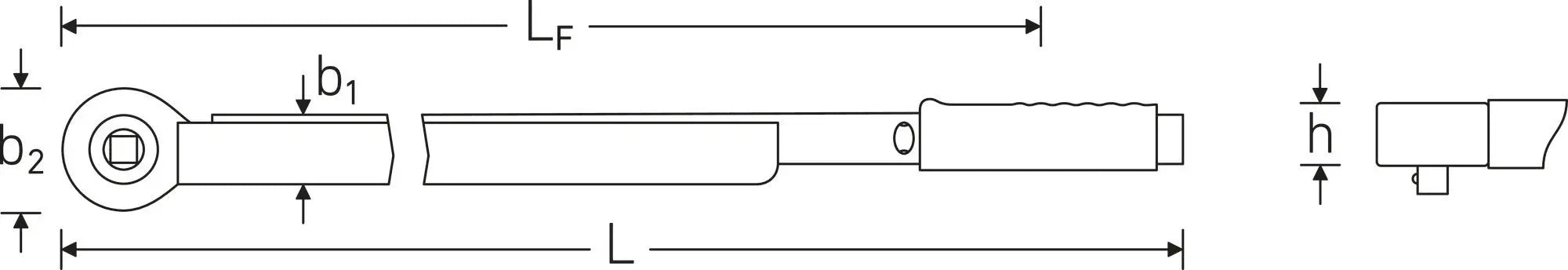

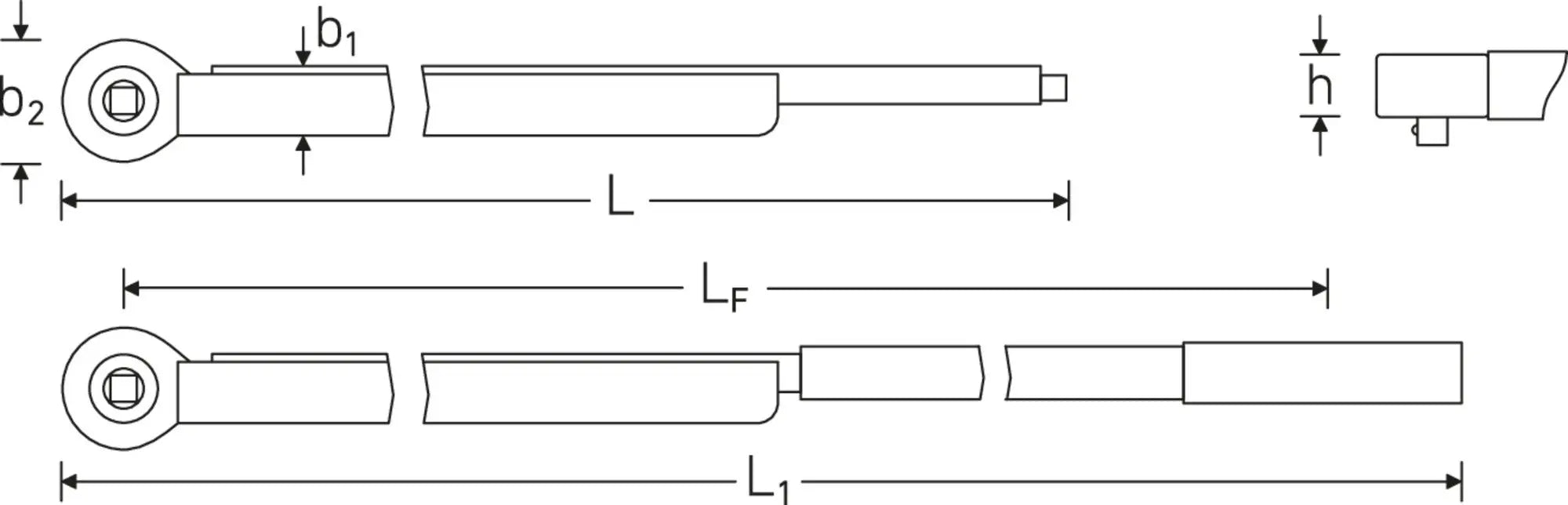

Refer Line Drawing Image:

• LF: 938mm
• b1 Size: 46.5mm
• b2 Size: 76mm
