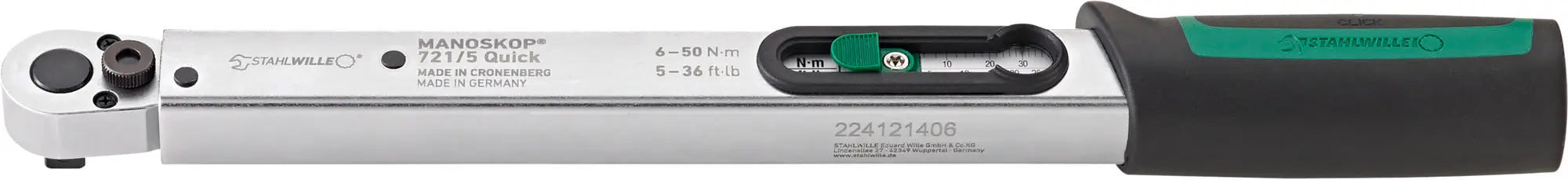

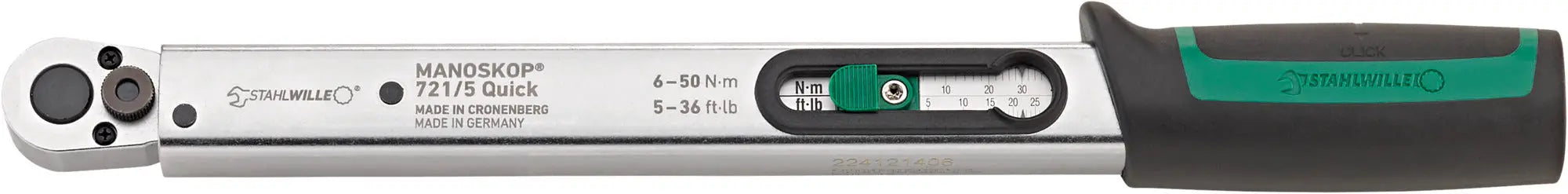

Stahlwille MANOSKOP Standard Torque Wrench with Fixed Ratchet, Size 5 - ST 50204005

Achieve precise fastening with our Standard Torque Wrench, designed for accuracy and reliability. Featuring an easy-to-read scale and durable construction, it ensures you apply the perfect amount of torque every time, preventing over-tightening and damage. Ideal for automotive, construction, and DIY projects.

Features:

• Made in Germany - STAHLWILLE setting torque wrench, length 352 mm
• Patented, low-wear release system with flexible rod
• Lightning-fast and precise torque adjustment
• Continued loading after release or loading in the opposite direction will not damage the torque wrench

Properties:

• Clicking type with dual stop signal
• No reset to "0" required
• The measuring element is only under load when a force is applied
• Quick adjustment thanks to easy-to-operate locking lever in handle
• Non-slip adjuster with thumb recess for quick torque adjustment
• Dual scale N.m/ft.lb
• Clicking mechanism insensitive to continuous loads and counter-loads (up to the max. Measurement range of the torque wrench)
• Optimal calibration with perfectControl calibration systems No. 7794 Or calibration systems No. 7706, 7791
• Easy adjustment without disassembly via 2 external adjustment screws
• For controlled clockwise tightening
• With 2-component handle
• Calibration certificate in accordance with DIN EN ISO 6789-2:2017
• Accuracy +/- 4%

Technologies and Features:

• Low-wear bending beam system
  • Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to '0' after use
• 2-Component handle
  • Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation
• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools

Product Highlights:

• Rapid adjustment
  • Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess
• Adjustment does not require disassembly

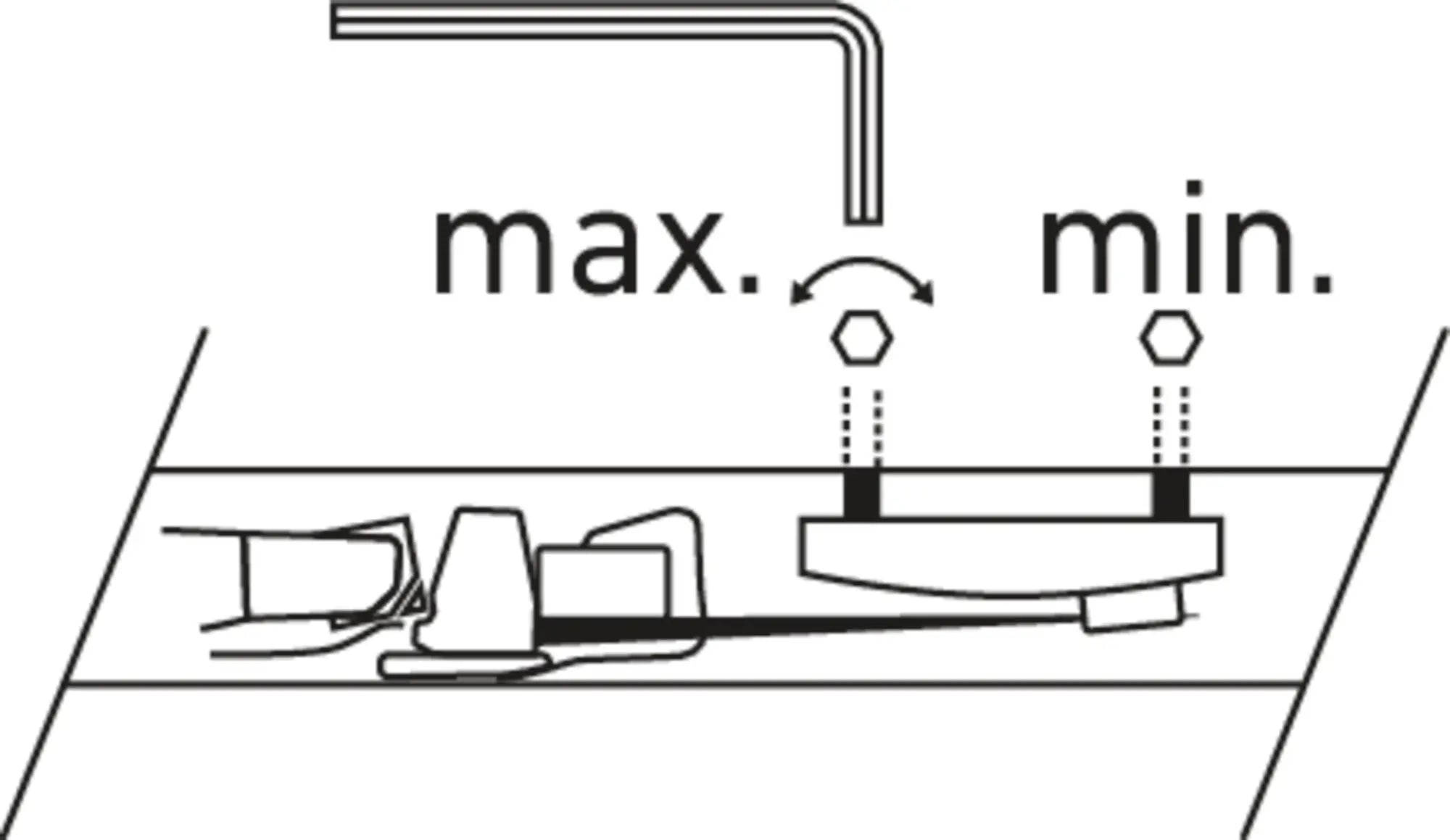

  • Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum and minimum values

Specifications:

• Size: 5
• External Square Drive: 3/8 in
• Length (L): 352mm
• MA: 6 N.m
• Measuring Range: 6 - 50 N.m, 5 - 36 ft.lb
• Nominal Value: 50 N.m
• Number of Teeth: 30
• Scale Division: 2 N.m, 1 ft.lb
• Weight: 880 g

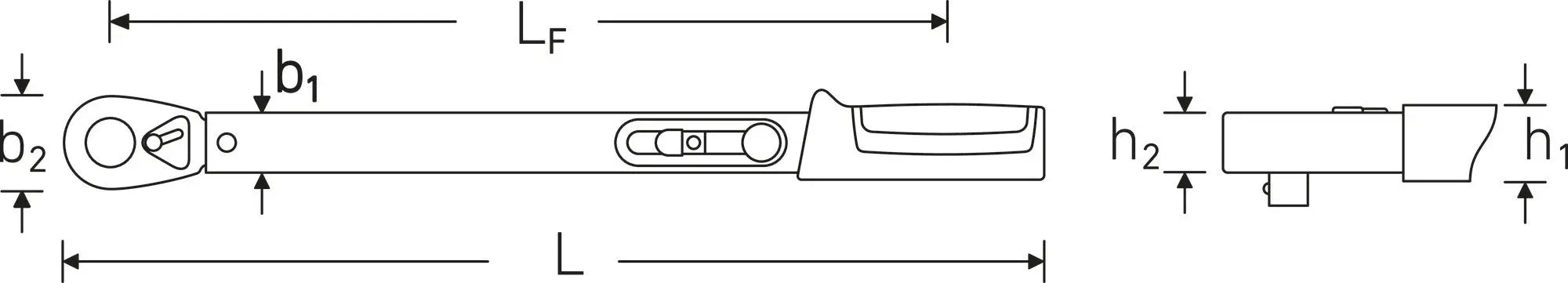

Refer Line Drawing Image:

• LF: 293mm
• Height (h1): 23mm
• Height (h2): 14.5mm
• b1 Size: 28mm
• b2 Size: 27.5mm
