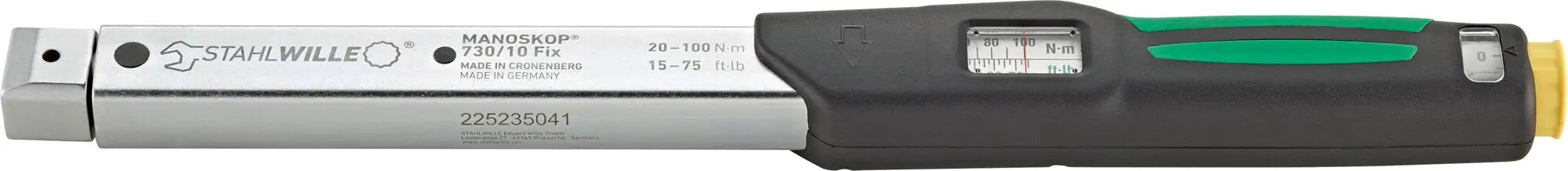

Stahlwille MANOSKOP Service Torque Wrench with Holder for Insert Tools, Size 10 - ST 96503010

The MANOSKOP Service Torque Wrench is expertly engineered for precision and reliability, featuring a holder designed specifically for insert tools. With a torque range of 10 Nm, this tool ensures accurate measurements for any task, making it essential for mechanics and DIY enthusiasts alike.

Properties:

• For work on assembly lines or for repetitive production tasks
• Clicking type with dual stop signal
• Adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
• The included TORX Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. No adjustment is possible without breaking the seal
• No reset to '0' required
• The measuring element is only under load when a force is applied
• Fast, precise adjustment with QuickSelect quick adjustment
• Dual scale N.m/ft.lb
• Mount for interchangeable insert tools
• With QuickRelease safety lock
• Clicking mechanism insensitive to continuous loads and counter-loads (up to the max. Measurement range of the torque wrench)
• Counter-clockwise tightening by turning the insert tools over
• Optimal calibration with perfectControl calibration systems No. 7794 Or calibration systems No. 7706, 7791
• Easy adjustment without disassembly via 2 external adjustment screws
• With 2-component handle
• In sturdy plastic box (sizes 80-100 in sheet steel box)
• Calibration certificate in accordance with DIN EN ISO 6789-2:2017
• Accuracy +/- 3%

Technologies and Features:

• QuickRelease
  • The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change. In transducers - The QuickRelease safety lock helps you to quickly mount and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons
• QuickSelect
  • Lightning-fast target value setting - Unlock the adjustment knob, set the value, and lock the knob again
• Low-wear bending beam system
  • Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to '0' after use
• Adjustment Lock
  • The target torque can be quickly adjusted using the adjustment knob. The knob can then be removed to prevent subsequent adjustment. The supplied locking screw (TORX Tamper Resistant) and an adhesive seal provide additional protection against tampering
• 2-Component handle
  • Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation
• DIN EN ISO 6789-2
  • Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools

Product Highlights:

• Adjustment does not require disassembly

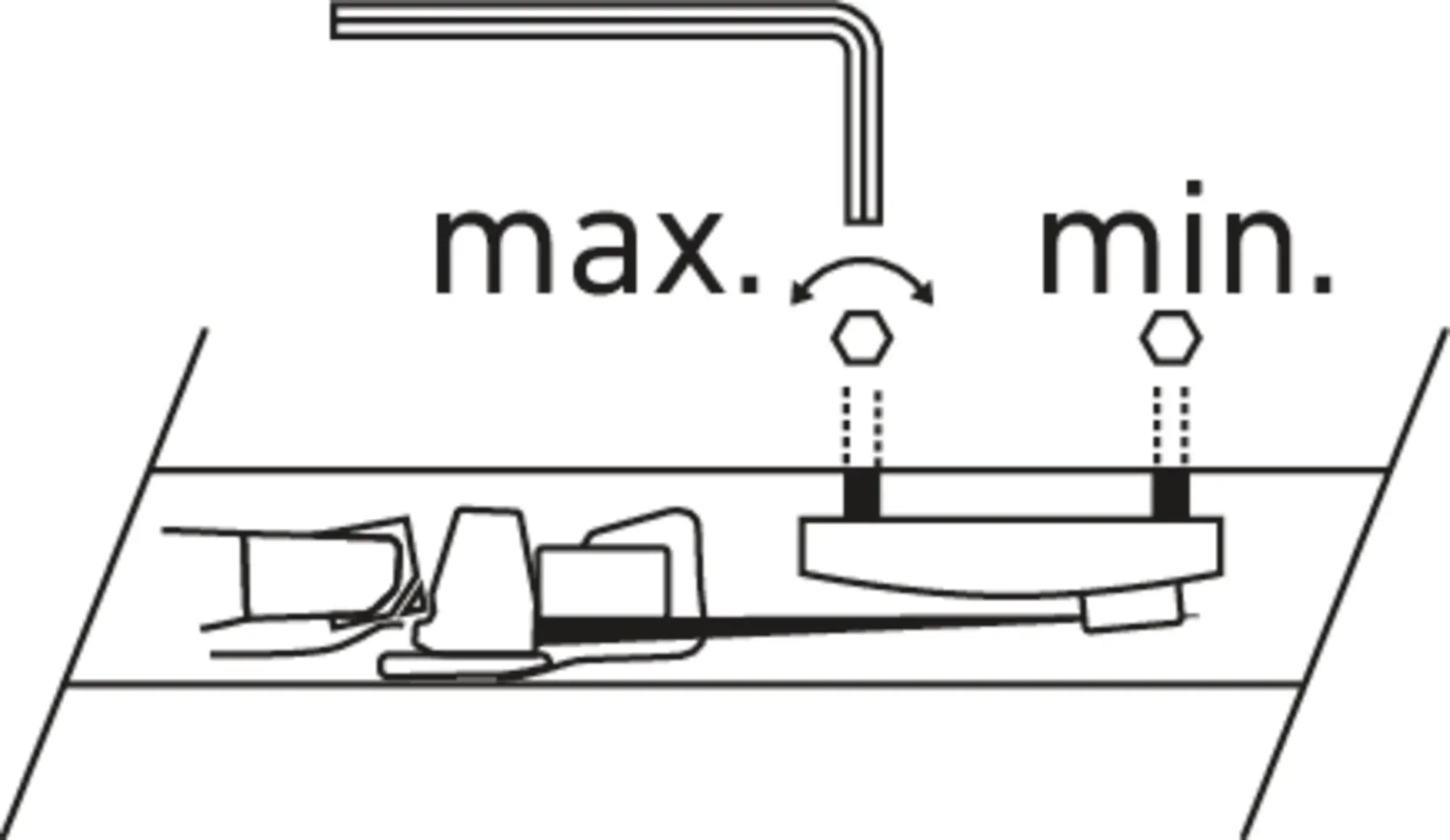

  • Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values
• Clear fine adjustment
  • The easy-to-use and easy-to-read double scale in N.m/ft.lb allows precise and easy target torque adjustment for reliable and accurate application

Specifications:

• Size: 10
• Fine Scale Division: 0.5 N.m
• Height (h): 23mm
• Length (L): 386mm
• MA: 20 N.m
• Measuring Range: 20 - 100 N.m, 15 - 75 ft.lb
• Nominal Value: 100 N.m
• Scale Division: 10 N.m, 2.5 ft.lb
• Internal Square Tool Holder Size: 9 x 12mm
• Weight: 986 g

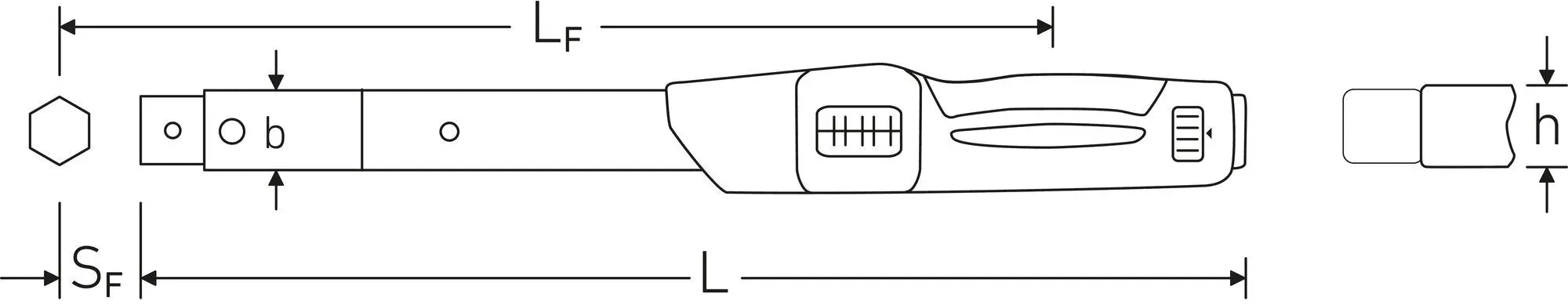

Refer Line Drawing Image:

• LF: 336mm
• SF Size: 17.5mm
• Width (b): 28mm
