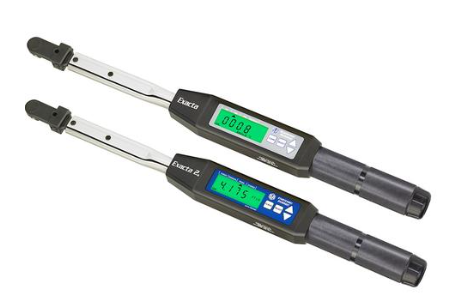

Sturtevant Richmont 1250 Series Exacta 2 Digital Torque Wrench

SKU 10657

Now:

$4,187.52
$0.00
Saved $0.00
% OFF

Product Description

Sturtevant Richmont 1250 Series Exacta 2 Digital Torque Wrench

Specifications:

Part Number 10657
Model Designation 1250 Series Exacta 2 - 600
Capacity 600 ft lb
Dovetail 3/4" SD Ratchet
Lever Length 55.1"/1399 mm
Over All Length 59.7"/1519 mm
Weight 13.0 lb/5.90 kg
1250 Series Exacta® 2 Digital Torque & Angle Wrench
  • Bi-directional +/- 1% Indicated Value from 20% to 100% of tool capacity.
  • Meets/Exceeds the ASME and ISO standards.
  • Angle measurements include: Torque To Angle, Torque With Angle Monitoring, Residual Torque, Prevailing Torque Mode.
  • Also operates in Peak Mode with no angle measurements.
  • Included with the 1250 Series wrenches are two single cartridge batteries and charger. One battery can be charging while the other is in use.
  • Vibrating handle when the target torque and angle values are reached.
  • Programmable wrench display "lighting sequence" works with both torque and angle. Within the engineering specifications, a target can be set to acknowledge target achieved feedback with display color change and handle vibration.
  • Up to four tools can operate simultaneously with the Global 400/400mp.
  • Robust radio communication speeds support the shortest takt times.
  • Operator can complete active P-Set even if radio communication is severed.
  • When radio communication resumes, the wrench automatically uploads all missed P-Set data.
  • The wrench automatically recalibrates for P-Sets requiring different head lengths.
  • Wrenches are available with our traditional fixed ratchet, pin/spring dovetail, optional quick change (QC) dovetail with access to well over 200 interchangeable heads.
Compatible Products
  • Fully compatible with Global 400 and Global 400mp controller where multiple tools with simultaneous uses are needed. The 1250 Series Exacta 2 does not communicate with the Global 8, PTV or TCV.
Why Torque and Angle!
  • Torque with angle measurement provides a significantly more accurate and repeatable clamp load from one assembly to the next.
Traceability and Digital Data Capture
  • Provides digital date/time stamped documentation on every fastening achieved with our wireless tools.
1250 Series Exacta® 2 Digital Torque & Angle Wrench Five Operational Modes:
Torque to Angle: T2A
  • Measures torque first and then degrees of fastener rotation to stretch the fastener a predetermined amount. That closely managed bolt stretch creates greater repeatability than using torque alone.
Torque with Angle Monitoring: TAM
  • Measures torque while ensuring sufficient rotation. Helps identify "double-tightened" fasteners and changing joint conditions.
Prevailing Torque Mode: PTM
  • Factors out friction inherent to lock nuts.
Residual: RES
  • Audit torque value on previously tightened fasteners with greater accuracy.
Peak
  • Pure torque measurement without angle measurement.

****This tool requires a Global 400 controller****
