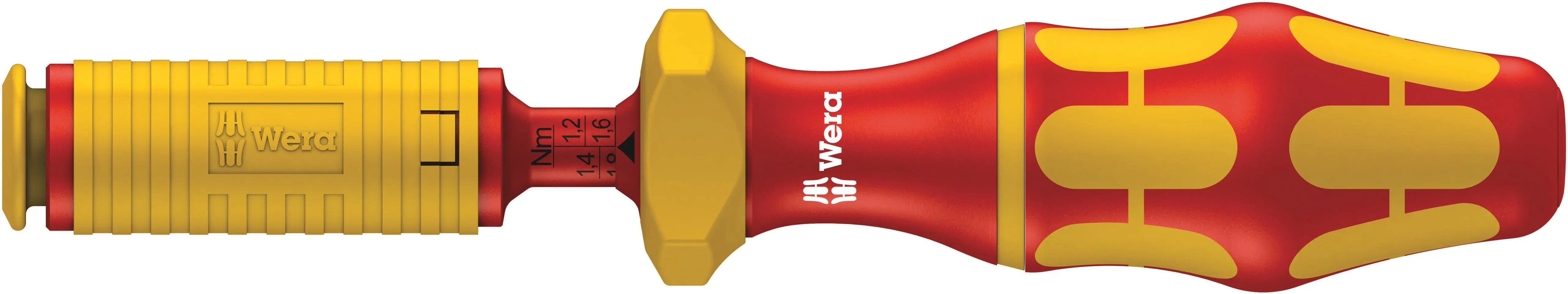

Wera 7400 VDE Kraftform Adjustable Torque Handle, 0.3 - 1.2 Nm - WE 05074752001
Torque VDE holder for safe work up to 1,000 volts. Adjustable torque value from 0.3-1.2 Nm. Distinct audible and perceivable excess load signal when the pre-set torque value is reached. Unlimited manual loosening torque. For Kraftform Kompakt VDE blades: the handle/interchangeable blade system allows a rapid exchange of the blade and thereby diverse applications.
Features:
- Adjustable Kraftform VDE torque holder
- Adjustable torque from 0.3-3.5
- Distinct audible and perceivable excess load signal when the pre-set torque value is reached
- Suitable for Kraftform Kompakt VDE blades
- Rapid exchange of the interchangeable blades
Characteristics:
- Individually tested
- The individual testing at 10,000 volts, in accordance with IEC 60900, ensures safe working with loads up to 1,000 volts
- Kraftform adjustable torque handle for Electricians
- Simple setting of the required torque by hand
- Kraftform adjustable torque handle for Electricians
- Easy-to-read scale value. Measurement accuracy is +/- 6 % in accordance with the standard EN ISO 6789
- Excess-load signal
- Distinctly audible and noticeable excess-load signal when the pre-set torque is reached
- Unlimited loosening torque
- Unlimited torque for loosening seized screws
- Inserting the blade
- According to the job, the insulated inter-changeable blade with the required tip-style, or a switch cabinet key is inserted into the clamping mechanism
- Taking out the blade
- By pulling and holding down the clamping sleeve the interchangeable screwdriver blade, or the switch cabinet key, is unlocked and can easily be taken out of the handle
Product Features:
- GS - tested safety
- Torque
- Adjustable
- Kraftform handle
- Non-roll feature
Applications:
Specifications:
- Main Scale Graduation: 0.05 Nm
- Main Scale Measuring Range: 0.3 - 1.2 Nm
- Mounting Size: 9mm
- Torque Wrench Length: 192mm
