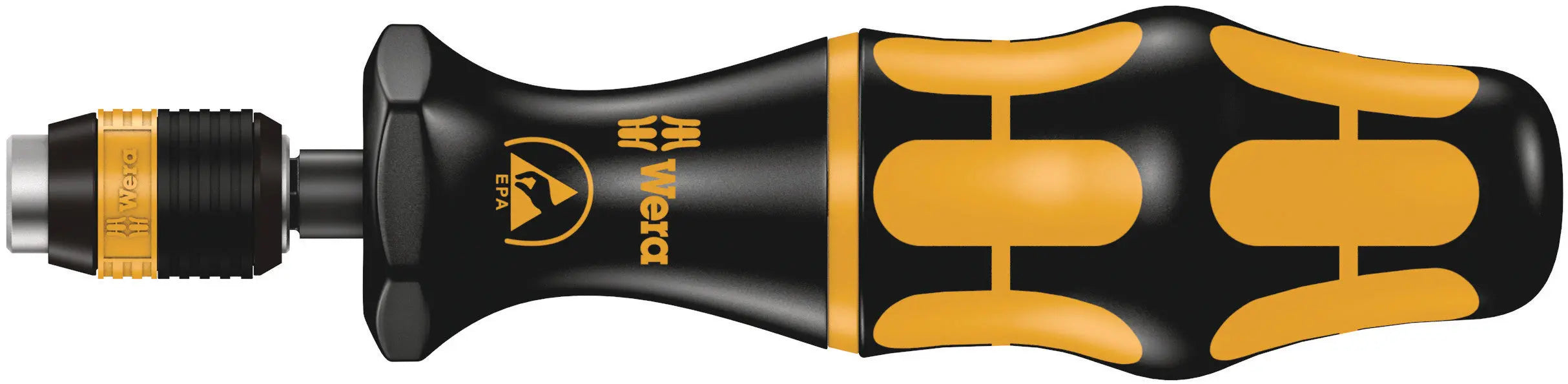

Wera 7400 ESD Kraftform Pre-Set Torque Screwdriver with Rapidaptor Quick-Release Chuck, 0.9 - 1.5 Nm - WE 05074824001
Wera torque screwdriver. Safe protection against electrostatic charge and associated damage. With a factory pre-set torque value set to the smallest scale value. For all applications, where the same constant torque and repeat accuracy are required. The torque can be changed with an extra tool within the measuring range (re-calibration kit can be ordered with the code number 05137003001). Afterwards you can check the set value using an off-the-shelf torque tester. Rapidaptor quick-release technology for rapid bit changes. Unlimited loosening torque for slackening stuck screws. Multi-component Kraftform handle with hard and soft zones for high working speeds, whilst being easy on the hand. Suitable for bits with a 1/4" hexagon drive as per DIN ISO 1173-C 6.3 and E 6.3 (ISO 1173). Please note: 1 Ncm = 0.01 Nm.
Features:
- Factory pre-set, adjustable Kraftform ESD torque screwdriver
- ESD-safe tool thanks to surface resistance of <= 109 Ohm
- Kraftform handle for fast and ergonomic screwdriving
- Suitable for bits with 1/4" hex head drive
- Rapidaptor quick-release chuck for bits with 1/4" hex head drive
Characteristics:
- Pre-set, adjustable torque screwdrivers
- Wera torque screwdrivers. With a factory pre-set torque value set to the smallest scale value. For all applications, where the same constant torque and repeat accuracy are required. The torque can be changed with an extra tool within the measuring range (re-calibration kit can be ordered with the code number 05137003001). Afterwards you can check the set value using an off-the-shelf torque tester
- Wera ESD Tools
- The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies
- High protection
- The electric surface resistance of the Wera ESD material is <= 109 ohm. This securely protects components against electrostatic energy and associated damage
- Chuck-all
- The Rapidaptor quick-release chucks hold 1/4" DIN ISO 1173-C 6,3 and E 6,3 as well as Wera series 1 and 4 bits
- Rapid-in and self-lock
- The bit can be pushed into the adaptor without moving the sleeve. The lock is activated automatically as soon as the bit is applied to the screw. Bits are held securely and wobble-free
- Rapid-out
- Simply push the sleeve forward to change the bit. The spring mechanism lifts the bit off the magnet and unlocks the tool. The bit can be easily removed. The rapid-out function makes it easy to remove even the smallest bits without extra tools
Product Features:
- ESD Tool
- Torque
- Pre-set
- Rapidaptor
- Kraftform handle
- Non-roll feature
Applications:
Specifications:
- Handle Length: 89mm
- Main Scale Measuring Range: 0.9 - 1.5 Nm
- Main Scale Pre-Set Reading: 0.9 Nm
- Mounting Size: 1/4 in
- Torque Wrench Length: 133mm
- Notes:
- The preset torque can be changed. However, this requires the use of special tools and Torque Test Equipment
