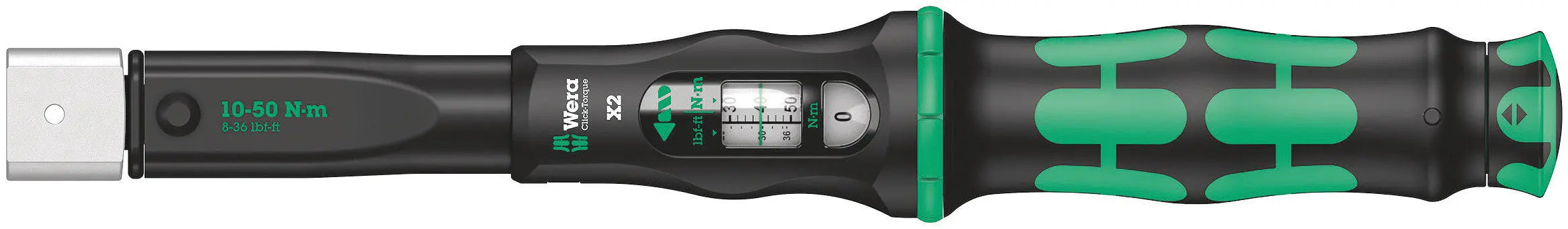

Wera Click-Torque X 2 Torque Wrench for Insert Tools, 10 - 50 Nm - WE 05075652001

Click-Torque wrench in the unmistakable, robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right-hand and left-hand use and with 9 x 12mm insert square for the insertion of insert tools.

Features:

• For 9 x 12mm interchangeable insert tools
• Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
• Audible and tactile release mechanism when the set torque value is reached
• Measuring range: 10-50 Nm; precise to +/- 3% as per DIN EN ISO 6789-1:2017-07
• Very robust design with ergonomic 2-component handle suitable for right and left-handed use

Characteristics:

• Click-Torque Wrench series
  • We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools)
• Drive 9 x 12mm
  • For 9 x 12mm interchangeable insert tools
• Exact
  • Precision of +/-3 % as per DIN EN ISO 6789-1:2017-07
• Easy and safe
  • Easy setting and saving of the desired torque value; easy to read on main and fine scales
• Setting with Speed
  • With audible and tactile locking when the scale values are reached
• Release mechanism
  • On reaching the desired torque value, an audible and tactile mechanism is triggered

Product Features:

• Torque
• Adjustable

Specifications:

• Clock Diameter: 47mm
• Head Diameter: 29mm
• Handle Length G2: 140mm
• Height Ratchet Head H2: 20mm
• Main Scale Graduation: 0.25 Nm
• Main Scale Measuring Range: 10 - 50 Nm
• Mounting Size: 9 x 12mm
• Subscale Measuring Range: 8 - 36 lbf.ft
• Tip Diameter: 1-9/64 in
• Torque Wrench Length: 347mm
• Watch Diameter: 1-27/32 in
• Notes:
  • Sk - Actual dimension of the test attachment, lk - Distance from the force application point to the test device axis
