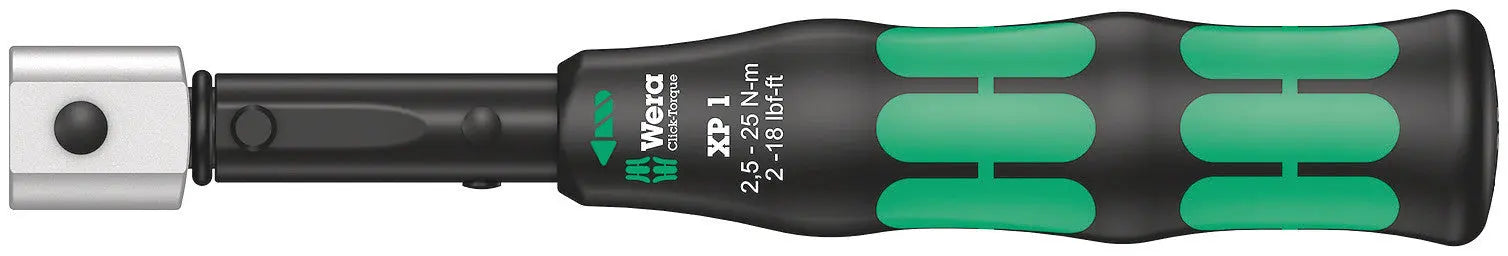

Wera Click-Torque XP 1 Pre-Set Adjustable Torque Wrench for Insert Tools, 2.5 - 25 Nm, 2.5 Nm - WE 05075670001

Torque wrench with pre-set torque value for all applications where the same torque and repeat accuracy is required. The torque value can be changed within the metered range. The robust release mechanism guarantees a clearly audible and tactile trigger signal when the set torque value is reached. Square socket for interchangeable plug-in tools for clockwise and anti-clockwise torque-control. A presetting which deviates from this value to a desired torque value within the specified metered range is possible on request.

Features:

• Pre-set click torque wrench in unmistakable Wera design
• Audible and tactile release mechanism when the set torque value is reached
• Pre-set torque values can be changed within the metered range in the test laboratory
• Measuring range: 2.5-25 Nm; precise to +/- 2% as per DIN EN ISO 6789-1:2017-07
• With square socket (9 x 12mm) for interchangeable plug-in tools; clockwise and anti-clockwise torque-control

Characteristics:

• Click-Torque Wrench series
  • We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools)
• Click-Torque XP
  • The Click-Torque XP torque wrenches are provided with pre-set torque values. These tools are ideal for all applications where the same torque and repeat accuracy is required
• Drive 9 x 12mm
  • For 9 x 12mm interchangeable insert tools
• Exact
  • Precise to +/- 2% as per DIN EN ISO 6789-1:2017-07
• For right and left direction
  • The Click-Torque wrenches for insert tools are suitable for clockwise and counterclockwise uses
• Customized pre-setting
  • The Click-Torque XP torque wrenches with a pre-set torque value can be set to any value within the specified metered range in the test laboratory

Product Features:

• Torque
• Pre-set

Specifications:

• Clock Diameter: 35mm
• Head Diameter: 24mm
• Handle Length G2: 137mm
• Height Ratchet Head H2: 20mm
• Main Scale Measuring Range: 2.5 - 25 Nm
• Main Scale Pre-Set Reading: 2.5 Nm
• Mounting Size: 9 x 12mm
• Subscale Measuring Range: 2 - 18 lbf.ft
• Tip Diameter: 15/16 in
• Torque Wrench Length: 217mm
• Watch Diameter: 1-3/8 in
• Notes:
  • Sk - Actual dimension of the test attachment, lk - Distance from the force application point to the test device axis
