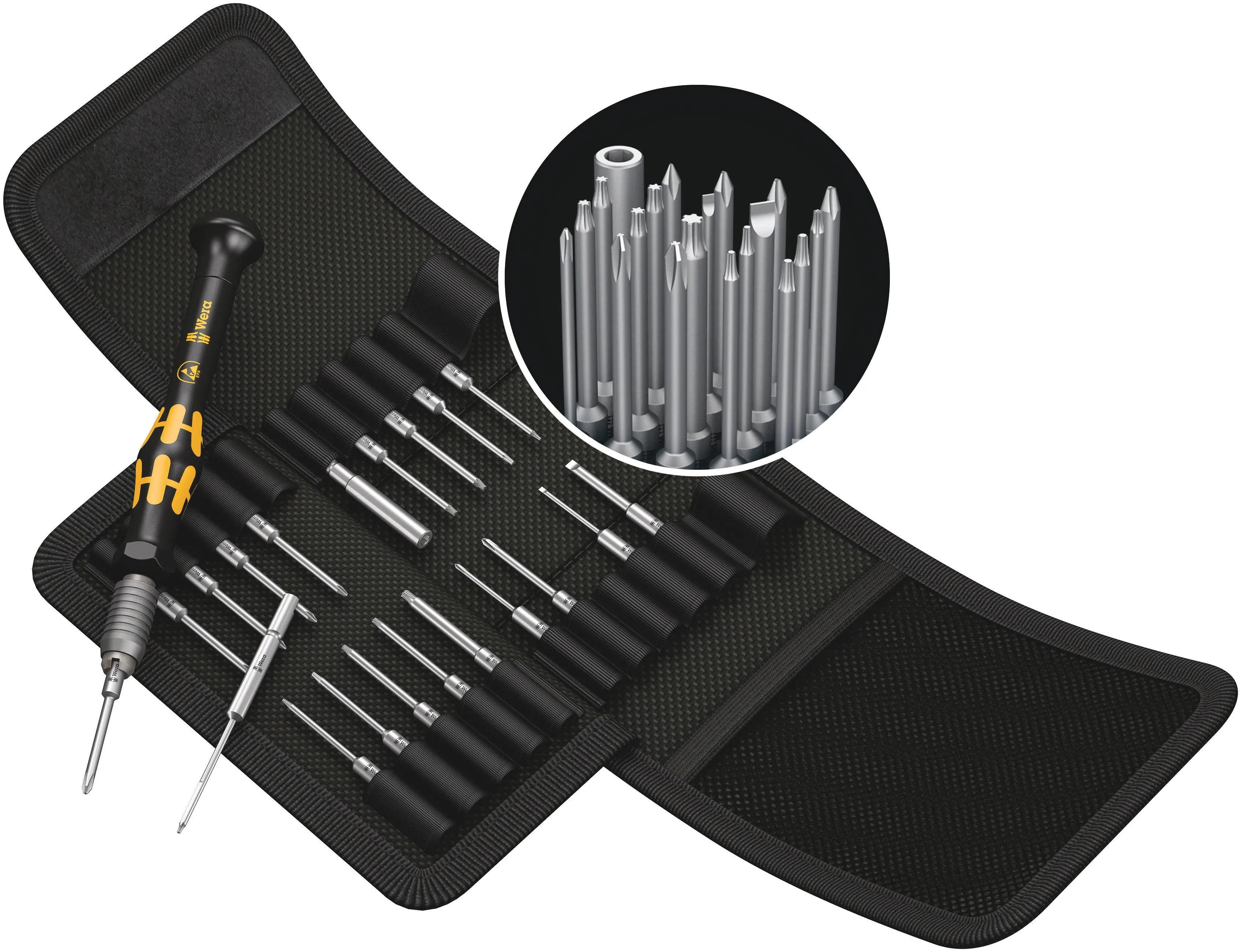

Wera Set of 21 Kraftform Kompakt Micro ESD Bitholder with Bits - WE 05135973001

Kraftform Kompakt Micro set for precision mechanical work. Suitable for the take-up of bits with 4 mm halfmoon drive (Wera series 9) and bits with 4 mm HIOS drive (Wera series 21). Electrical surface resistance of <= 109 Ohm for secure protection against electrostatic charge. Manufactured in accordance with DIN EN 61340-5-1. Compact handle/interchangeable blade system for fast blade change. Kaftform Micro handle with twist cap and free-turning zone for rapid twisting, making any time-consuming repositioning of the fingers unnecessary. Power zone with integrated soft zones for the transfer of higher tightening and loosening torque. Precision zone directly above the blade for the right angle for adjustment work. Bits for manual as well as power tool operations. Rapid fixing of the bit - just push the bit into the insert for automatic locking and a secure fit. To change the bit, simply push the sleeve forward and remove. Free-turning sleeve for simple guidance of the tool during the screwdriving process.

Features:

• ESD-safe tool thanks to surface resistance of <= 109 Ohm
• Kraftform Micro ESD bitholder
• Holder with anti-roll feature, rotating cap and quick-release chuck
• Bit holder suitable for the take-up of bits with 4 mm halfmoon or HIOS drive
• In a practical pouch

Characteristics:

• Wera ESD Tools
  • The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies
• High protection
  • The electric surface resistance of the Wera ESD material is <= 109 ohm. This securely protects components against electrostatic energy and associated damage
• For Halfmoon and HIOS Bits
  • Features a combination bitholder for both bits with Halfmoon and bits with HIOS drive
• Kraftform Micro handle
  • Multi-component screwdriver handle for ergonomic working
• The precision zone
  • The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work
• The power zone
  • The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw

Product Features:

• Halfmoon and HIOS
• ESD Tool
• Kraftform Micro rotating cap
• Kraftform Micro fast-turning zone
• Kraftform Micro power zone
• Kraftform Micro precision zone
• Non-roll feature

Set Includes:

• 1013 Kraftform Micro ESD Bitholding screwdriver - 1 Piece - 97 mm - 05300004001
• 851/9 C J PH bits, halfmoon - 1 Piece - PH 000 x 44 x 1.5 mm - 05134605001
• 851/9 C J PH bits, halfmoon - 1 Piece - PH 00 x 44 x 1.8 mm - 05135270001
• 851/9 C J PH bits, halfmoon - 1 Piece - PH 0 x 44 x 1.8 mm - 05135272001
• 867/9 C TORX bits, halfmoon - 1 Piece - TX 1 x 44 mm - 05135220001
• 867/9 C TORX bits, halfmoon - 1 Piece - TX 2 x 44 mm - 05135221001
• 867/9 C TORX bits, halfmoon - 1 Piece - TX 3 x 44 mm - 05135222001
• 867/9 C TORX bits, halfmoon - 1 Piece - TX 4 x 44 mm - 05345352001
• 867/9 C TORX bits, halfmoon - 1 Piece - TX 5 x 44 mm - 05345351001
• 867/9 C IP TORX PLUS bits - 1 Piece - 1 IP x 44 mm - 05135230001
• 867/9 C IP TORX PLUS bits - 1 Piece - 2 IP x 44 mm - 05135231001
• 867/9 C IP TORX PLUS bits - 1 Piece - 3 IP x 44 mm - 05135232001
• 867/9 C IP TORX PLUS bits - 1 Piece - 4 IP x 44 mm - 05326310001
• 867/9 IPR TORX PLUS bits - 1 Piece - 1 IPR x 44 x 1.5 mm
• 872/9 bits for Microstix screws - 1 Piece - m x 44 mm - 05066850001
• 872/9 bits for Microstix screws - 1 Piece - 00 x 44 mm - 05066851001
• 872/9 bits for Microstix screws - 1 Piece - F x 44 mm - 05066852001
• 872/9 bits for Microstix screws - 1 Piece - 0 x 44 mm - 05066853001
• 800/9 C bits - 1 Piece - 0.23 x 1.5 x 44 mm - 05135265001
• 800/9 C bits - 1 Piece - 0.35 x 2.5 x 44 mm - 05135264001
• 869/9 Nutsetters - 1 Piece - 2.5 x 44 mm - 05135224001

Applications:

• ESD

Digital Assets:

• Datasheet
