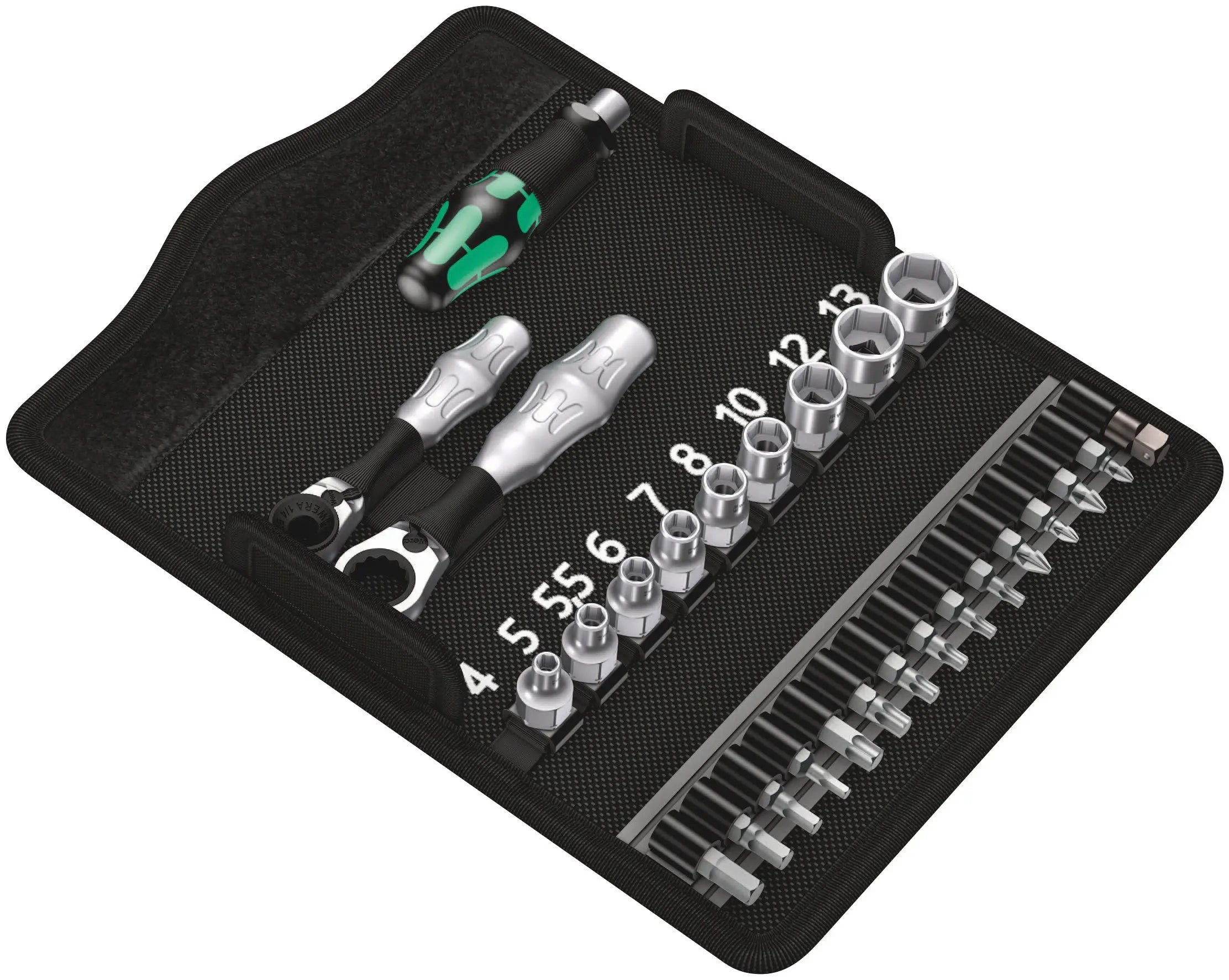

Wera Set of 27 Kraftform Kompakt Zyklop Mini Tools - WE 05135918001
Ratchets and screws in a Kraftform Kompakt format. These drop-forged, full-steel ratchets, Zyklop Mini 1 and 2, combine filigree design with incredible robustness. For particularly rapid screwdriving in confined working situations. Zyklop Mini 1 or Zyklop Mini 2 can be used whenever screwdriving with power tools or conventional hand tools is unfeasible for lack of space. 1 bit ratchet Zyklop Mini 1, suitable for the take-up of bits with 1/4" hexagon head drive as per DIN ISO 1173-C 6.3 and E 6.3 and Wera connecting series 1 and 4, also possible to use 1/4" sockets by attaching the Wera adaptor 870/1. 1 socket ratchet Zyklop Mini 2, suitable for the direct attachment of Wera Zyklop special sockets 8790 FA.
Features:
- Drop-forged, full-steel ratchet design
- For screwdriving in very confined working situations
- Zyklop sockets 8790 FA for direct insertion in the Zyklop Mini 2
- Bit holder, 9 sockets, 14 bits and 1 adaptor
- In robust textile box
Characteristics:
- The Zyklop Mini Ratchets
- For all difficult-to-access applications
- The Zyklop Mini
- The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6 deg - ideal for precision work
- Rapid screwdriving
- High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw
- Slim design
- Its slim design makes it ideal for all particularly confined working situations
- Is such a small tool sufficiently resilient
- The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool
- What parts can be connected to the Zyklop Mini 1
- Bits and sockets. Bits can be connected directly. However, a holder can be connected first and then the bit can be attached to this. This then serves as an extension with a free-turning sleeve. An adaptor e.g. Wera 870/1 is needed for sockets - 1/4" hexagonal on a square drive (included in the Bit-Check and with the individual Zyklop Mini 1 in the set)
- Zyklop Mini 2
- The Zyklop Mini 2 is suitable for the direct attachment of the special Wera Zyklop sockets 8790 FA. These sockets feature a very low height, ideal for confined working spaces
Product Features:
- Switch
- Return angle 6 deg
- Drop-forged full steel design
- Hex-Plus
- Suitable for Wera 2go
- Non-roll feature
- Kraftform handle
Set Includes:
- 8001 A Bit Ratchet 1/4" - 1 Piece - 1/4" x 87 mm
- 8005 Zyklop Mini 2 Ratchet - 1 Piece - 107 mm - 05003660001
- 813 Bitholding screwdriver - 1 Piece - 1/4" x 78 mm - 05051274001
- 870/1 Adaptor - 1 Piece - 1/4" x 25 mm - 05136000001
- 851/1 Z bits - 1 Piece - PH 1 x 25 mm - 05072070001
- 851/1 Z bits - 1 Piece - PH 2 x 25 mm - 05072072001
- 855/1 Z bits - 1 Piece - PZ 1 x 25 mm - 05072080001
- 855/1 Z bits - 1 Piece - PZ 2 x 25 mm - 05072082001
- 867/1 TORX bits - 1 Piece - TX 10 x 25 mm - 05066485001
- 867/1 TORX bits - 1 Piece - TX 15 x 25 mm - 05066486001
- 867/1 TORX bits - 1 Piece - TX 20 x 25 mm - 05066487001
- 867/1 TORX bits - 1 Piece - TX 25 x 25 mm - 05066488001
- 867/1 TORX bits - 1 Piece - TX 30 x 25 mm - 05066490001
- 867/1 TORX bits - 1 Piece - TX 40 x 25 mm - 05066491001
- 840/1 Z bits - 1 Piece - 3 x 25 mm - 05056315001
- 840/1 Z bits - 1 Piece - 4 x 25 mm - 05056320001
- 840/1 Z bits - 1 Piece - 5 x 25 mm - 05056325001
- 840/1 Z bits - 1 Piece - 6 x 25 mm - 05056330001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 4 x 18 mm - 05003665001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 5 x 18 mm - 05003667001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 5.5 x 18 mm - 05003668001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 6 x 18 mm - 05003669001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 7 x 18 mm - 05003670001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 8 x 18 mm - 05003675001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 10 x 18 mm - 05003690001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 12 x 18 mm - 05003684001
- 8790 FA Zyklop socket with 1/4" and Hexagon 11 drive - 1 Piece - 13 x 18 mm - 05003685001
- Hook and Loop Fastener Strip 120 - 1 Piece - 120 x 50 mm
