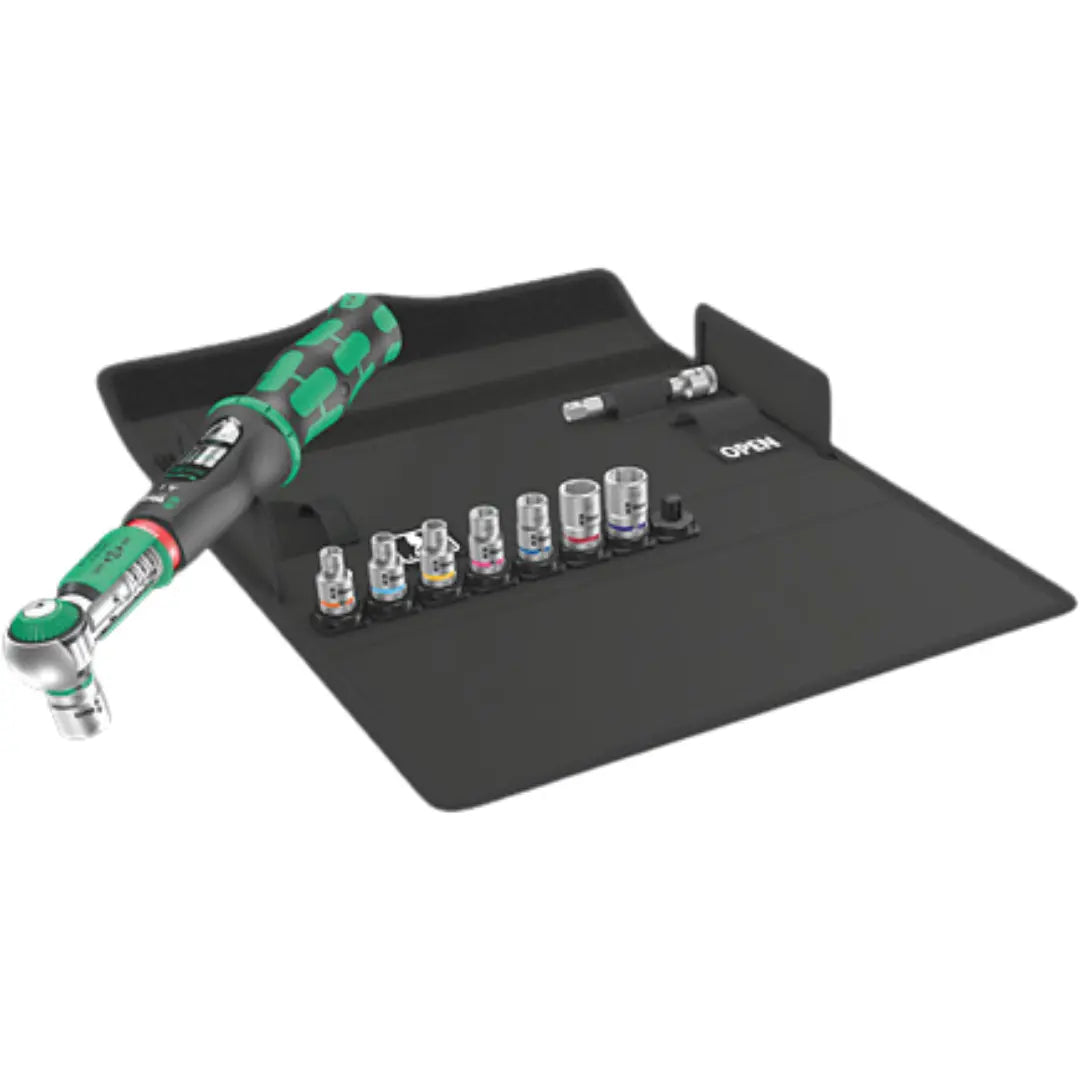

Wera Set of 10 1/4 in Square Head Drive Imperial A Safe-Torque Wrench, 2 - 12 Nm - WE 05075831001

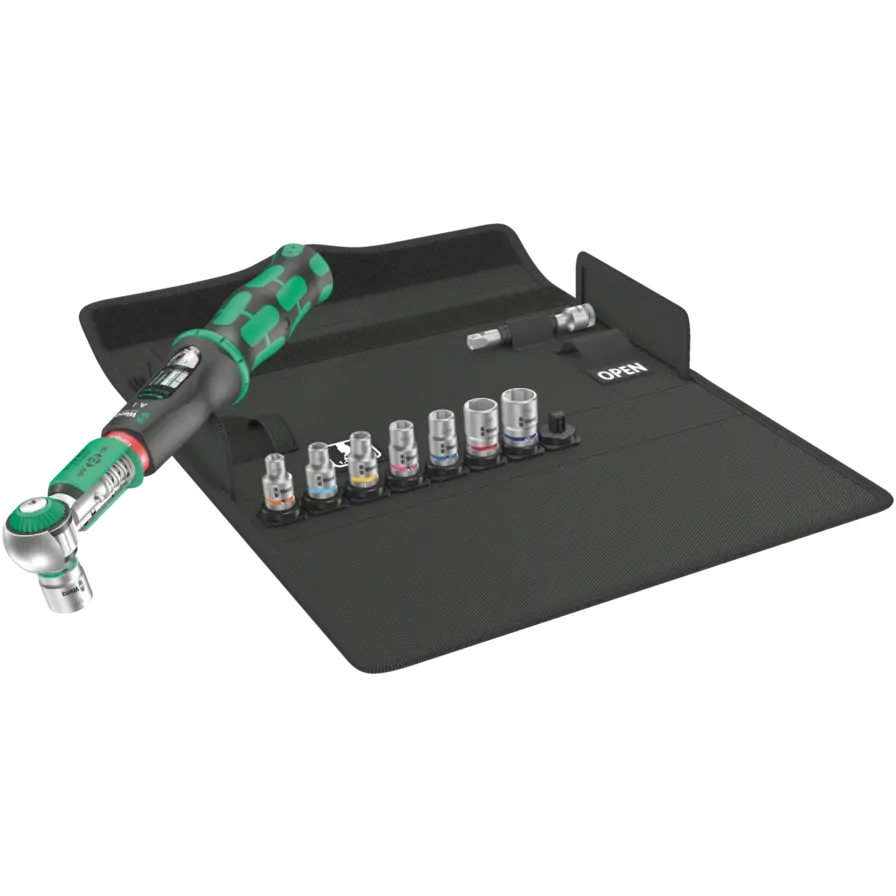

10-Piece 1/4" torque wrench set in a robust textile box, torque wrench with slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied. Setting range of 2 to 12 Nm for controlled clockwise and counterclockwise torque operation. Easy setting and saving of the default value - The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The Torque Lock function allows use as a standard ratchet without torque function. Thus also usable for applications with angles of rotation. Max. breaking torque of the 1/4" square head as per DIN 3122. The return angle of only 5 deg allows the ratchet to be used even in confined spaces. Included are - Safe-Torque A 1 torque wrench, 1/4" square head, 2-12 Nm, 8 sockets with 1/4" drive and one short extension.
Features:
- Slip-over release mechanism - the set torque can never be overtightened
- Torque Lock function - The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
- For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- After the target torque has been reached, the release angle is only 30 deg
- The fine toothing with 72 teeth allows for a low return angle of 5 deg

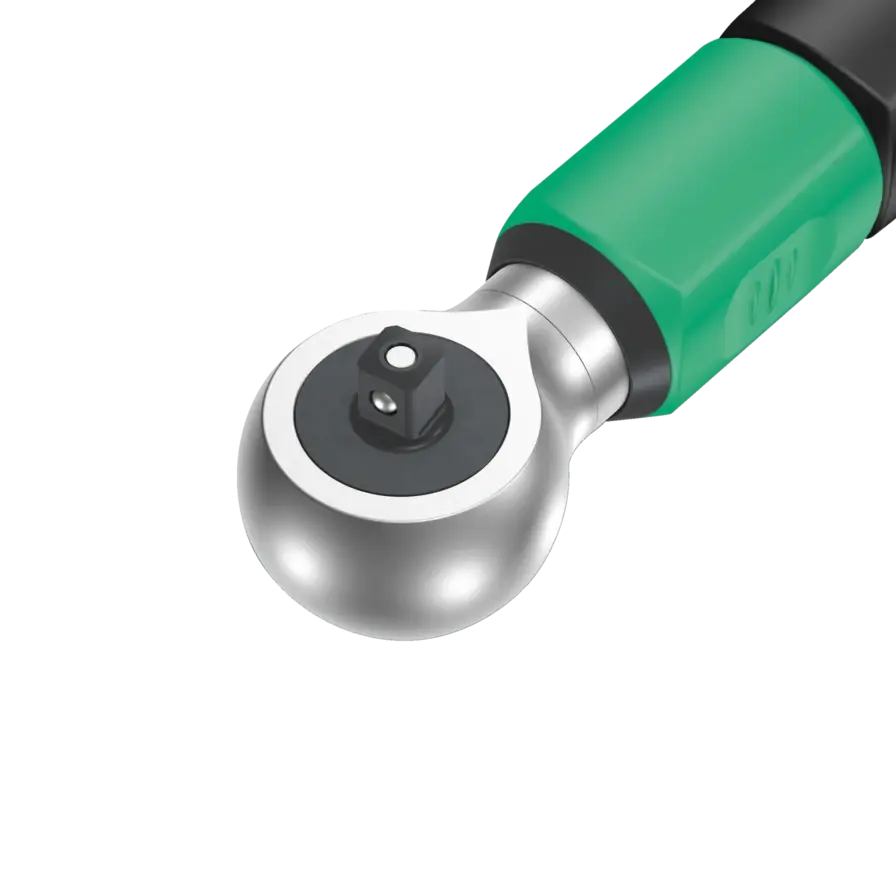

- 1/4" square head drive with socket locking
Characteristics:

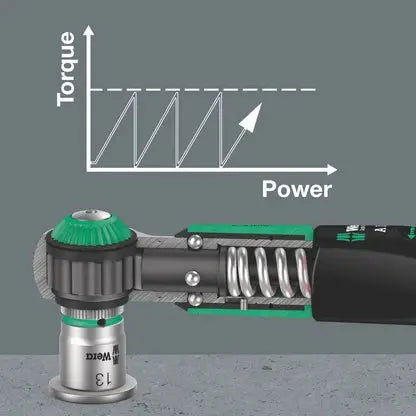

- Slide-over mechanism prevents application of excessive torques
- The Safe-Torque A 1 torque wrench is equipped with a slide-over mechanism. Once the set torque value has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied
- Torque Lock function
- The torque function can be deactivated. The Safe-Torque torque wrench can then also be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation

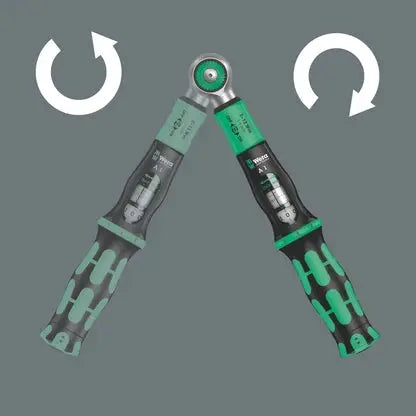

- For clockwise and counterclockwise operation
- The Safe-Torque torque wrench is suitable for clockwise and counterclockwise operation with a set torque. When the Torque Lock function is deactivated, tightening and loosening is enabled without torque

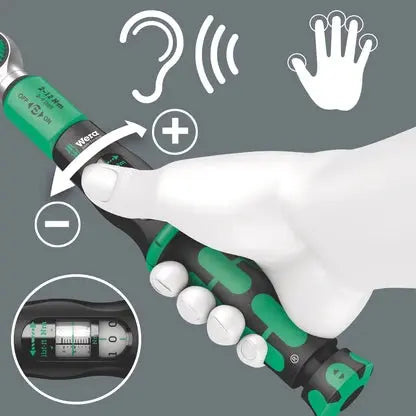

- Easy torque setting
- Easy setting and saving of the required torque with audible and tactile clicks on reaching the scale values

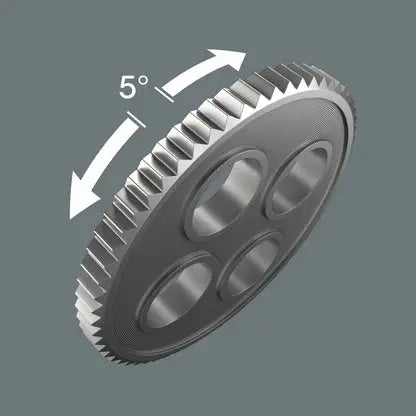

- Low return angle
- The fine-toothed Safe-Torque torque wrench with 72 teeth has a back-pivoting angle of only 5 deg. The small stroke offers quick and precise working in all installation positions

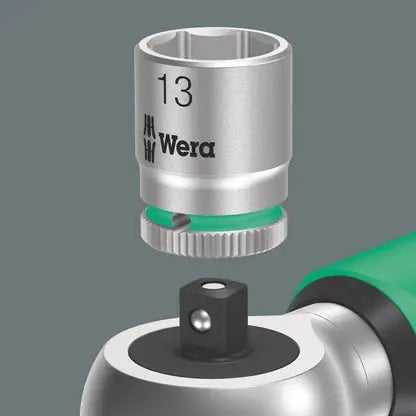

- For 1/4" Sockets
- The Safe-Torque A 1 torque wrench has 1/4" square head mounting and is suitable for 1/4" sockets

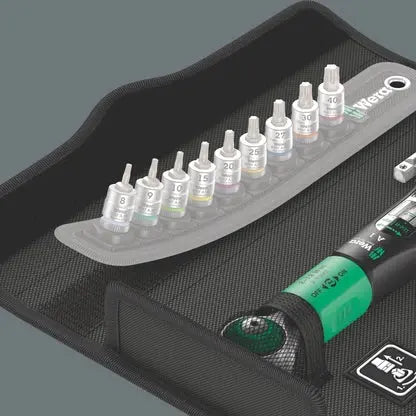

- Space for more tools
- The Wera Belts can be attached to the hook and loop fastener strips in the textile box of the sets Safe-Torque A 1 Set 1 and Safe-Torque A 1 Imperial Set 1, so more sockets and/or bit sockets can be stored and transported
Product Features:
- Torque
- Adjustable
- RL
- ON / OFF
- Torque Lock Function
- Safe-Torque Socket fixing function
- Take it easy socket
- Twist and Lock
- Ultra-Compact
- Suitable for Wera 2go
- Free-turning sleeve
Set Includes:
- Safe-Torque A 1 torque wrench with 1/4" square head drive, 2-12 Nm - 1 Piece - 1/4" x 2-12 Nm - 05075800001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 3/16" x 23mm - 05003514001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 7/32" x 23mm - 05003515001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 1/4" x 23mm - 05003516001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 9/32" x 23mm - 05003517001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 5/16" x 23mm - 05003518001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 3/8" x 23mm - 05003520001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 7/16" x 23mm - 05003521001
- 8790 HMA Zyklop 1/4" socket - 1 Piece - 1/2" x 23mm - 05003522001
- 8794 SA Zyklop extension with free-turning sleeve, short, 1/4" - 1 Piece - 1/4" x 75mm - 05003525001
- Hook and Loop Fastener Strip 240 - 1 Piece - 50 x 240mm
