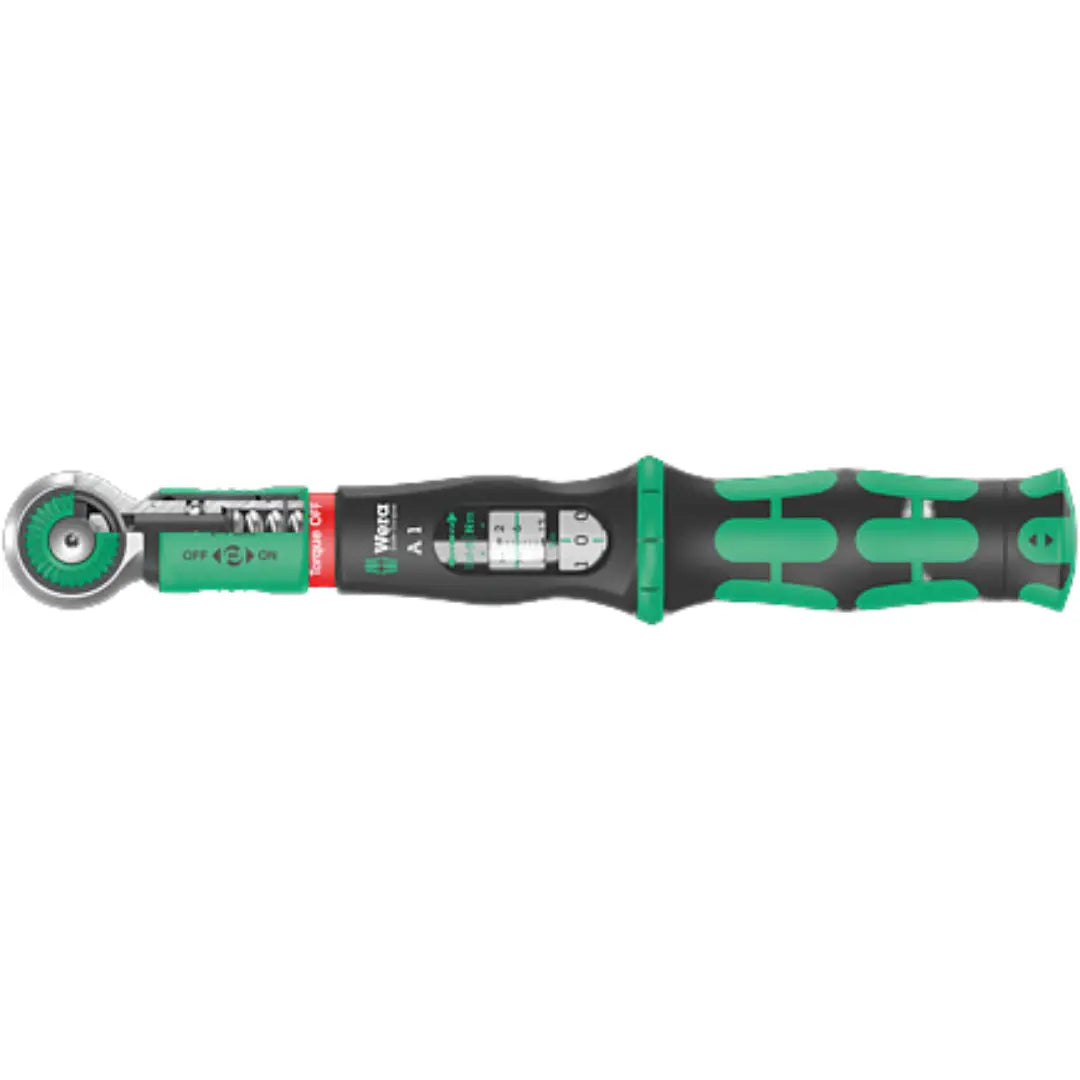

Wera 1/4 in Hexagon Drive A Safe-Torque Wrench, 2 - 12 Nm - WE 05075801001
Torque wrench with slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied. Setting range of 2 to 12 Nm for controlled clockwise and counterclockwise torque operation. Easy setting and saving of the default value - The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. With Torque Lock function for use as a standard ratchet without torque function. Thus also usable for applications with angles of rotation. The return angle of only 5 deg allows the ratchet to be used even in confined spaces.
Features:
- Slip-over release mechanism - the set torque can never be overtightened
- Torque Lock function - The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
- For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque

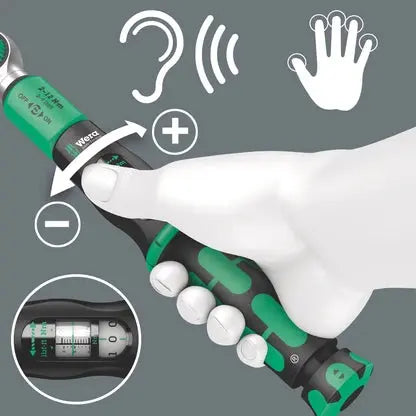

- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- After the target torque has been reached, the release angle is only 30 deg
- The fine toothing with 72 teeth allows for a low return angle of 5 deg
- 1/4" hexagon drive for the use of 1/4" bits
Characteristics:

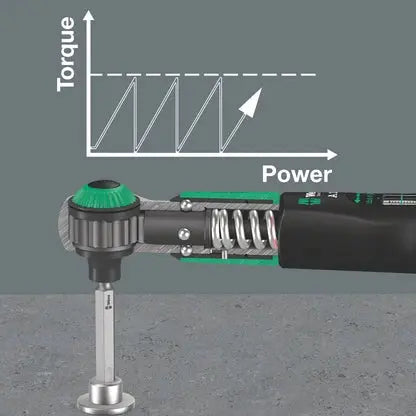

- Slide-over mechanism prevents application of excessive torques
- The Safe-Torque A2 torque wrench is equipped with a slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied
- Torque Lock function
- The torque function can be deactivated. The Safe-Torque torque wrench can then also be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
- For clockwise and counterclockwise operation
- The Safe-Torque torque wrench is suitable for clockwise and counterclockwise operation with a set torque. When the Torque Lock function is deactivated, tightening and loosening is enabled without torque
- Easy torque setting
- Easy setting and saving of the required torque with audible and tactile clicks on reaching the scale values
- Low return angle

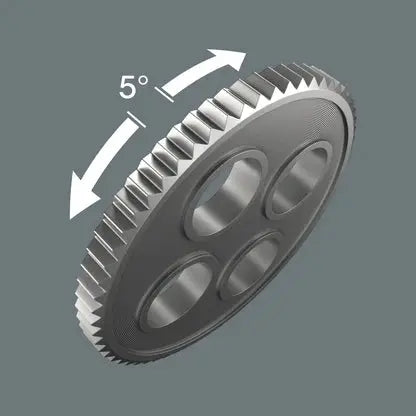

- The fine-toothed Safe-Torque torque wrench with 72 teeth has a back-pivoting angle of only 5 deg. The small stroke offers quick and precise working in all installation positions
- For 1/4" hex drive bits
- The Safe-Torque A 2 torque wrench has a 1/4" bit mounting with a strong permanent magnet and is suitable for bits with 1/4" external hexagon drive as per DIN ISO 1173-C 6.3 and E 6.3 and Wera connection series 1 and 4
- Adapter for 1/4" sockets
- With the 870/1 connector (1/4" external hexagon to 1/4" external square head) the Safe-Torque A 2 can also be used with 1/4" sockets
Product Features:
- Torque
- Adjustable
- RL
- Torque Lock Function
Specifications:
- Clock Diameter: 38.5mm
- Head Diameter: 31.6mm
- Handle Length G2: 94mm
- Height Ratchet Head H2: 23.7mm
- Main Scale Graduation: 0.10 Nm
- Main Scale Measuring Range: 2 - 12 Nm
- Mounting Hexagon Size: 1/4 in
- Subscale Measuring Range: 2 - 9 lbf.ft
- Tip Diameter: 1-15/64 in
- Torque Wrench Length: 244mm
- Watch Diameter: 1-33/64 in
