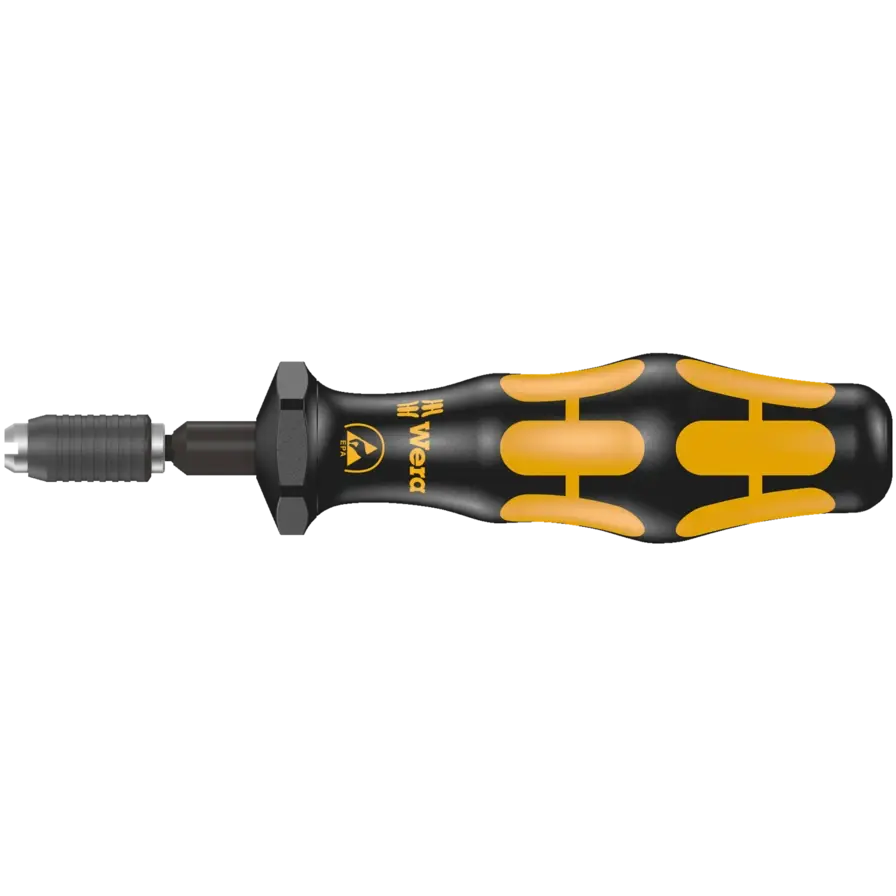

Wera 7400 ESD Kraftform Torque Screwdriver with Quick-Release Chuck - WE 05074826010
Safe protection against electrostatic charge and associated damage. With a customized factory pre-set torque value. For all applications, where the same constant torque and repeat accuracy are required. The torque can be changed within the measuring range with the extra tool 05137003001. Afterwards you can check the set value using an off-the-shelf torque tester. Rapidaptor quick-release technology for rapid bit changes. Unlimited loosening torque for slackening stuck screws. Multi-component Kraftform handle with hard and soft zones for high working speeds, whilst being easy on the hand. Suitable for bits with a 4mm Halfmoon drive (Wera series 9) and a 4mm HIOS drive (Wera series 21). Please note - 1 Ncm = 0.01 Nm.
Features:
- Customized pre-set, adjustable Kraftform ESD torque screwdriver
- ESD-safe tool thanks to surface resistance of <= 109 Ohm
- Kraftform handle for fast and ergonomic screwdriving
- Suitable for bits with 4mm halfmoon and 4mm HIOS drive
- Distinct audible and perceivable excess load signal when the pre-set torque value is reached
Characteristics:
- Customized pre-setting
- Wera torque screwdriver. With a customized factory pre-set torque value. For all applications, where the same constant torque and repeat accuracy are required
- Wera ESD Tools
- The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies
- High protection
- The electric surface resistance of the Wera ESD material is <= 109 ohm. This securely protects components against electrostatic energy and associated damage

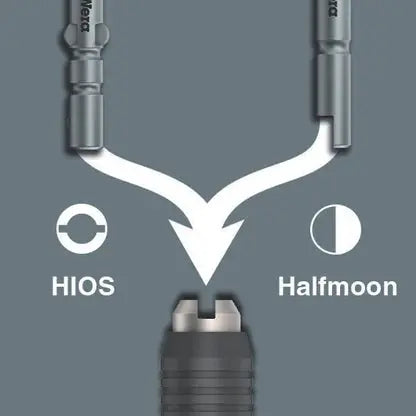

- For Halfmoon and HIOS Bits
- Features a combination bit holder for both bits with Halfmoon and bits with HIOS drive
- Kraftform
- The basic idea for the prototype of the Kraftform handle - that the hand should dictate the design - has, right through to today, proved to be correct. In cooperation with the internationally recognized Fraunhofer IAO Institute, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimized through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either
Product Features:
- Halfmoon and HIOS
- ESD Tool
- Torque
- Pre-set
- Kraftform handle
- Non-roll feature
Specifications:
- Handle Length: 89mm
- Main Scale Measuring Range: 0.1 - 0.34 Nm
- Torque Wrench Length: 138mm
- Notes:
- Adjustable within the specified measuring range upon customer request
- The desired settings can be made in the following units: Nm, kgf. m, lbf. ft., ozf. in., dN. m, kgf. cm, lbf. in, in. oz, cN. m, gf. m, ft. lb, gf. cm, in. lb
