Wright Tool Square Drive Torque Multiplier 3/4 in Female x 1 in Male, Output Capacity 2,000 ft lbs - WT 9S292
A torque multiplier is a mechanical tool designed to amplify the force applied to it, allowing for increased torque output without the need for added physical exertion. This device consists of a series of gears or levers housed within a compact, handheld unit. Its primary purpose is to make tightening or loosening nuts, bolts, or other fasteners easier by magnifying the input force.
Features:
- Low input torque. Needle bearings for high efficiency
- Input torque holding ratchet - holds multiplier in place during torqueing
- % accuracy - closer accuracy and torque certificates available
- 1/2 in square female input
- Sharable output squares - drive shear at 3-10% overload to protect tool. A replacement drive included, is easily installed
Specifications:
- Angle of Turn Protractor: No

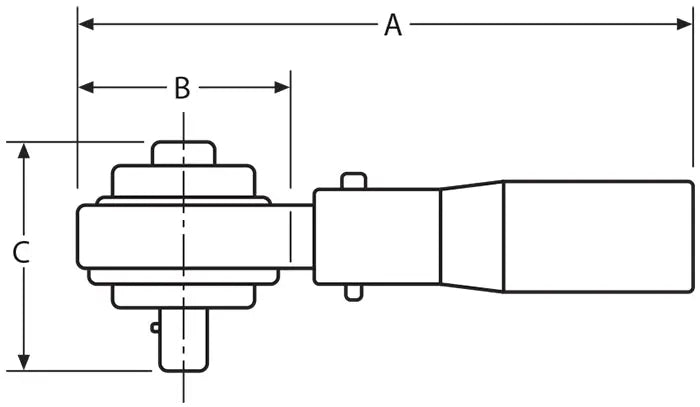

- A-Length: 19-1/2 in (Refer Drawing Image)
- B-Head Diameter: 4-1/2 in (Refer Drawing Image)
- C-Height: 3-3/4 in (Refer Drawing Image)
- Input Capacity (ft-lbs): 533 lbs
- Output Capacity (ft-lbs): 2,000 lbs
- Input Internal Drive: 3/4 in square
- Output External Drive: 1 in square
- Weight: 12.0 lbs
- Replaceable Square: No
- Torque Ratio: 3.75:1
- Country of Origin: United States of America
Warnings:
- Wear safety goggles for the user and bystander
- Comfort or plastic grips do not protect against electric shock
