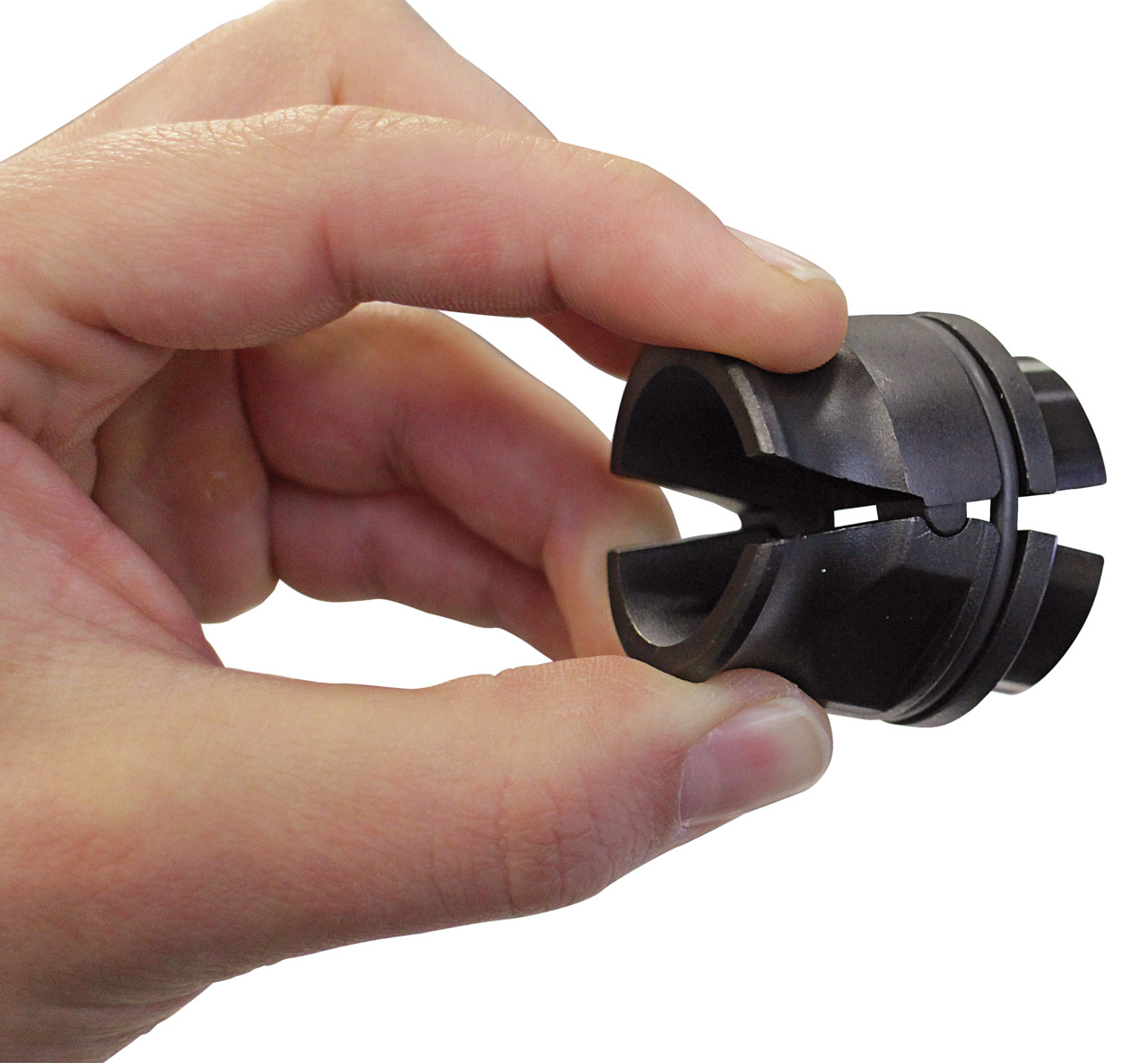

Gedore 2915669 Quick-Action Clamping Nut, M16 - GD KL-0039-2116-2
The special design of the quick-release nut allows the adjustment on the draw spindle without a rotary movement but only by sliding. This allows for short assembly/clamping times, as well as quick and easy adjustment and simple operation of the tool. To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adaptor, or a retaining ring.
Features:
- For the hydraulic drive of the KL-0039 series
- High time saving due to quick-clamping function
- Only in combination with a suitable spindle
Specifications:
- Suitability: Universal
- Drive (Hex): 36mm
- Drive Type: Hydraulic, Mechanical
- Length: 40mm
- Mounting Diameter: 30mm
- Outer Diameter: 40mm
- Thread: M16
- Weight: 0.44 lbs
- Country of Origin: Germany
- Type:
- Clamping Nut
- Drive Size:
- 36mm Hexagon
- Drive Type:
- Hydraulic, Mechanical
- Suitability:
- Universal
