Gedore 3413349 Workshop Trolley, Bearings and Bushings - GD KL-4999-250

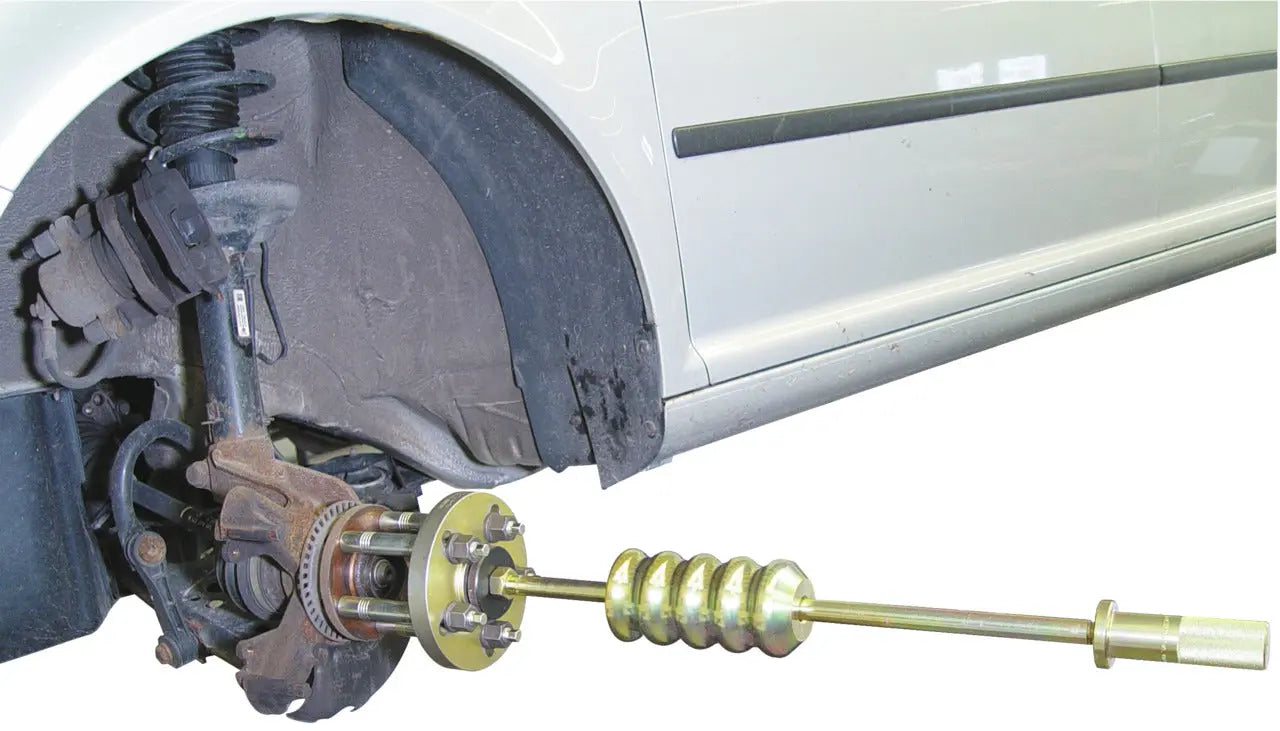

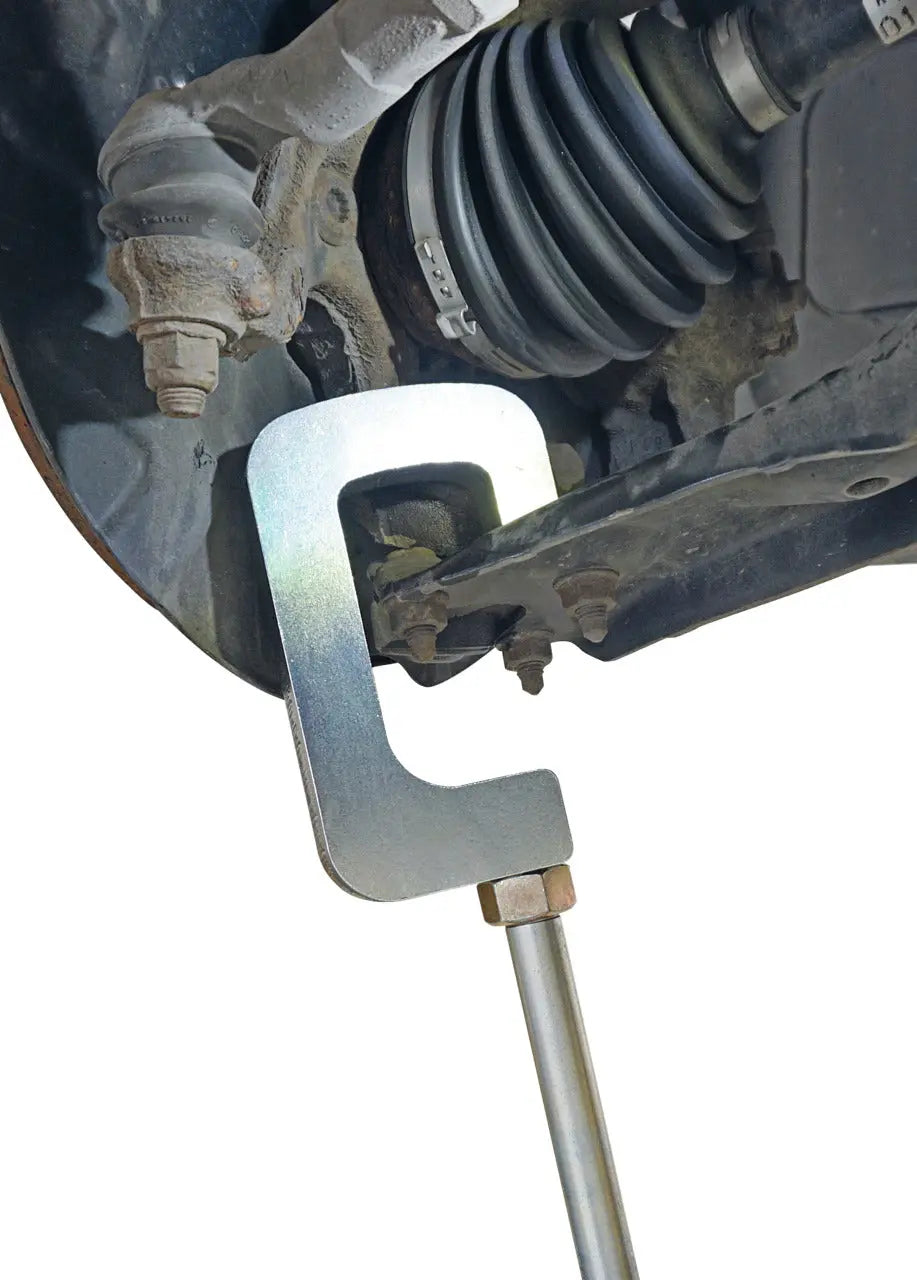

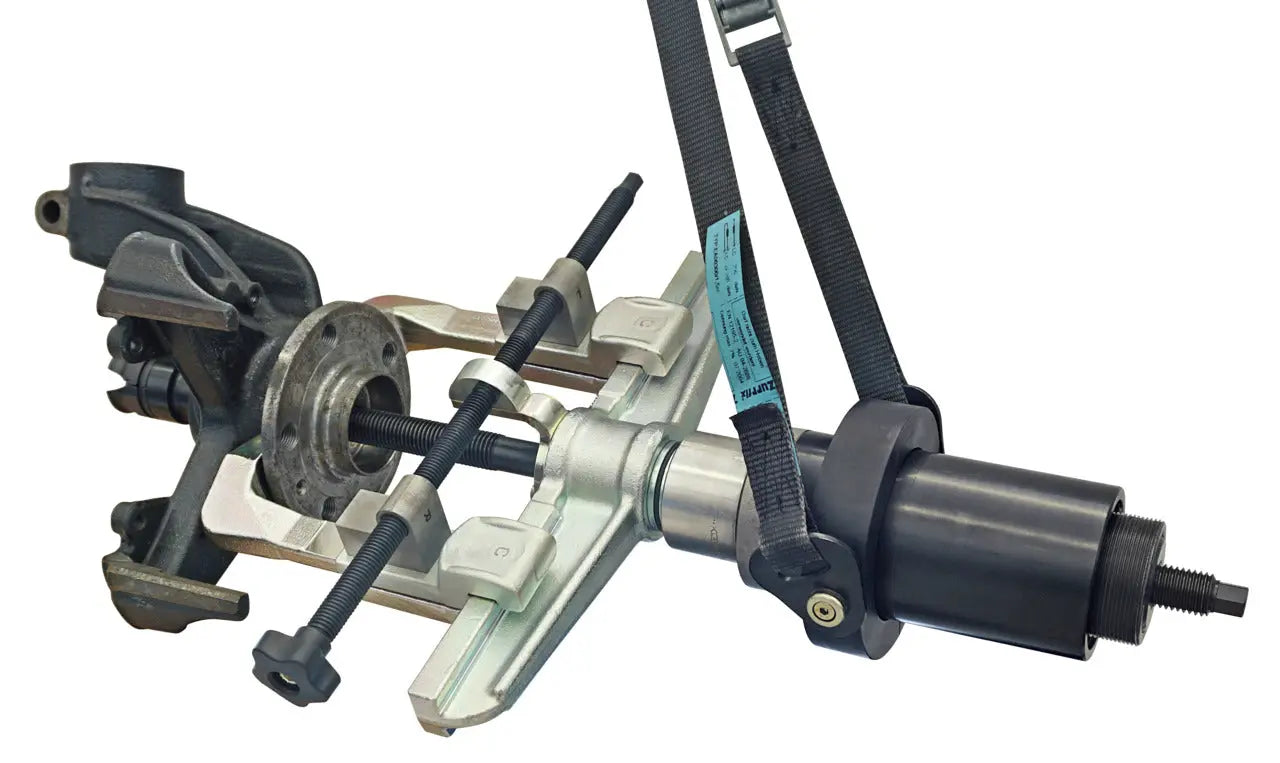

The robust assembly trolley "MODULO 250" in its unique composition offers the ideal mobile workstation for the fast, organized and efficient replacement of wheel bearings, silent bearings, support joints, bushings, etc. Included in the modulo: Various drive parts such as hydraulic cylinder 17t KL-0040-2500, ring ratchet/open-end spanners, impact extractors 4.8 kg - KL-0049-31 as well as pull/thrust spindles (mechanical, hydraulic), quick-clamping nuts and adaptors of the KL-0039.series for driving the tool kits, Articulated handle - KL-4007-411 as well as power spanner/socket spanner sockets (SK / TX / XZN) for loosening and tightening of wheel bearing central screws, Locking ring pliers - KL-0192-5 for the disassembly and assembly of wheel bearing locking rings, Wire brush for de-rusting and cleaning various components, Wheel hub puller - KL-0041-38. as well as wheel bearing tool kits of the KL-0041-4. Series for pressing out and in of wheel hubs and wheel bearing units, for example on VW, Audi, Seat, Skoda, Pullers of the KL-0174. Series for pulling standard wheel bearings as well as pressing out bonded and stuck cardan shafts, Hook for impact extractors - KL-0049-360 A for pulling of wishbones from the suspension joint clamping hole. Further information on the assembly trolley: Dimensions: H 985 x W 1200 x D 635 mm, Beech multiplex worktop, 30 mm thick, oiled, Total load carrying capacity: 1000 kg / mobile operation: 750 kg, 2 fixed castors Diameter 200 mm and 2 swivel castors Diameter 125 mm with total brake, Sheet steel, corrosion-resistant, scratch-resistant powder-coated in GEDORE blue, Wide drawers (W 998 x D 474 mm) with full extension, max. load 70 kg, Automatic drawer retraction with single pull-out stop and central locking system, Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools, Side panels with Euro perforation 10 x 38 mm for fastening hooks and tools, 2 GEDORE heavy-duty wheels with roller bearings (fixed castors Diameter 200 mm), 2 GEDORE smooth-running wheels with ball bearings (swivel castors Diameter 125 mm), both with total brake, Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue.

Features:

• The robust assembly trolley "MODULO 250" offers in its unique composition the ideal mobile workstation for the fast, organized and efficient change of wheel bearings, silent bearings, support joints, bushings, etc.
• The trolley includes: Hydraulic cylinder 17 t Drive parts (impact extractor and various spindles) Thrust/support sleeves Diameter 30 - 90 mm (long and short) Thrust rings Diameter 54 mm (short and long)

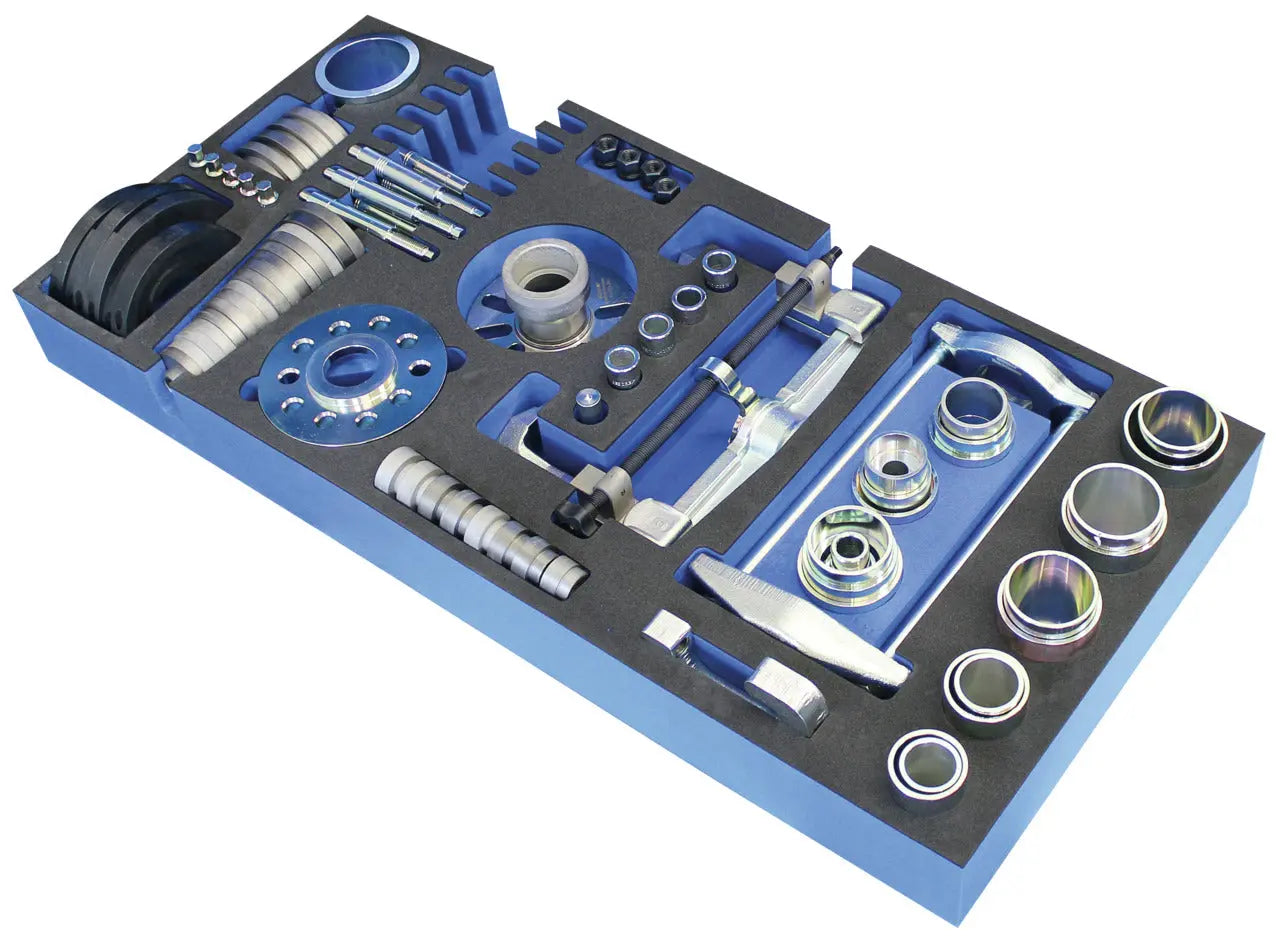

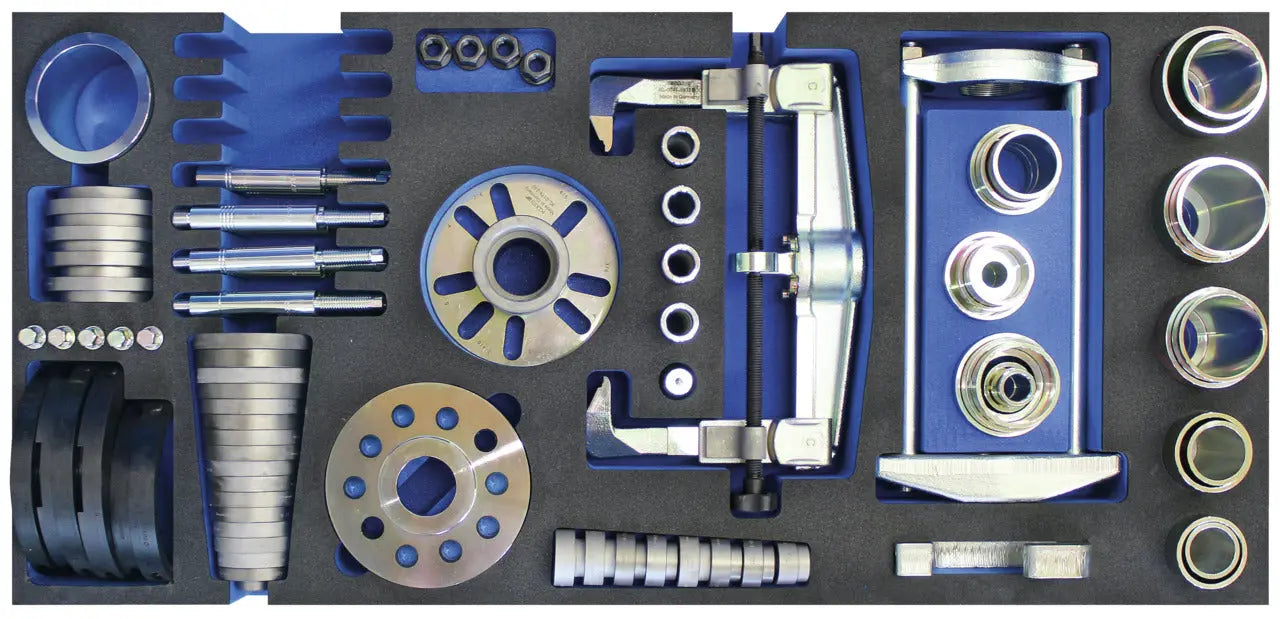

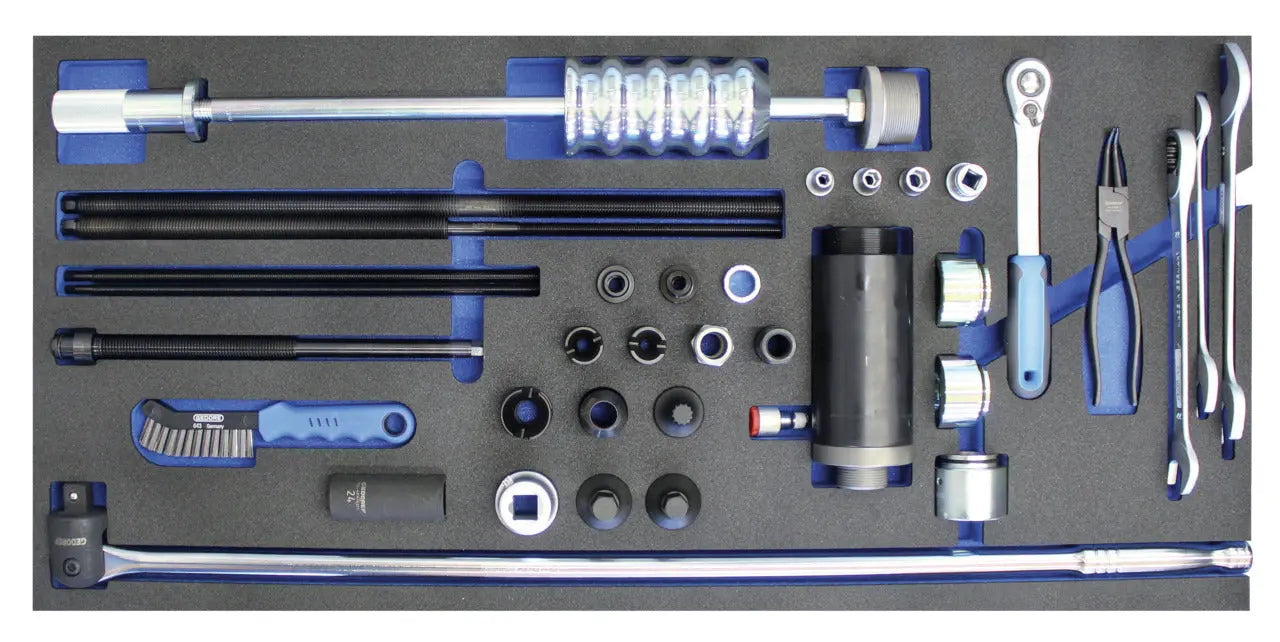

• Included in the Modulo: Hydraulic cylinder 17 t Drive parts (impact extractor and various spindles) Thrust/support sleeves Diameter 30 - 90 mm (long and short) Thrust rings Diameter 54 - 96 mm and centring rings Diameter 25 - 80 mm Press frame set Wheel hub extractor (mechanical and hydraulic) Wheel hub/bearing installation tool set
• Universally applicable for repairs on wheel bearings, steering and axle systems on passenger cars and vans

Specifications:

• Suitability: Universal
• Color: Blue
• Depth: 635mm
• Drawer Type: Full Extension
• Height: 985mm
• Load Capacity (Dynamic): 750 kgs
• Load Capacity (Static): 1000 kgs
• Number of Drawers: 4
• Weight: 474.08 lbs
• Width: 1.200mm
• Country of Origin: Germany
