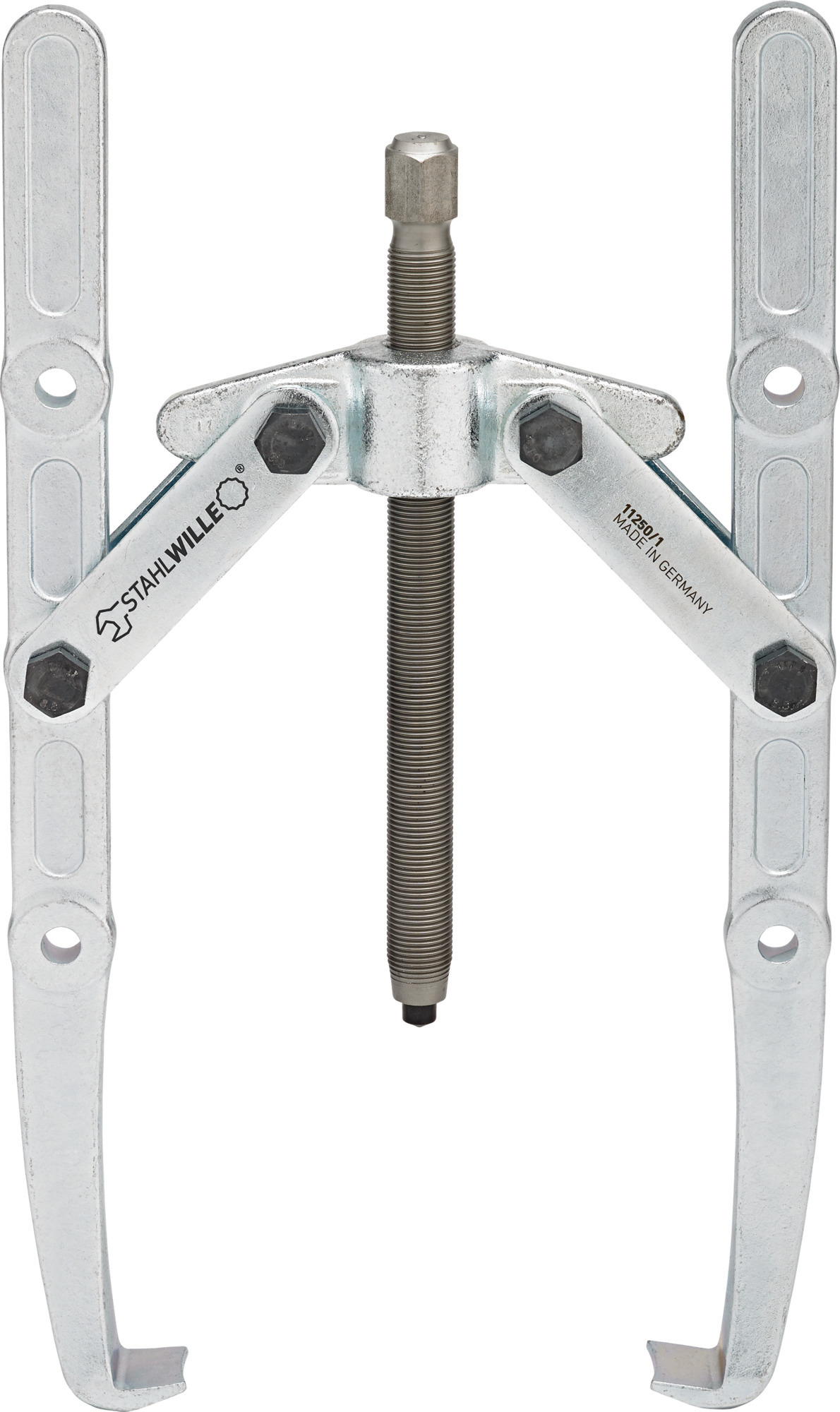

Stahlwille 2-Arm Puller, 2, 22mm - ST 71025002
The 2-Arm Puller is a versatile and reliable tool designed for the efficient removal of gears, pulleys, bearings, and other press-fitted components. Featuring two sturdy arms that provide a firm and secure grip, it ensures even distribution of force to prevent damage to delicate parts. The puller is made from high-quality, durable materials, offering superior strength and longevity. Its adjustable design allows for a wide range of applications in automotive, industrial, and maintenance tasks.
Features:
- The greater the extraction force, the stronger the grip of the extractor hooks on the workpiece to be extracted
- Adjustable clamping depth for universal use
- The nitride surface of the pressure spindle provides excellent sliding properties and does not require additional oiling
- Easy on the workpiece thanks to even force distribution
- Two-armed
- Swiveling trigger hooks, for large areas, galvanized
- For pulling off gears, ball bearings, pulleys and similar parts from a shaft or axle
- By repositioning the hooks, can be used as an external and internal extractor
- For internal use, the hooks are swiveled and the spindle repositioned
- The large leverage effect ensures that the hooks are firmly seated on the part to be extracted or removed
- For increased safety - Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality
Specifications:
- Clamping Depth: 480mm
- Clamping Width: 420mm
- External Hexagon Drive: 22mm
- Number of Hook: 2
- Output Size: 2
- Spindle Thread Size: G 1/2 x 350
- Maximum Load: 8 t
- Overall Weight: 12.99 lbs
- Type:
- 2-Arm Puller
- Clamping Depth:
- 480mm
- Clamping Width:
- 420mm
- External Hexagon Drive:
- 22mm
- Number of Hook:
- 2
- Output Size:
- 2
- Spindle Thread Size:
- G 1/2 x 350
- Maximum Load:
- 8 t
