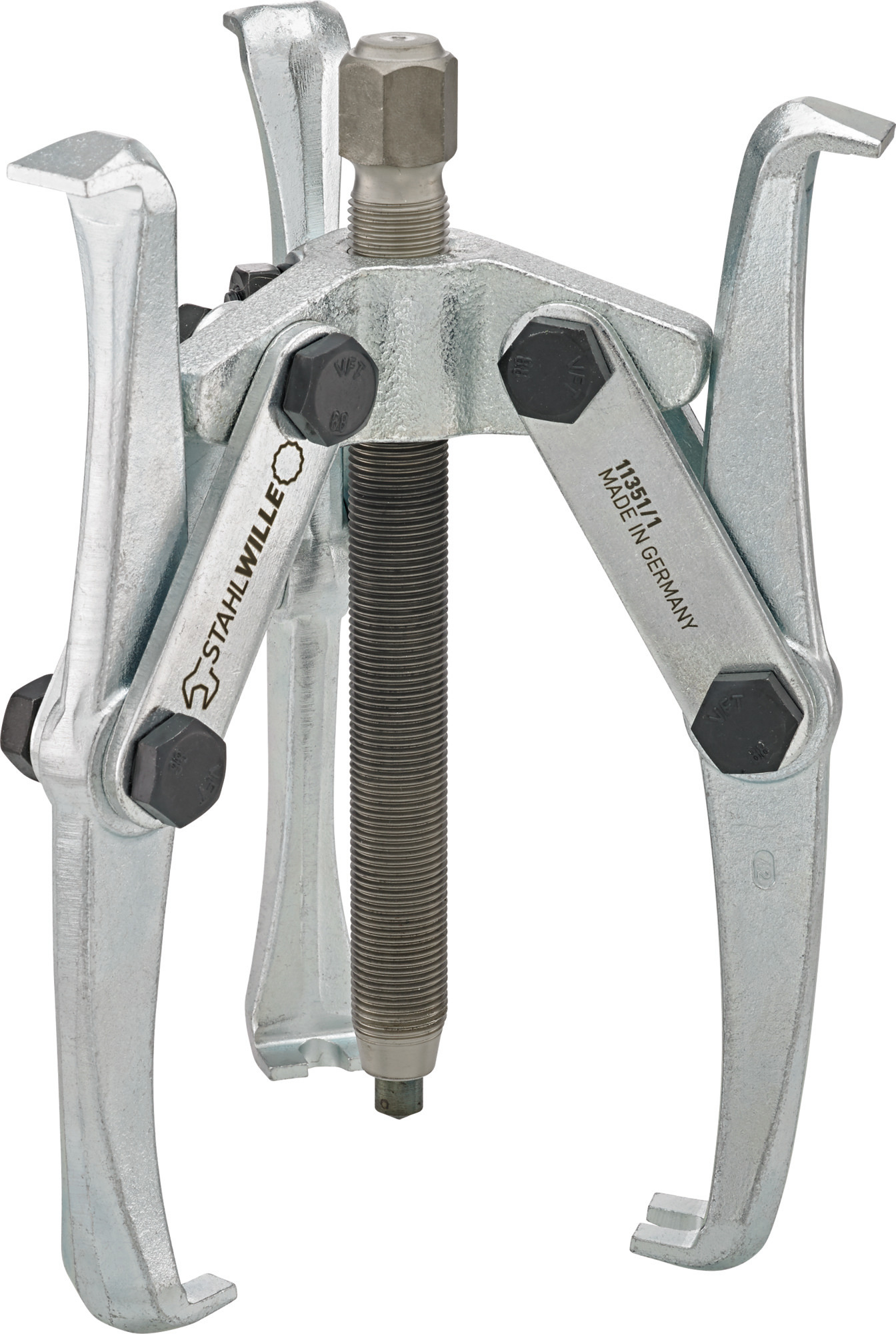

Stahlwille 3-Arm Puller, 1, 19mm - ST 71035101
The 3-Arm Puller is a robust and efficient tool designed for the safe and precise removal of gears, bearings, pulleys, and other press-fitted components. Featuring three evenly spaced arms, it provides superior stability and a secure grip, ensuring balanced force distribution to prevent damage to components. Constructed from high-quality, durable materials, this puller offers exceptional strength and longevity for heavy-duty applications. Its adjustable design accommodates various sizes, making it a versatile choice for automotive, industrial, and maintenance tasks.
Features:
- For quick and reliable removal of gears, ball bearings, pulleys and for extracting the outer rings of ball bearings and bushings from drilled holes
- Accurate profile ribs and precise guide rails give the crosshead outstanding bending rigidity
- The nitride surface of the pressure spindle provides excellent sliding properties and does not require additional oiling
- Three-armed, with self-centering puller arms
- For extracting gears, ball bearings, pulleys and similar parts from a shaft or axle
- For extracting ball bearings, ball bearing outer rings and bushes from bores
- Nitride spindle, no oiling necessary, maintenance-free
- Galvanized
- Puller hooks can be used on both sides

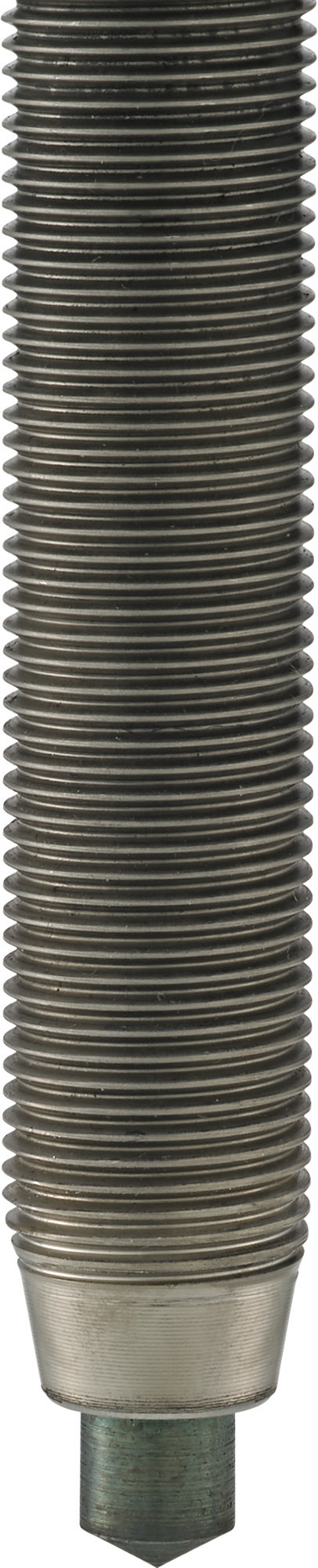

- Reliable sliding properties - The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling

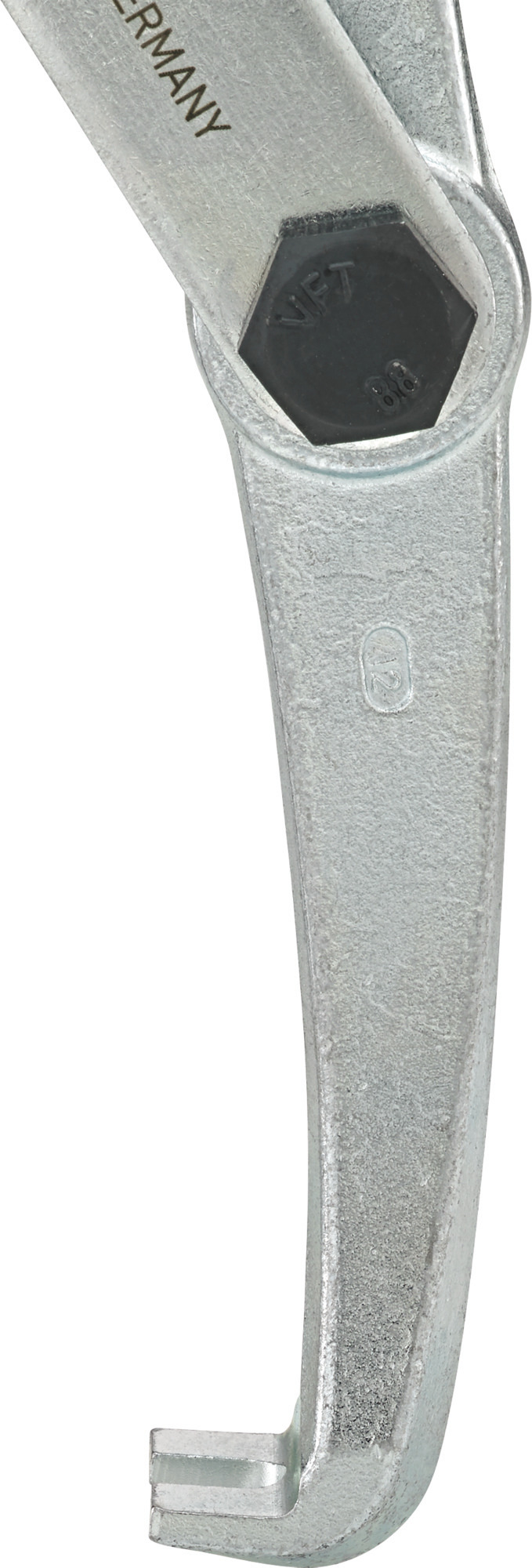

- Adapted access geometry - Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes
- Protection against damage - The centering tip is freely rotating - to protect the shafts from damage
- For increased safety - Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality
Specifications:
- Clamping Depth: 130mm
- Clamping Width: 160mm
- External Hexagon Drive: 19mm
- Number of Hook: 3
- Output Size: 1
- Spindle Thread Size: M18 x 1.5 x 170
- Maximum Load: 7.5 t
- Overall Weight: 5.73 lbs
Product Dimension (Refer Image):
- Hook Base Tip Thickness (a): 3mm
- Hook Base Width (b): 24mm
- Hook Base Depth (c): 12mm
- Type:
- 3-Arm Puller
- Clamping Depth:
- 130mm
- Clamping Width:
- 160mm
- External Hexagon Drive:
- 19mm
- Number of Hook:
- 3
- Output Size:
- 1
- Spindle Thread Size:
- M18 x 1.5 x 170
- Maximum Load:
- 7.5 t
