Stahlwille Complete Calibration System, 1 - 10 Nm - ST 96521068

A Complete Calibration System is an integrated solution used to ensure the accuracy, reliability, and precision of measurement instruments and devices. It consists of all the necessary tools, equipment, and software to perform calibration tasks, adjusting instruments to meet established standards and ensuring they operate within the required tolerances. Such systems are commonly used in industries where precise measurements are critical, including manufacturing, healthcare, aerospace, automotive, and scientific research.

Set Includes:

Transducer
Square adaptor
USB adaptor and cable for transferring measurement data to a personal computer
Administration software for calibration certificates

Features:

Measurement without displacement of the force application point

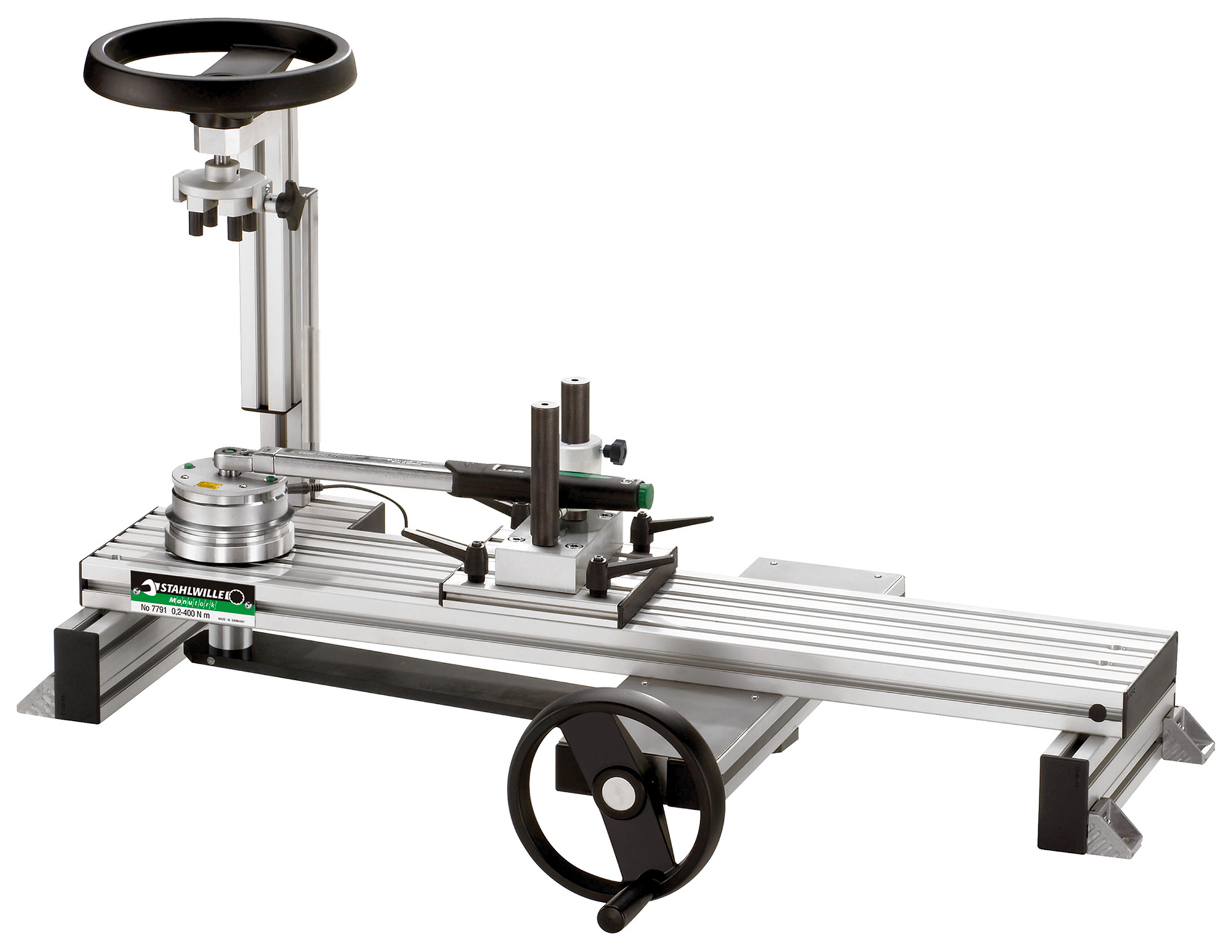

Due to a special force transmission system, the mechanical calibration device no. 7791 avoids a displacement of the point of application of force during the calibration process
Driven by the handwheel, the lever mounted below the test rail is moved linearly by a spindle
The linear movement is converted into a rotary movement which acts on the transducer
The torque spanner to be calibrated remains constant in its position during the entire calibration process
In this way, measurement errors resulting from a shift of the point of application of the force are avoided
The torque spanner is automatically aligned horizontally by a low-friction ball bushing
Another ball bushing ensures friction-free support of the torque wrench
The resulting reduction of the transverse forces on the transducer and the friction on the torque wrench support leads to a reduction of the measuring errors
Patents pending
