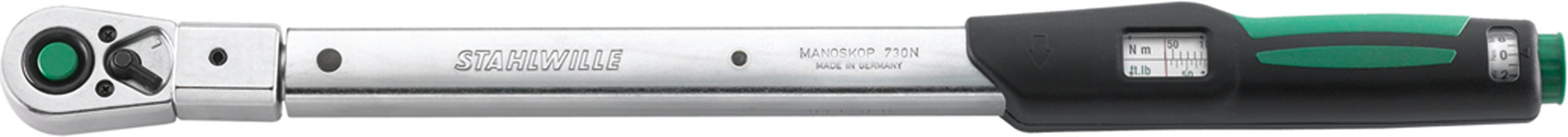

Stahlwille MANOSKOP Service Torque Wrench with Fixed Quick Release Ratchet, 20QR FK - ST 96502120

The Service Torque Wrench is a versatile and reliable tool designed for precise torque applications in servicing and maintenance tasks. It is ideal for applications where accurate fastening or loosening of fasteners is required, ensuring optimal performance and safety. Made from high-quality materials, the Service Torque Wrench offers durability and longevity, making it suitable for both professional and DIY use.

Features:

• Includes sturdy plastic box
• QuickRelease safety lock
• Deviation of indication +/- 4%
• The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change
• Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
• Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use
• 2-Component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation

Specifications:

• External Square Drive: 1/2 in
• Fine Scale Division: 1 Nm
• Overall Height: 70mm
• Overall Length: 526mm
• Measuring Range: 40 - 200 Nm
• Size: 20QR FK
• Overall Weight: 3.5 lbs

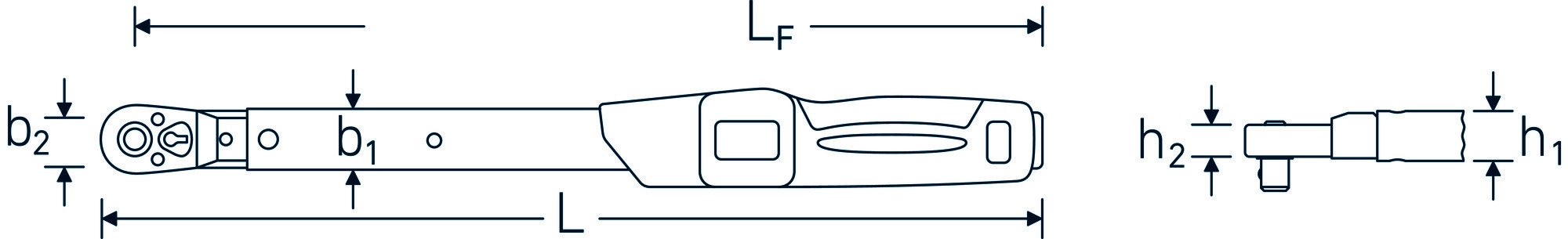

Product Dimension (Refer Image):

• Width b Size: 92mm
• b1 Size: 28mm
• b2 Size: 41mm
• H1 Size: 23mm
• H2 Size: 18mm
• LF: 438.5mm
