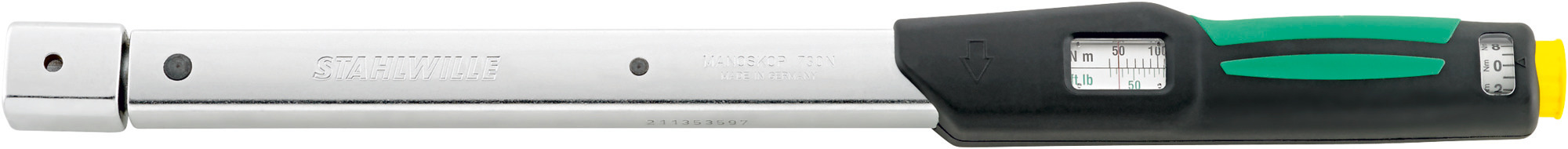

Stahlwille MANOSKOP Service Torque Wrench with Holder for Insert Tools, 80 - ST 96503080

The Service Torque Wrench is a versatile and reliable tool designed for precise torque applications in servicing and maintenance tasks. It is ideal for applications where accurate fastening or loosening of fasteners is required, ensuring optimal performance and safety. Made from high-quality materials, the Service Torque Wrench offers durability and longevity, making it suitable for both professional and DIY use.

Features:

• For work in serial production
• Adjustment knob can be unscrewed after setting the trigger torque - unintentional changing of the setpoint torque is thus prevented
• The included TORX Tamper Resistant fuse screw also protects against tampering as well as the included adhesive seals No adjustment possible without breaking the seal
• Triggering
• No reset to "0" required, since measuring element is only loaded during the tightening process
• Mount for interchangeable bits/sockets
• QuickRelease safety lock
• Fast, precise adjustment with QuickSelect quick adjustment
• Dual stop signal
• Easy to read double scale with color differentiation of Nm/ft.lb and ft.lb/in.lb respectively
• Counter-clockwise tightening by turning the bits/sockets
• Continued loading after triggering or loading against the operating direction, e.g. with screws that are stuck, does not affect the triggering mechanism, which is therefore protected from damage
• 2-component handle with hand-friendly green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
• Calibration with perfectControl calibration system No. 7794 or calibration device No. 7706. Where applicable Readjustment does not require disassembly
• Certificate in accordance with DIN EN ISO 6789-2:2017
• Includes sturdy plastic box (size 80-100 in sturdy steel box)
• Display deviation +/- 3%
• Value Lock (Tamper Resistant), The target torque can be quickly adjusted using the adjustment knob. The knob can then be removed to prevent subsequent adjustment. The supplied locking screw and an adhesive seal provide additional protection against tampering
• The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change
• Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
• Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use
• 2-Component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation
• Adjustment does not require disassembly, Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum and minimum values

Specifications:

• Fine Scale Division: 5 Nm
• Overall Height: 25.6mm
• Overall Length: 1178mm
• Measuring Range: 160 - 800 Nm
• Size: 80
• Size of Tool Holder Internal Square: 22 x 28mm
• Overall Weight: 10.57 lbs

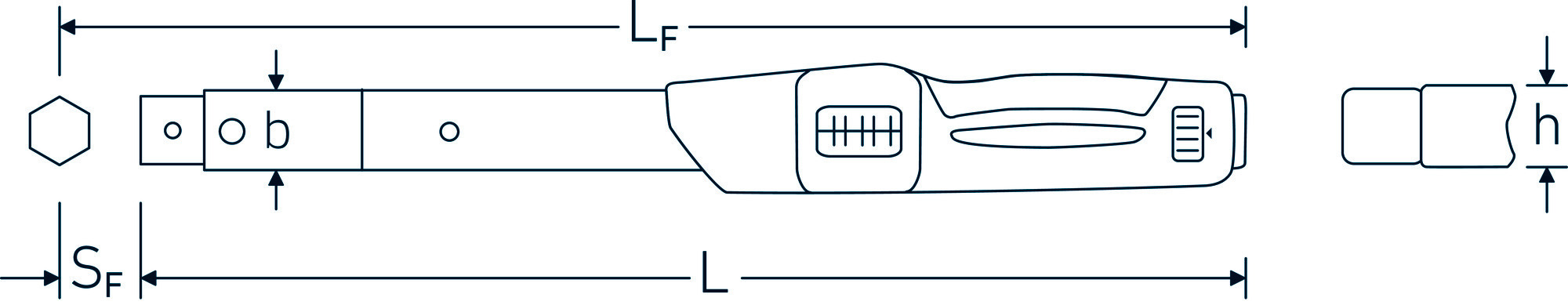

Product Dimension (Refer Image):

• Width b Size: 30.6mm
• SF: 55mm
• LF: 1167mm
