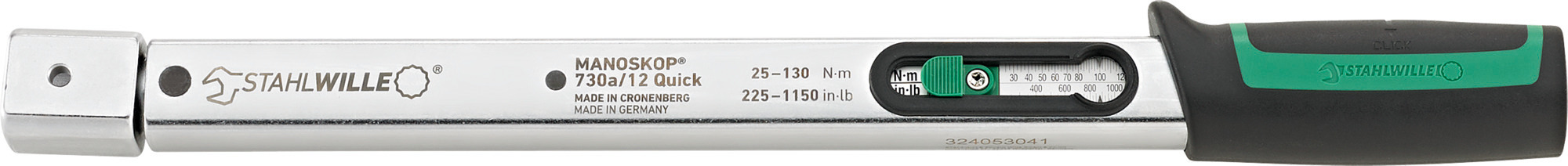

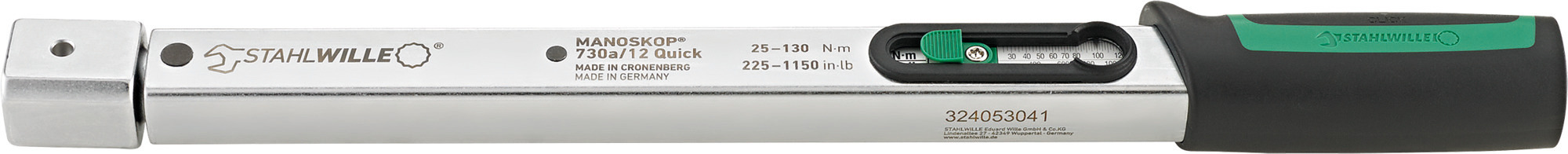

Stahlwille MANOSKOP Service Torque Wrench with Holder for Insert Tools, a/12 - ST 50584012
The Service Torque Wrench is a versatile and reliable tool designed for precise torque applications in servicing and maintenance tasks. It is ideal for applications where accurate fastening or loosening of fasteners is required, ensuring optimal performance and safety. Made from high-quality materials, the Service Torque Wrench offers durability and longevity, making it suitable for both professional and DIY use.
Features:
- Quick adjustment thanks to easy-to-operate clamping lever in handle
- Efficient. No resetting to "0" necessary, as measuring element is only loaded during the tightening process
- Ergonomically shaped, non-slip adjustment element with thumb recess and optimized ball handle for fatigue-free working
- Releasing torque wrench with receptacle for exchangeable plug-in tools, double stop signal (can be felt and heard), left-hand tightening by turning over the plug-in tools
- Calibration certificate, display deviation +/- 4 %
- Click-type
- the measuring element is only under load while force is being applied, no need for manual reset to zero
- Mount for interchangeable insert/shell tools
- QuickRelease safety lock (sizes 5-65)
- Rapid setting thanks to easy-action locking lever in the handle (sizes 5-65)
- Ergonomically designed, non-slip adjuster with a thumb recess
- Magnifying glass integrated in the display window
- Optimized convex handle for strain-free working
- Dual stop signal
- Twin scales Nm/ft.lb and Nm/in.lb (sizes 5-80)
- On request also available as an Nm-only version without twin scale (sizes 5-65)
- Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
- Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it
- Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Readjustment does not require disassembly
- Certificate in accordance with DIN EN ISO 6789-2:2017
- The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change
- Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
- Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use
- 2-Component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation
- Adjustment does not require disassembly, Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum and minimum values
Specifications:
- Overall Height: 23mm
- Overall Length: 410mm
- Measuring Range: 25 - 130 Nm
- Size: a/12
- Size of Tool Holder Internal Square: 14 x 18mm
- Overall Weight: 2.37 lbs

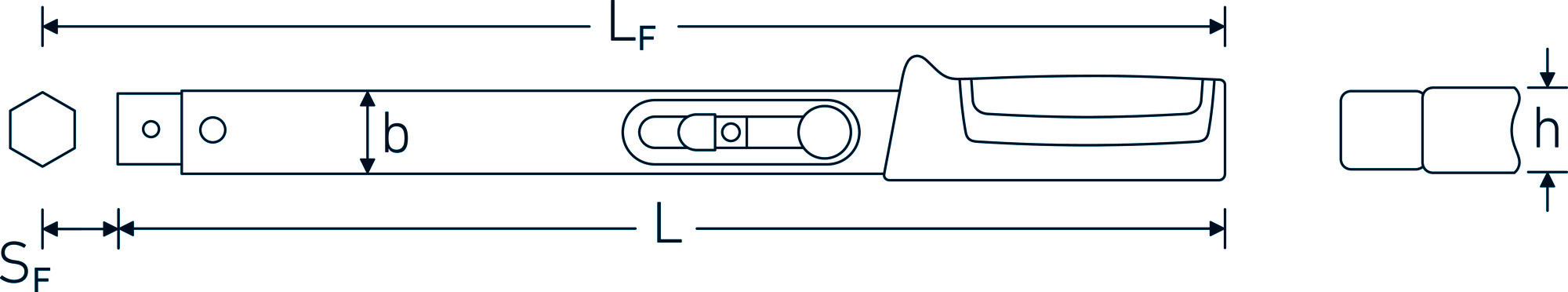

Product Dimension (Refer Image):
- Width b Size: 28mm
- SF: 25mm
- LF: 390mm
- Type:
- Service Torque Wrench
- Overall Height:
- 23mm
- Overall Length:
- 410mm
- Measuring Range:
- 25 - 130 Nm
- Size:
- a/12
- Size of Tool Holder Internal Square:
- 14 x 18mm
