Stahlwille

Stahlwille MANOSKOP Torque Wrench, 20 - ST 96504020

MSRP: $961.00
$557.38
( saved $403.62 )
No reviews yet Write a Review
SKU:
ST 96504020
UPC:
4018754269518
Availability:
Factory Stock (2)
  • Great Value

  • BEST PRICE

  • Safe Payments

  • Amazing Selection

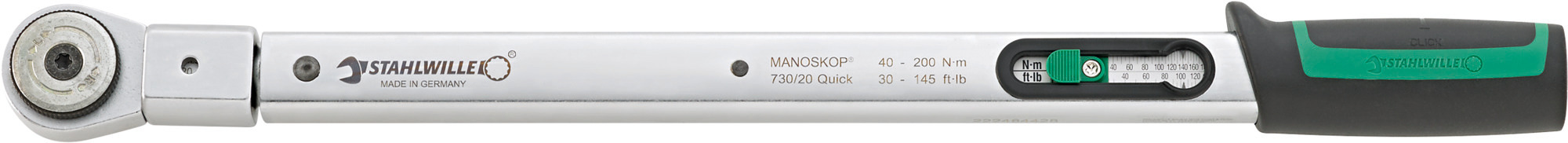

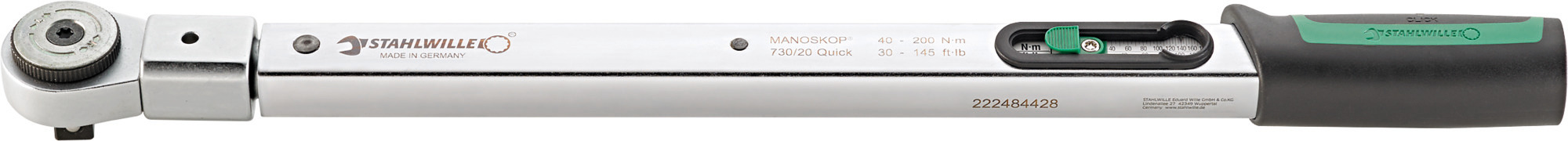

Stahlwille MANOSKOP Torque Wrench, 20 - ST 96504020

A Torque Wrench is a precision tool designed to apply a specific amount of torque to fasteners such as bolts and nuts. It ensures that fasteners are tightened to the manufacturer's recommended specifications, helping prevent over-tightening or under-tightening that could cause damage or failure. Torque wrenches are commonly used in automotive, construction, and industrial applications. They are available in various types, including click-type, dial-type, and electronic torque wrenches, to suit different tasks and preferences.

Features:

  • Releasing
  • No reset to "0" necessary, as measuring element is only loaded during the tightening process
  • Receptacle for interchangeable plug-in tools
  • QuickRelease safety lock
  • Flash adjustment by easy-to-operate clamping lever in the handle
  • Ergonomically shaped, non-slip adjustment element with thumb recess
  • Optimized ball handle for fatigue-free working
  • Double stop signal
  • Double scale Nm/ft-lb or Nm/in-lb
  • On request also available as Nm version only without double scale
  • Left-hand tightening by turning over the plug-in tools
  • Further loads after releasing or loads against the functional direction, e.g. with stuck screws, do not affect the releasing mechanism, which is thus protected against damage
  • Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly
  • Certificate according to DIN EN ISO 6789-2:2017
  • Display deviation +/- 4 %
  • Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use

Specifications:

  • External Square Drive: 1/2 in
  • Overall Height: 55mm
  • Overall Length: 530mm
  • Measuring Range: 40 - 200 Nm
  • Size: 20
  • Size of Tool Holder Internal Square: 14 x 18mm
  • Overall Weight: 3.58 lbs
  • Width b Size: 55mm
  • LF: 435mm
Type:
Torque Wrench
External Square Drive:
1/2"
Overall Height:
55mm
Overall Length:
530mm
Measuring Range:
40 - 200 Nm
Size:
20
Size of Tool Holder Internal Square:
14 x 18mm
