Stahlwille MANOSKOP Torque Wrench with Dial Gauge and Holder for Shell Tools - ST 50030080
A Torque Wrench is a precision tool designed to apply a specific amount of torque to fasteners such as bolts and nuts. It ensures that fasteners are tightened to the manufacturer's recommended specifications, helping prevent over-tightening or under-tightening that could cause damage or failure. Torque wrenches are commonly used in automotive, construction, and industrial applications. They are available in various types, including click-type, dial-type, and electronic torque wrenches, to suit different tasks and preferences.
Features:
- Indicating type
- Mount for interchangeable shell tools
- All 14 x 18 mm insert tools can also be used with insert tool adaptor No 7370/80 (max. 650 Nm)
- Trailing pointer dial
- twin scales Nm/ft.lb
- Scale is made of luminescent light yellow special film enabling clear readings even in poor light conditions
- Handle with integrated force compensator
- Measuring element is a bending plate housed in the handle
- Overload protection
- Can be applied for either clockwise or anticlockwise tightening by turning the wrench over
- Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Supplied in textile bag
- Display deviation value +/- 4%
- display deviation value +/- 4%
- Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
- Adjustment does not require disassembly, Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum an minimum values
Specifications:
- Overall Height: 24mm
- Overall Length: 1048mm
- Measuring Range: 160 - 800 Nm
- Size of Tool Holder Internal Square: 14 x 18mm
- Overall Weight: 5.07 lbs

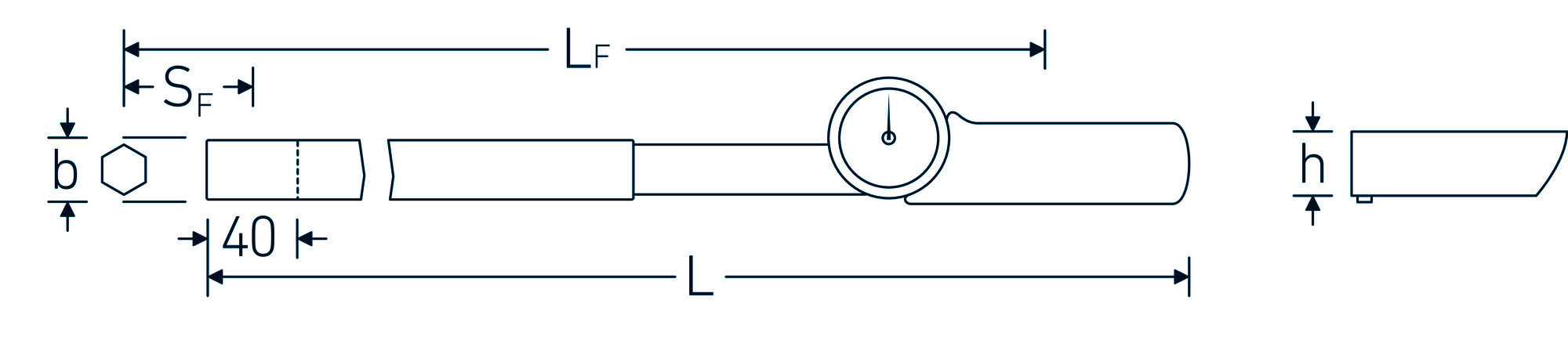

Product Dimension (Refer Image):
- Width b Size: 28mm
- SF: 95mm
- LF: 1050mm
- Type:
- Torque Wrench
- Overall Height:
- 24mm
- Overall Length:
- 1048mm
- Measuring Range:
- 160 - 800 Nm
- Size of Tool Holder Internal Square:
- 14 x 18mm
