Stahlwille MANOSKOP VDE Torque Wrench, 2.5 - ST 96550125

MSRP: $1,486.80
$862.34
( saved $624.46 )
No reviews yet Write a Review
SKU:
ST 96550125
UPC:
4018754271894
Availability:
Call for Availability
  • Great Value

  • BEST PRICE

  • Safe Payments

  • Amazing Selection

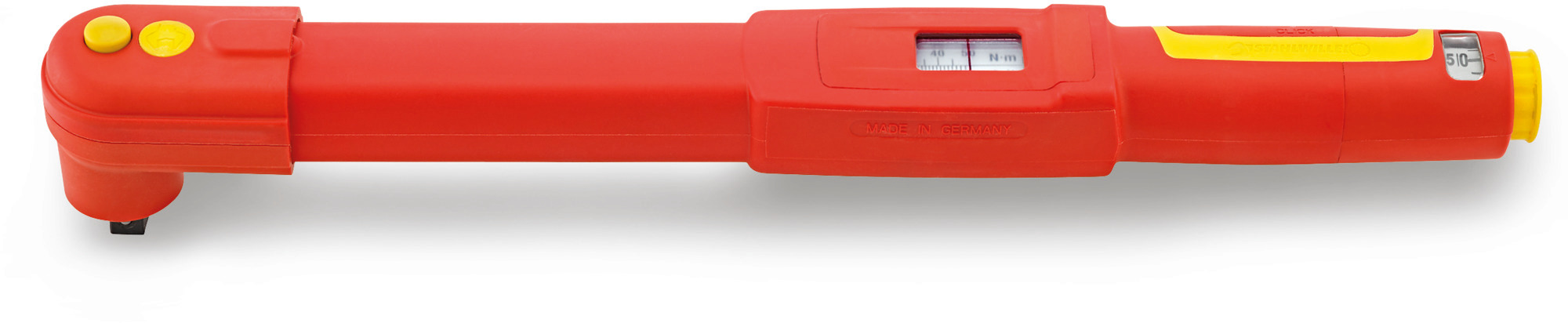

Stahlwille MANOSKOP VDE Torque Wrench, 2.5 - ST 96550125

A VDE Torque Wrench is a high-precision tool designed for safely applying the correct amount of torque to fasteners in electrical and high-voltage applications. VDE (Verband der Electrotechnics) certified torque wrenches are tested to meet safety standards for working on live electrical components, providing protection up to 1000 volts. These wrenches are essential for professionals working in electrical maintenance, automotive, and industrial settings, ensuring safety while maintaining accuracy and reliability.

Features:

  • Mechanically setting/clicking torque wrench for controlled screw tightening
  • The special plastic sheath of the MANOSKOP 730R VDE offers reliable protection for safe and efficient work at voltages of up to 1,000 volts
  • Low-wear triggering system with flexible rod ensures consistently correct and reliable measurement results
  • Re-adjustment on your own is possible without disassembly and the associated re-testing of the torque wrench insulation
  • Change the ratchet adapter without checking the insulation again
  • Tactile dual stop signal
  • 3/8" Ratchet adapter
  • Replace the ratchet adapter 725QR VDE without having to check the insulation again
  • QuickRelease safety lock
  • Fast, precise adjustment with QuickSelect quick adjustment
  • Double insulation allows to work at voltages of up to 1,000 while compliant with VDE (in line with IEC 60900)
  • An insulation made from glass fiber-reinforced polyamide plastic, which is resistant to fluids that often occur in working environments, such as alkaline solutions, fuels or oils

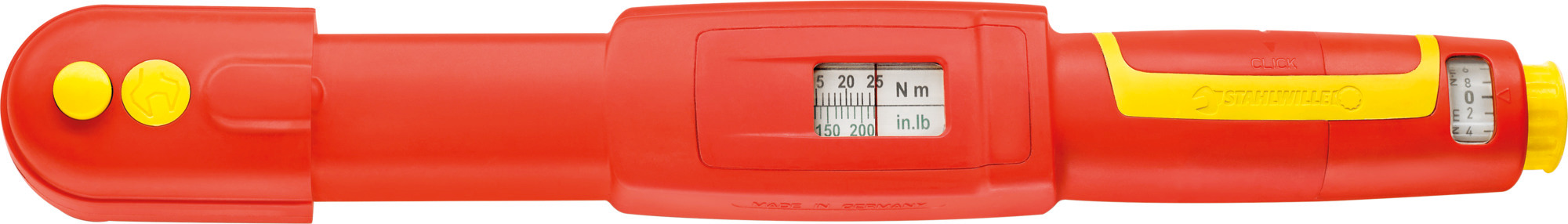

  • Easy to read double scale with color differentiation of Nm/ft.lb
  • No reset to "0" required, since measuring element is only loaded during tightening
  • Low-wear triggering mechanism
  • Readjustment without disassembly and without checking the insulation again
  • Calibration certificate in accordance with DIN EN ISO 6789-2:2017
  • Display deviation +/- 3%
  • The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change
  • Factory calibration certificate (ISO calibration) - torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment
  • Low-wear flexible rod system, torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to "0" after use
  • Adjustment does not require disassembly - The VDE torque wrenches have two setting points for the upper and lower value, which allows for easy adjustment from the outside without requiring disassembly of the tool. This also means there is no need to check the insulation again
  • Triggering dual stop signal - The MANOSKOP provides a clearly noticeable dual stop signal when the set value is reached
  • Precise fine adjustment, Thanks to QuickSelect, the target torque is set in no time at all. It is also extremely accurate, as it can be read off in very precise increments on the secondary fine scale
  • Exchangeable ratchet adaptor, The STAHLWILLE MANOSKOP 730R VDE is the only insulated torque wrench on the market where the insert ratchet (9 x 12 mm, 3/8") can be replaced without the need for a new insulation test thanks to a mount for interchangeable insert tools (9 x 12 mm, 3/8")
  • Insulating plastic sheath - The special plastic sheath of the MANOSKOP 730R VDE reliably protects up to 1,000 volts. It is also non-slip, abrasion-resistant and resistant to diluted alkaline solutions, hydrocarbons, fuels and oils

Specifications:

  • External Square Drive: 3/8 in
  • Fine Scale Division: 0.2 Nm
  • Overall Length: 337mm
  • Measuring Range: 4 - 25 Nm
  • Size: 2,5
  • Size of Tool Holder Internal Square: 9 x 12mm
  • Overall Weight: 2.27 lbs

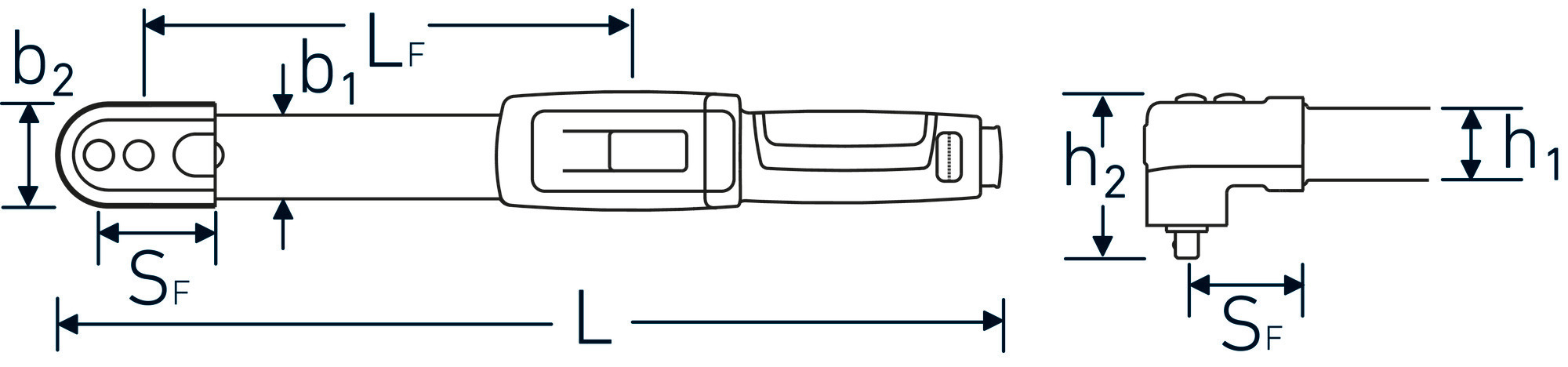

Product Dimension (Refer Image):

  • b1 Size: 35mm
  • b2 Size: 45mm
  • H1 Size: 30mm
  • H2 Size: 56mm
  • SF: 28mm
  • LF: 253.5mm
Type:
VDE Torque Wrench
External Square Drive:
3/8"
Fine Scale Division:
0.2 Nm
Overall Length:
337mm
Measuring Range:
4 - 25 Nm
Size:
2,5
Size of Tool Holder Internal Square:
9 x 12mm
